Wall washer

Symmetric upward · Asymmetric downward

	LED					A	B	C
33 394	35.8W			4838 lm		9 ¾	6 ¼	7 ¾

Options

MGU - Marine grade undercoat
RAL - RAL finish
CUS - Custom finish

Downloads

Spec sheet
IES files
Photometric summary
Submittal drawing (DXF)
Submittal drawing (PDF)
Revit BIM model
Installation instructions
Download all
Estimated Lead-Time

Technical Specs

Technical Specs

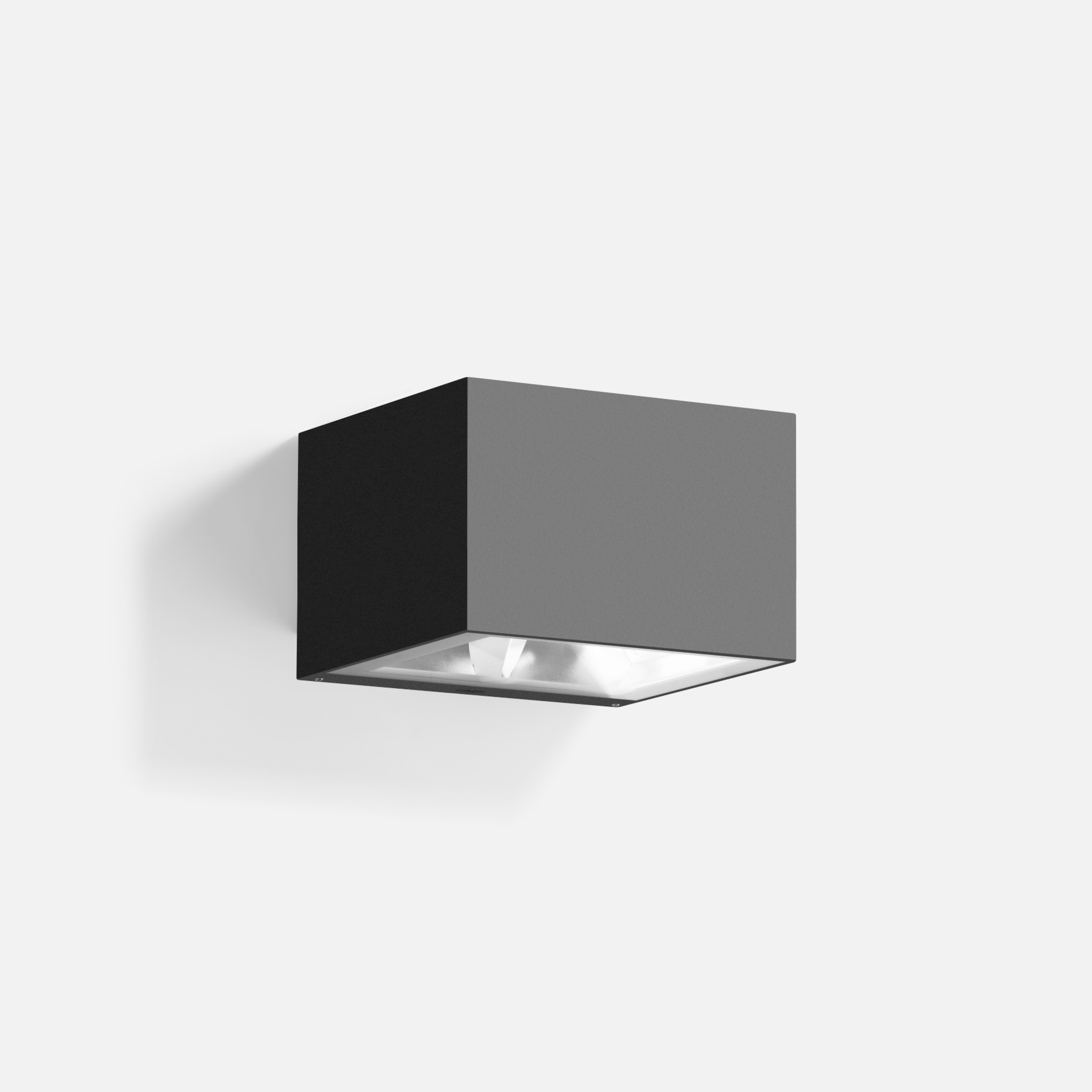

Wall washer
Light emission on two sides

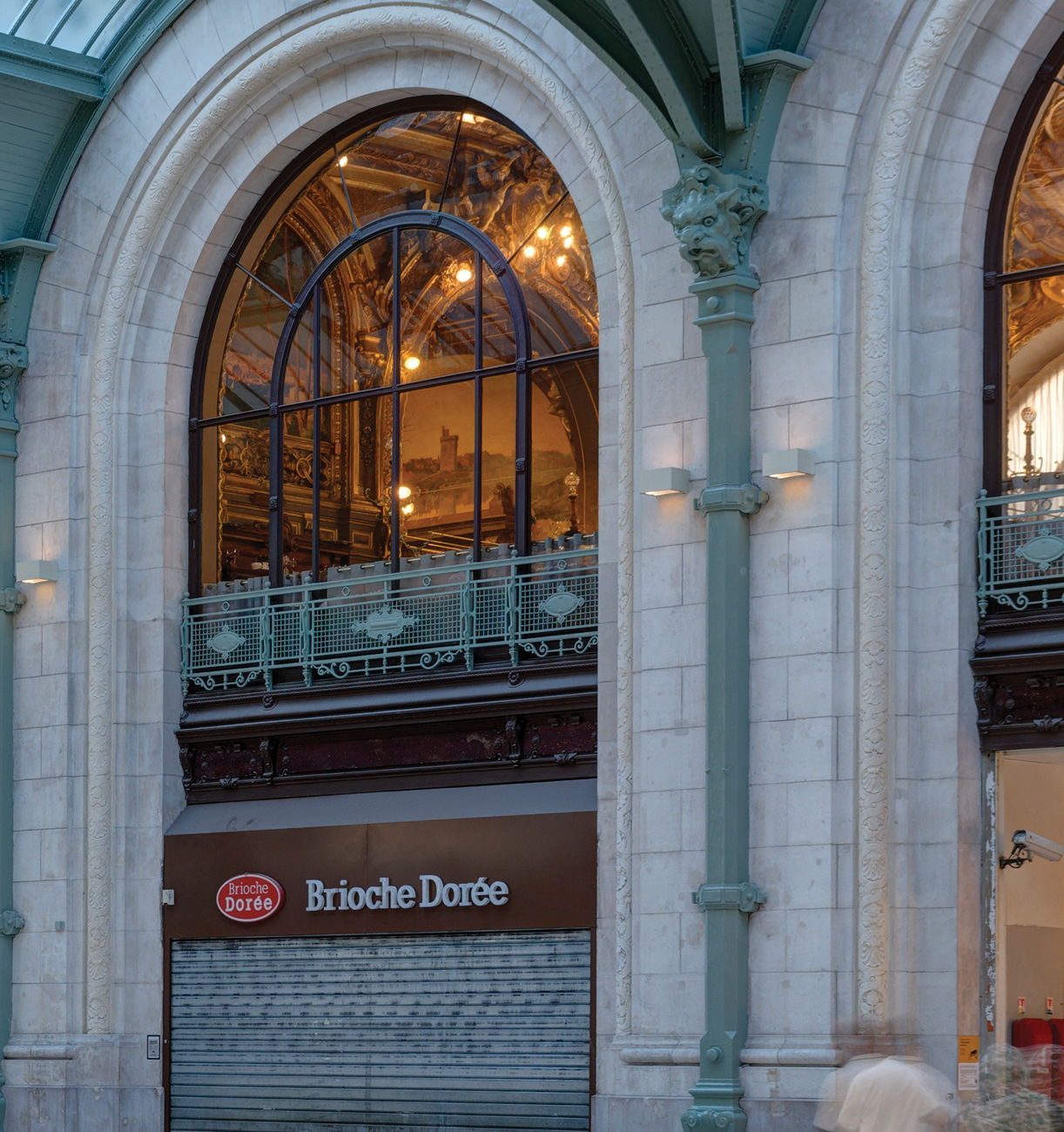

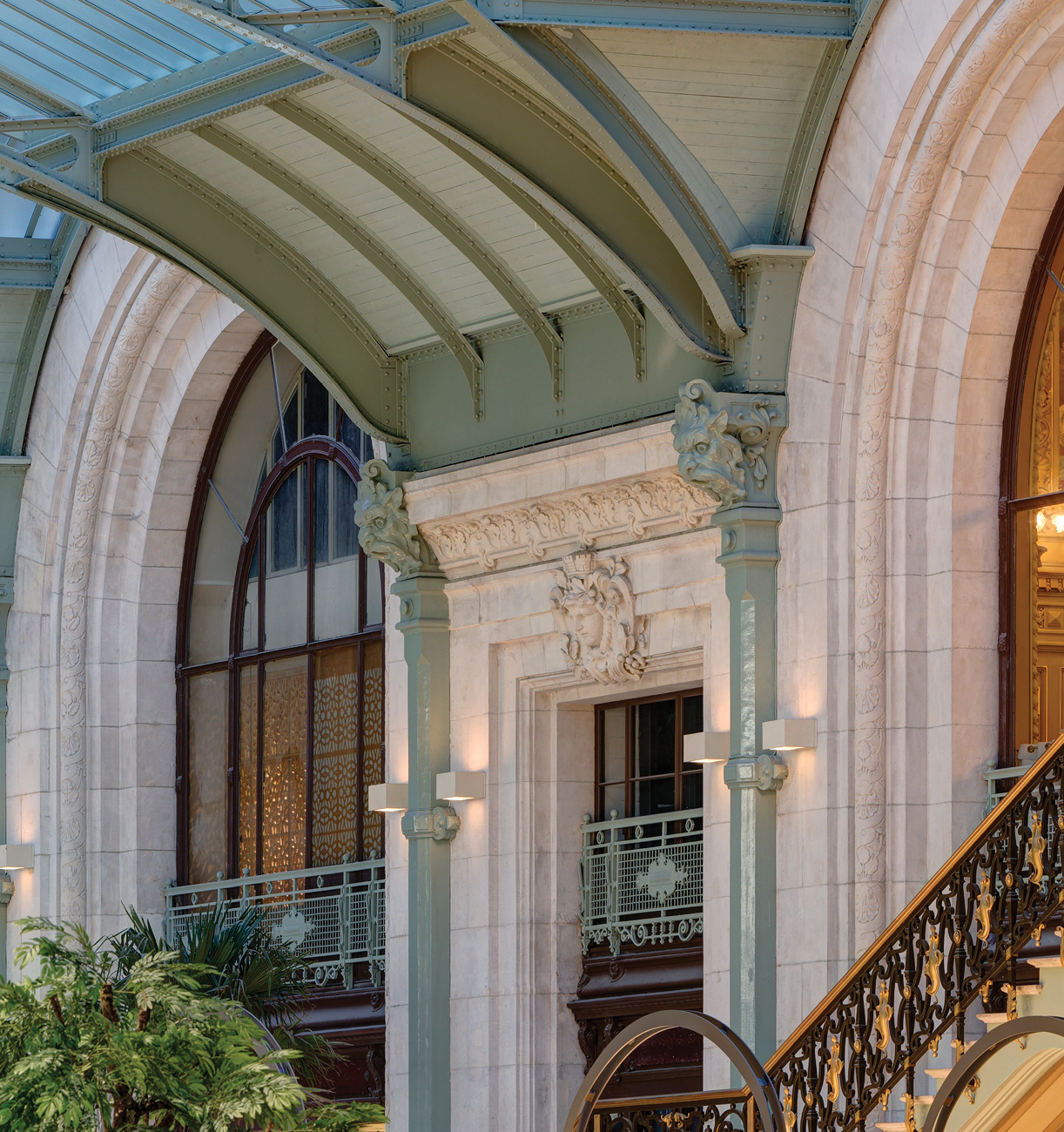

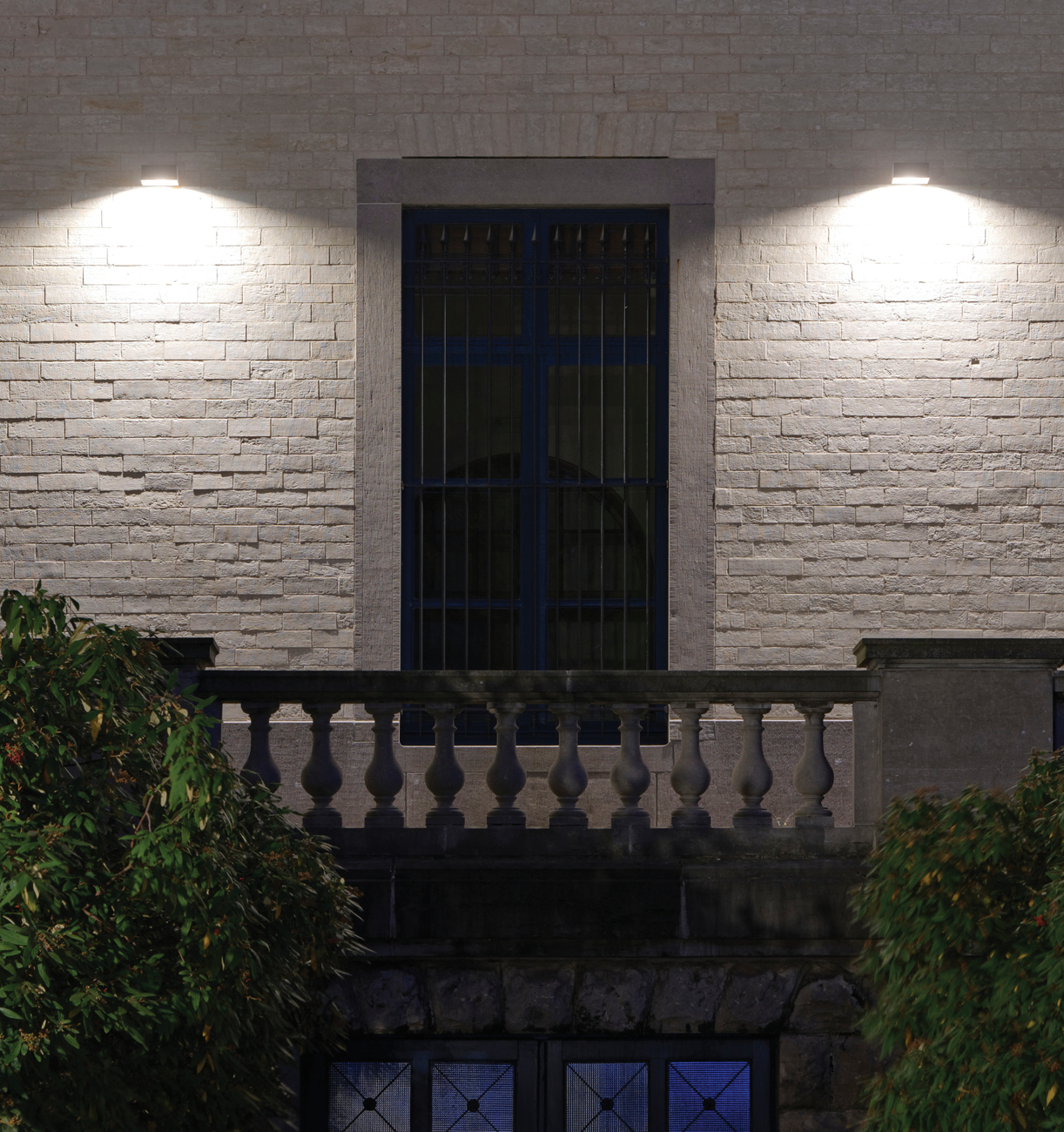

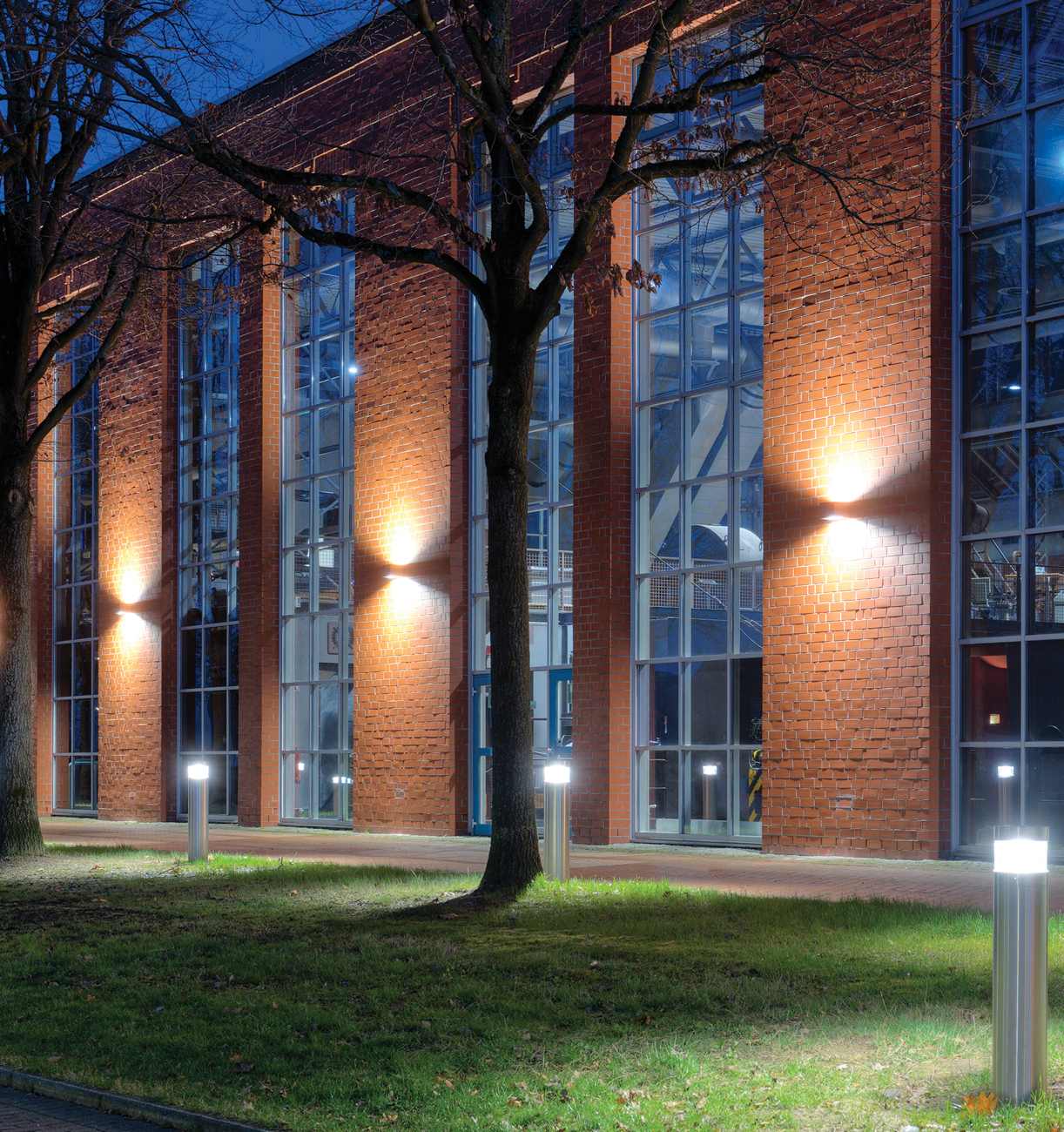

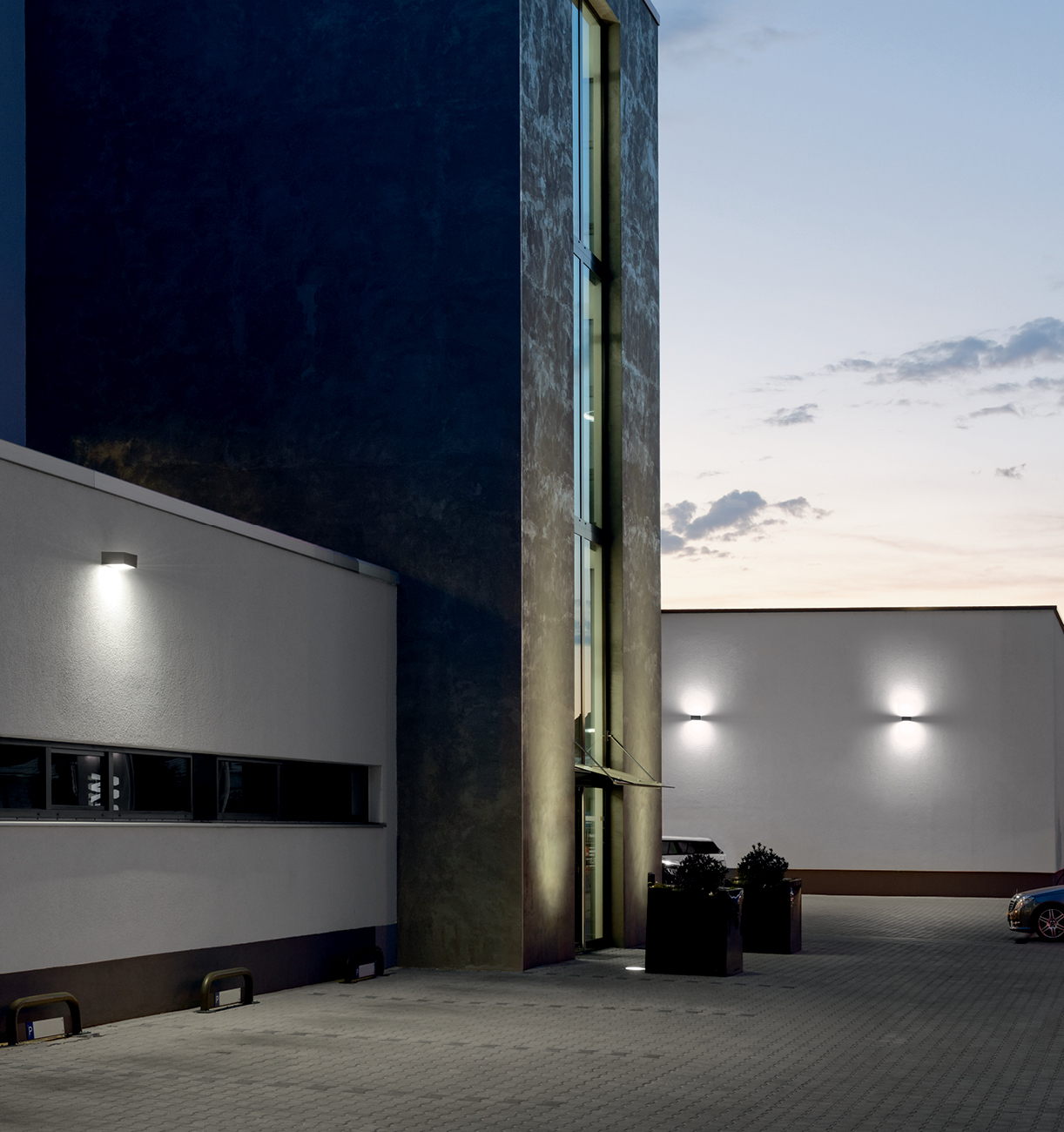

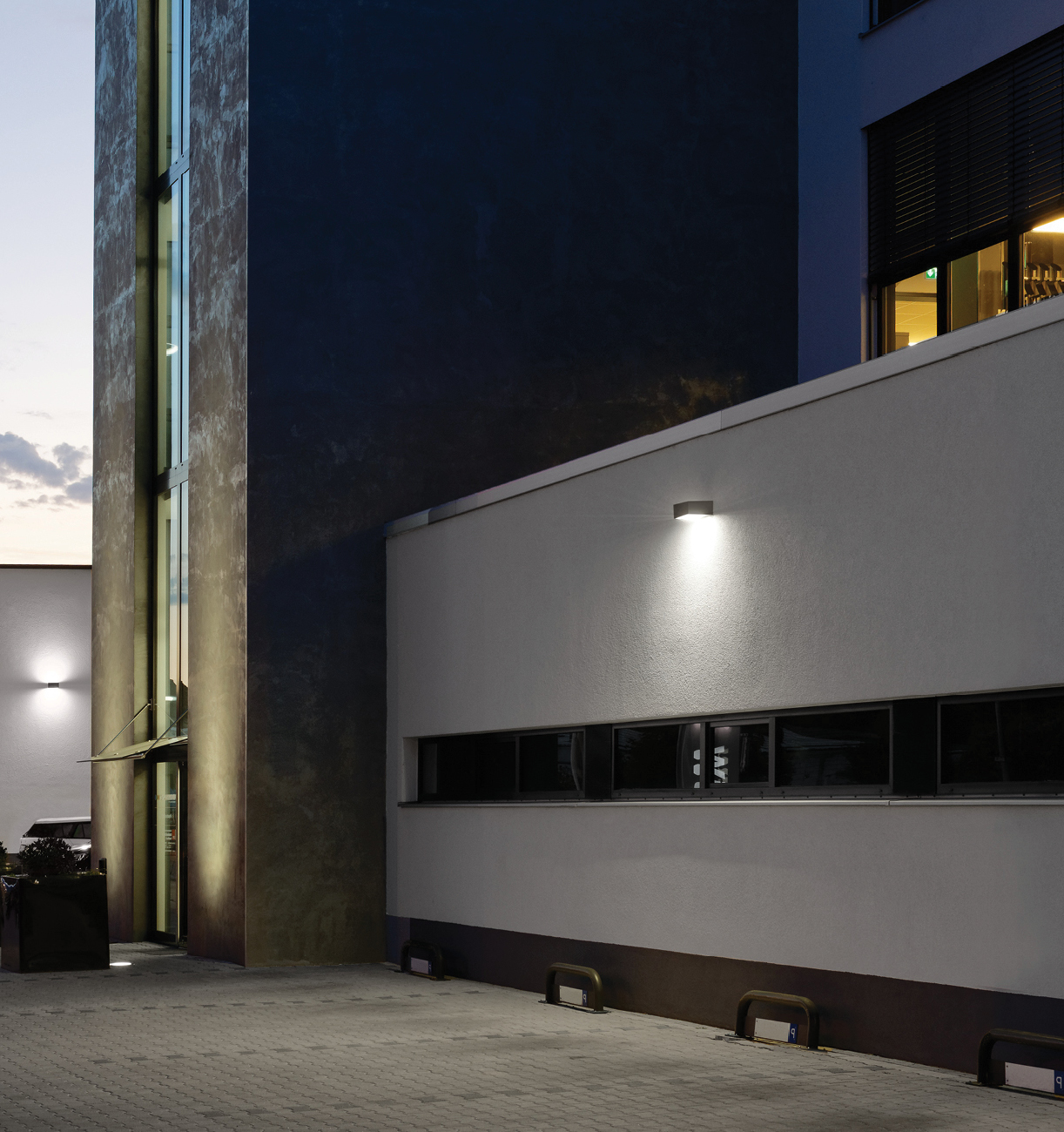

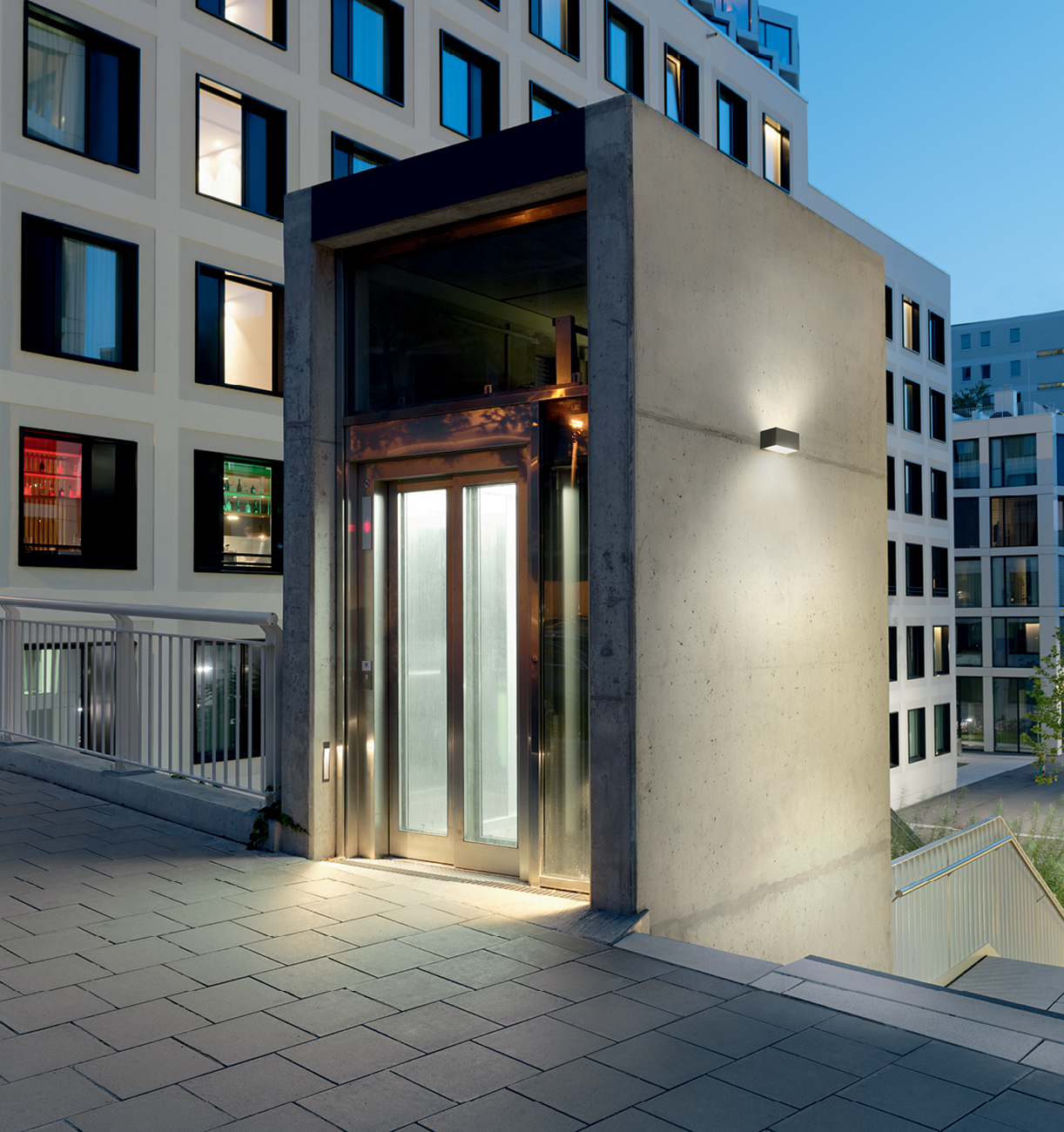

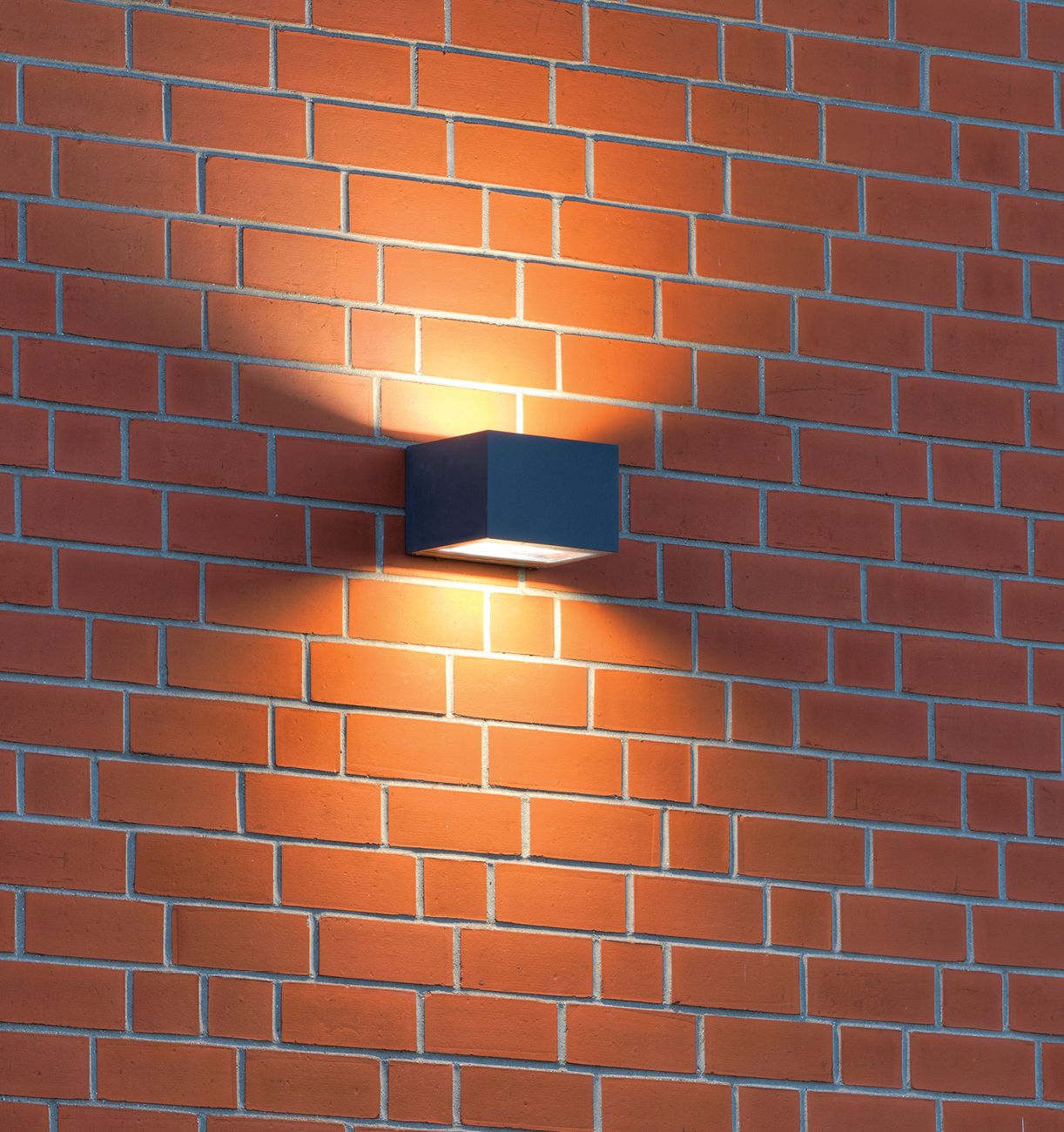

A series of LED wall mounted luminaires with symmetrical, asymmetrical, or wide spread light distribution on two sides. Light distribution in the upward direction is always symmetrical. Symmetrical light distribution is used to illuminate facade and wall surfaces, with the installation surface also acting as the reflection surface. Asymmetrical light distribution to illuminate ceiling or ground surfaces in front of the mounting surface. Wide spread light distribution to illuminate ground surfaces along walls.
Die-cast aluminum · Safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
