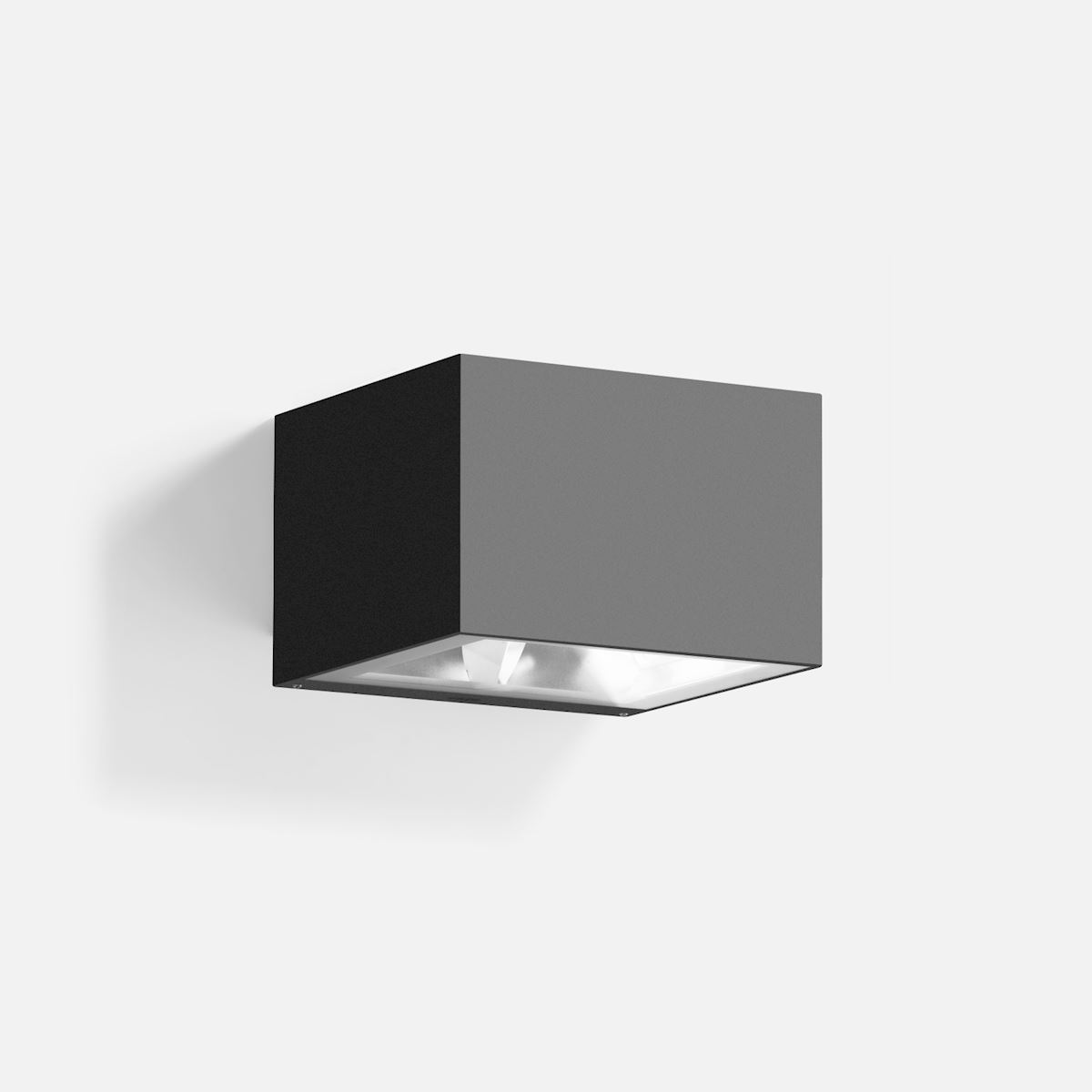

Wall washer

Light emission on two sides

Symmetric upward · Lateral throw downward

  LED   A B C
33 393 50.6W 4773 lm
9 ¾
6 ¼
7 ¾
33 379 70.0W 8963 lm
12
7
8

Symmetric upward · Asymmetric downward

  LED   A B C
33 394 35.8W 4838 lm
9 ¾
6 ¼
7 ¾
33 387 86.8W 9263 lm
12
7
8

Symmetric upward · Symmetric downward

  LED   A B C
33 395 35.8W 5243 lm
9 ¾
6 ¼
7 ¾
33 389 86.8W 9740 lm
12
7
8

Wall washer
Light emission on two sides

A series of LED wall mounted luminaires with symmetrical, asymmetrical, or wide spread light distribution on two sides. Light distribution in the upward direction is always symmetrical. Symmetrical light distribution is used to illuminate facade and wall surfaces, with the installation surface also acting as the reflection surface. Asymmetrical light distribution to illuminate ceiling or ground surfaces in front of the mounting surface. Wide spread light distribution to illuminate ground surfaces along walls.
Die-cast aluminum · Safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
