Edge-lit pole-top luminaire

Symmetric

	LED					A	B
84 147	46.4W			4734 lm		29 ½	32 ½

Options

DALI - Digital addressable lighting interface
FSC - Fusing
MGU - Marine grade undercoat
RAL - RAL finish
CUS - Custom finish

Recommended Poles

Downloads

Spec sheet
IES files
Photometric summary
Submittal drawing (DXF)
Submittal drawing (PDF)
Revit BIM model
Installation instructions
Download all
Estimated Lead-Time

Technical Specs
Photography

Technical Specs

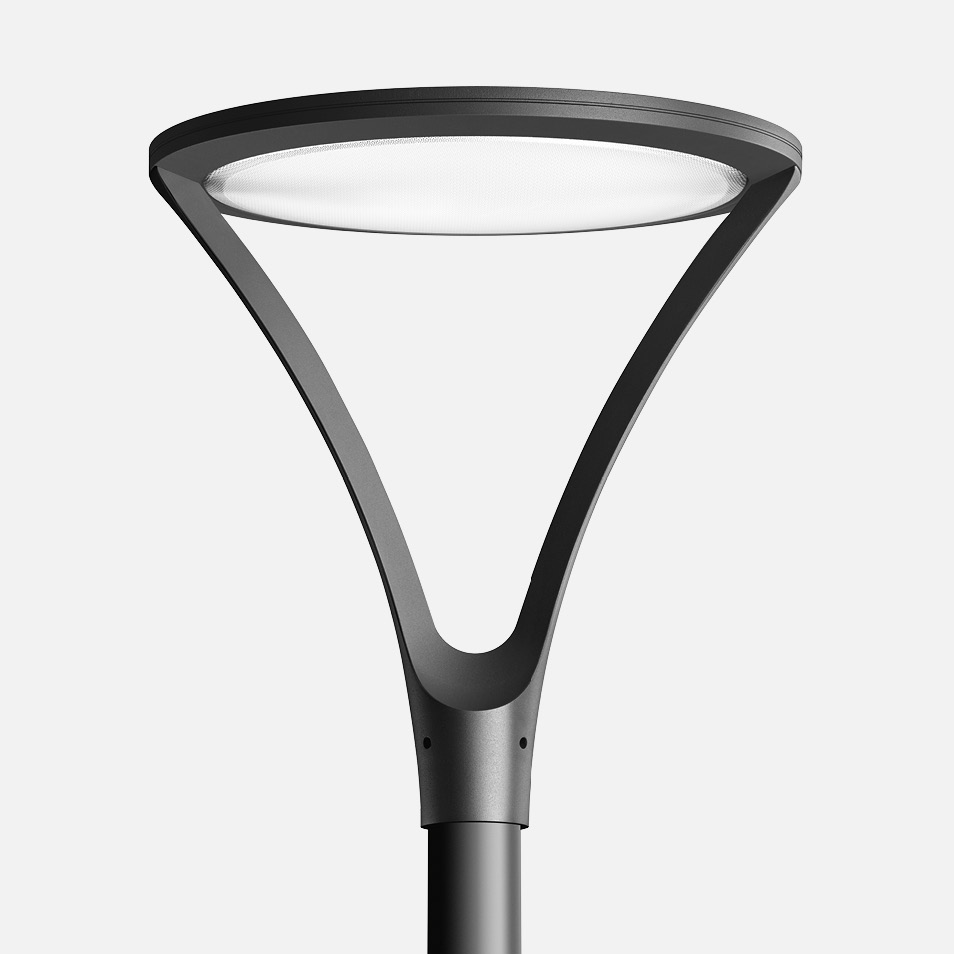

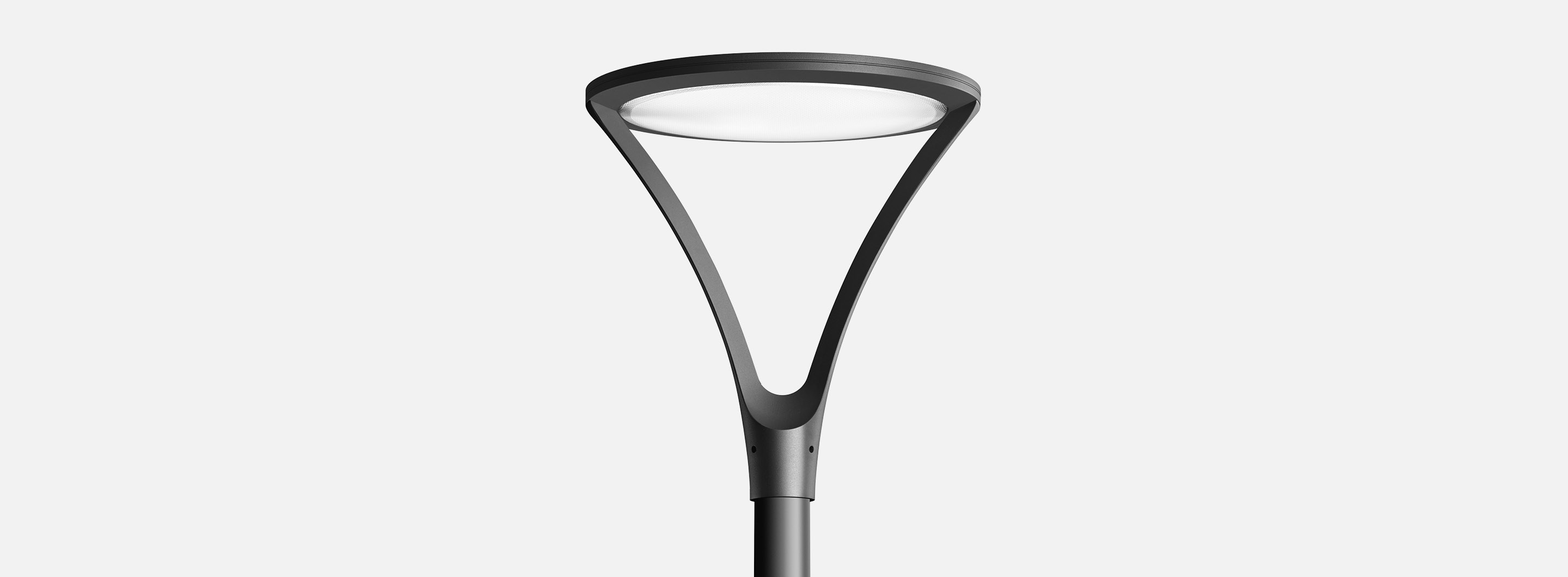

Edge-lit pole-top luminaire
Symmetric and asymmetric

A series of LED pole top luminaires with symmetrical or asymmetrical wide beam light distribution. The very shallow profile of the optical housing is made possible by advancements in LED technology. The symmetrical light distribution is ideal for illuminating squares, plazas and other open areas while the asymmetric wide spread light distribution is ideal for illuminating streets and pathways.
Die-cast aluminum · Clear acrylic diffuser with optical texture · Reflector made of pure anodized aluminum.
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
