Edge-lit pole-top luminaire

Symmetric and asymmetric

Asymmetric

  LED   A B
84 121 23.6W 2297 lm
20
22 ¼
84 148 47.2W 4557 lm
29 ½
32 ½
84 306 100.8W 8978 lm
29 ½
32 ½

Symmetric

  LED   A B
84 120 24.0W 2464 lm
20
22 ¼
84 147 46.4W 4734 lm
29 ½
32 ½
84 305 100.8W 9373 lm
29 ½
32 ½

Edge-lit pole-top luminaire
Symmetric and asymmetric

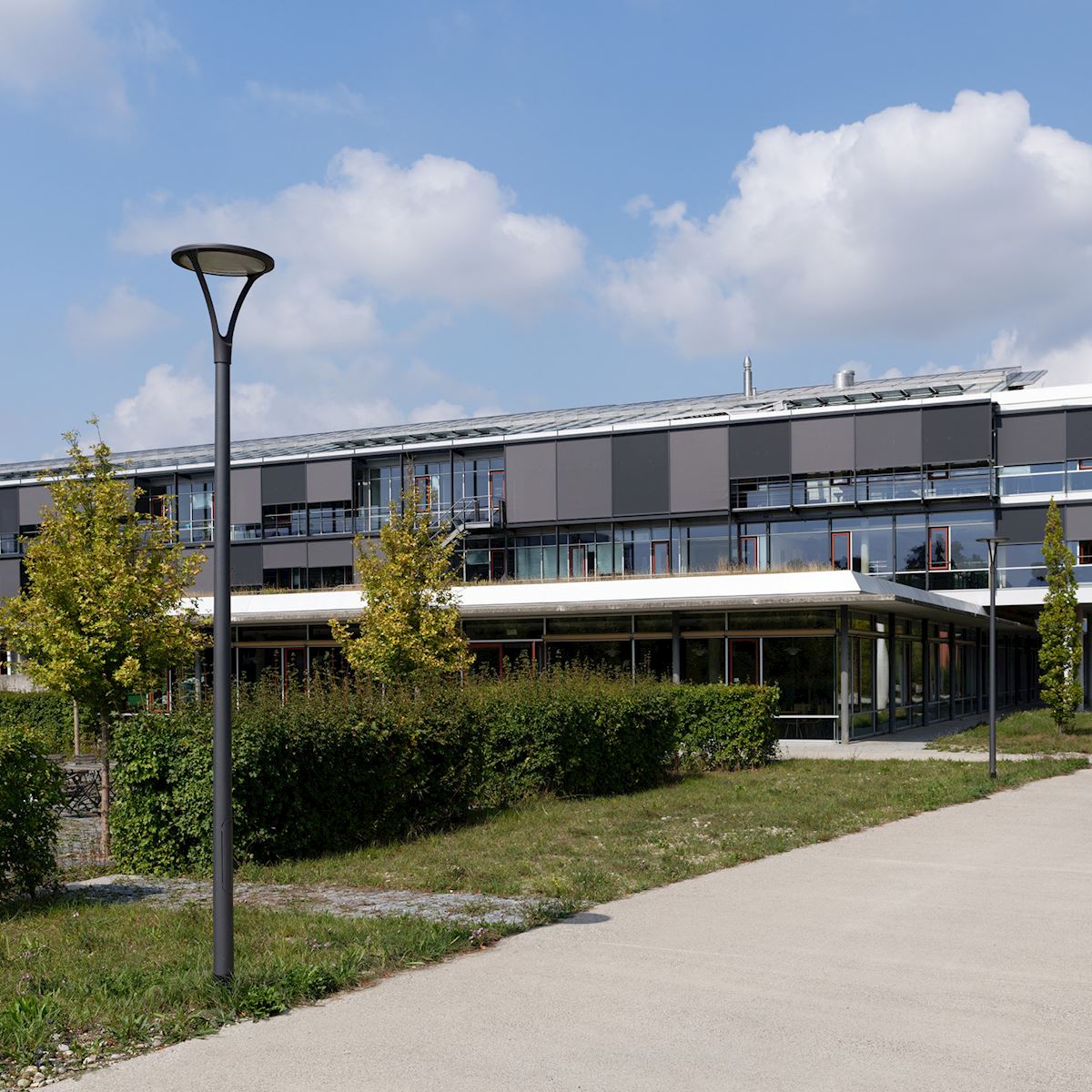

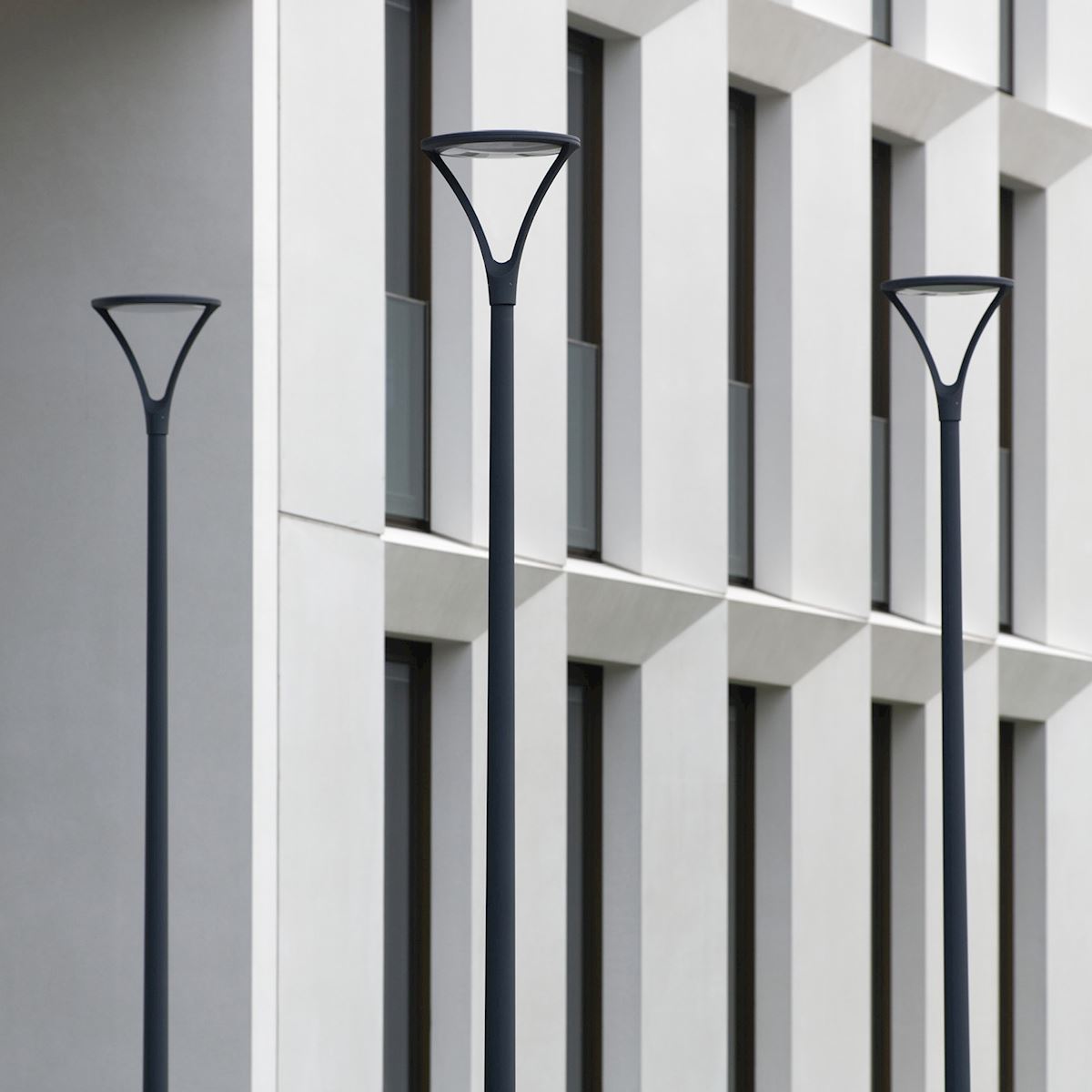

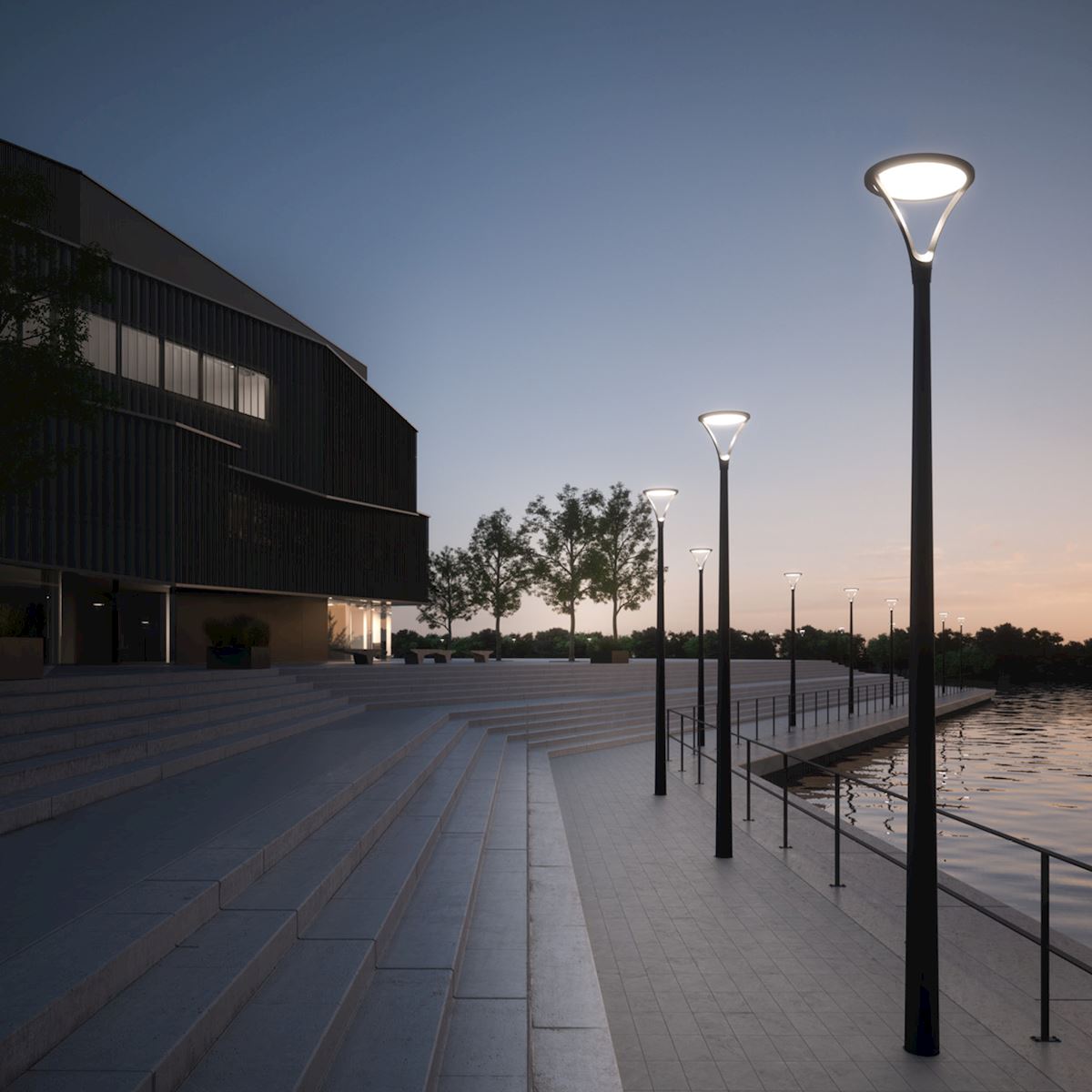

A series of LED pole top luminaires with symmetrical or asymmetrical wide beam light distribution. The very shallow profile of the optical housing is made possible by advancements in LED technology. The symmetrical light distribution is ideal for illuminating squares, plazas and other open areas while the asymmetric wide spread light distribution is ideal for illuminating streets and pathways.
Die-cast aluminum · Clear acrylic diffuser with optical texture · Reflector made of pure anodized aluminum.
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
