Area/Roadway luminaire

Outrigger arm

Asymmetric wide beam · Single

  LED   A B C
77 950 50.6W 4530 lm
10 ¼
2 ¼
69

Asymmetric wide beam · Twin

  LED   A B C
77 953 (2) 50.6W 9060 lm
10 ¼
2 ¼
138

Area/Roadway luminaire
Outrigger arm

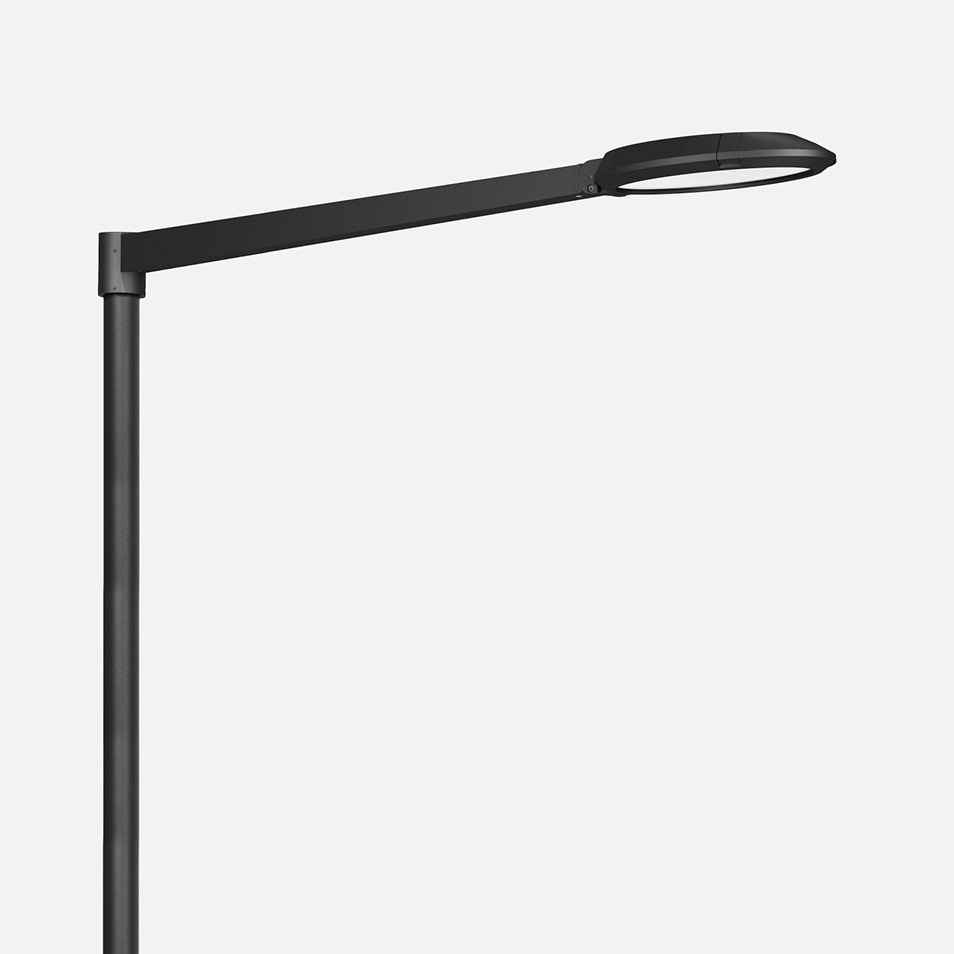

A series of single and twin LED Area/Roadway luminaires with asymmetrical wide spread light distribution and outrigger arm. This family of luminaires is designed specifically to illuminate streets, squares, access roads and pedestrian zones with maximum glare control and minimal spill light.
Die-cast and extruded aluminum · Clear safety glass with anti-reflective coating for increased transmission · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 66
