Square downlight

BEGA Vortex Optics®

Narrow beam

  LED   A B C
24 800 3.0W 339 lm
4
2
4
24 801 8.4W 605 lm
4
2
4
24 802 17.8W 1295 lm
6
4 ½
5
24 803 33.6W 2391 lm
7 ½
4 ½
7

Wide beam

  LED   A B C
24 804 3.0W 406 lm
4
2
4
24 805 8.4W 815 lm
4
2
4
24 806 17.8W 1706 lm
6
4 ½
5
24 807 33.6W 3423 lm
7 ½
4 ½
7

Asymmetric

  LED   A B C
24 812 3.0W 325 lm
4
2
4
24 813 8.4W 717 lm
4
2
4
24 814 17.8W 1580 lm
6
4 ½
5
24 815 33.6W 2499 lm
7 ½
4 ½
7

Square downlight
BEGA Vortex Optics ®

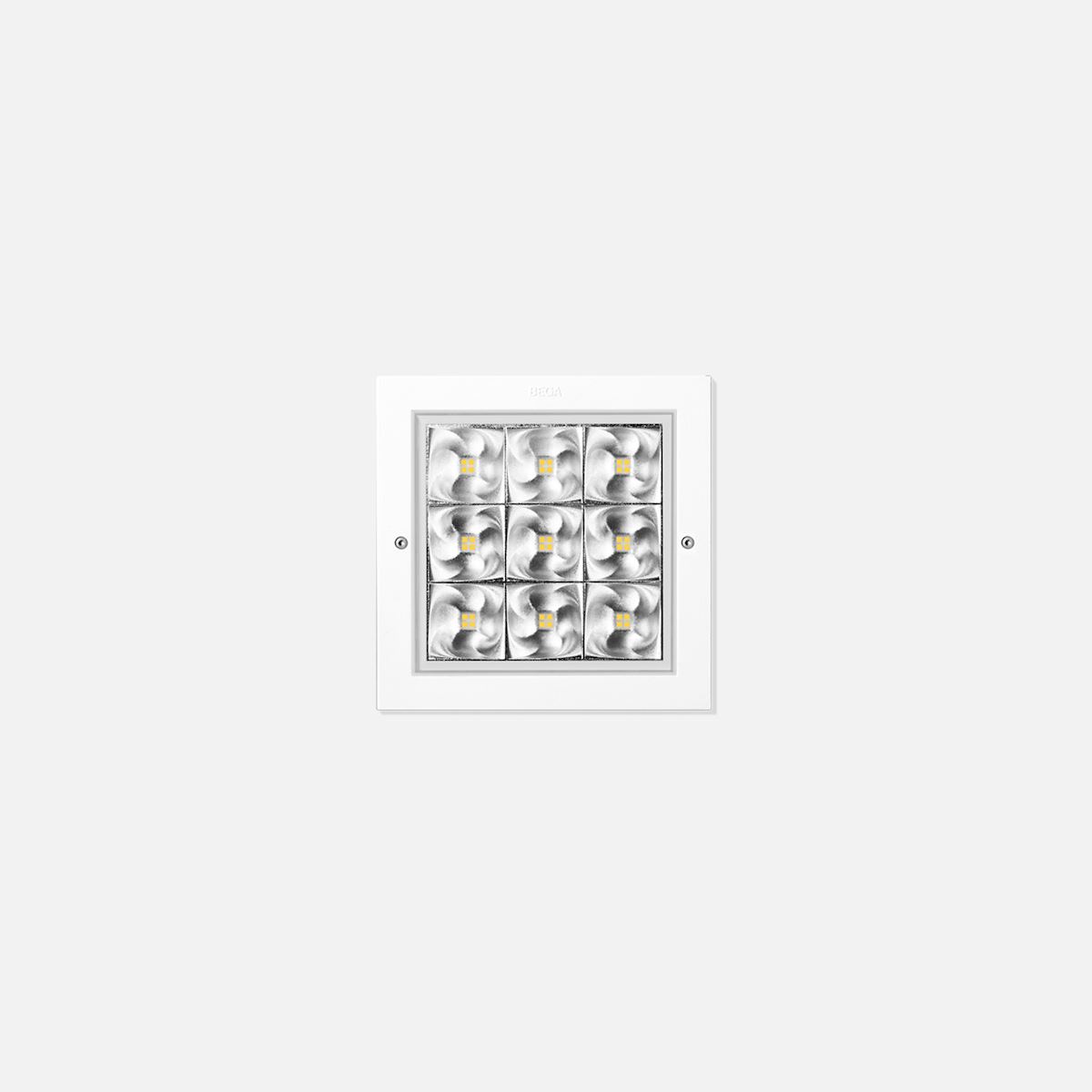

A series of LED recessed ceiling luminaires with symmetrical narrow, symmetrical wide, or asymmetrical wide beam light distribution.
The patent pending ‘vortex reflector’ rotates a parabolic reflector around the vertical axis to form a complex vortex shape.
This vortex balances maximum efficiency with optimal glare control while eliminating shadows and artifacts in a uniquely square distribution.
Die-cast aluminum housing optical assembly and trim ring
Clear safety glass · Reflector surface made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
