Downlight

Asymmetric wall washer
Asymmetric wall washer
  LED     β A B C
24 512 11.5W 1251 lm 64° x 67°
9 ⅝
7 ⅝
5 ⅜
Options
  • BB24496 - Installation housing, concrete with plaster (replaces included installation housing, pre-shippable)
Included (available for pre-shipment)
  • BB24482 - Installation housing, concrete only

Downloads

  • Spec sheet
  • IES files
  • Photometric summary
  • Submittal drawing (DXF)
  • Submittal drawing (PDF)
  • Revit BIM model
  • Installation instructions
  • Download all
  • Estimated Lead-Time

Downlight
Asymmetric wall washer

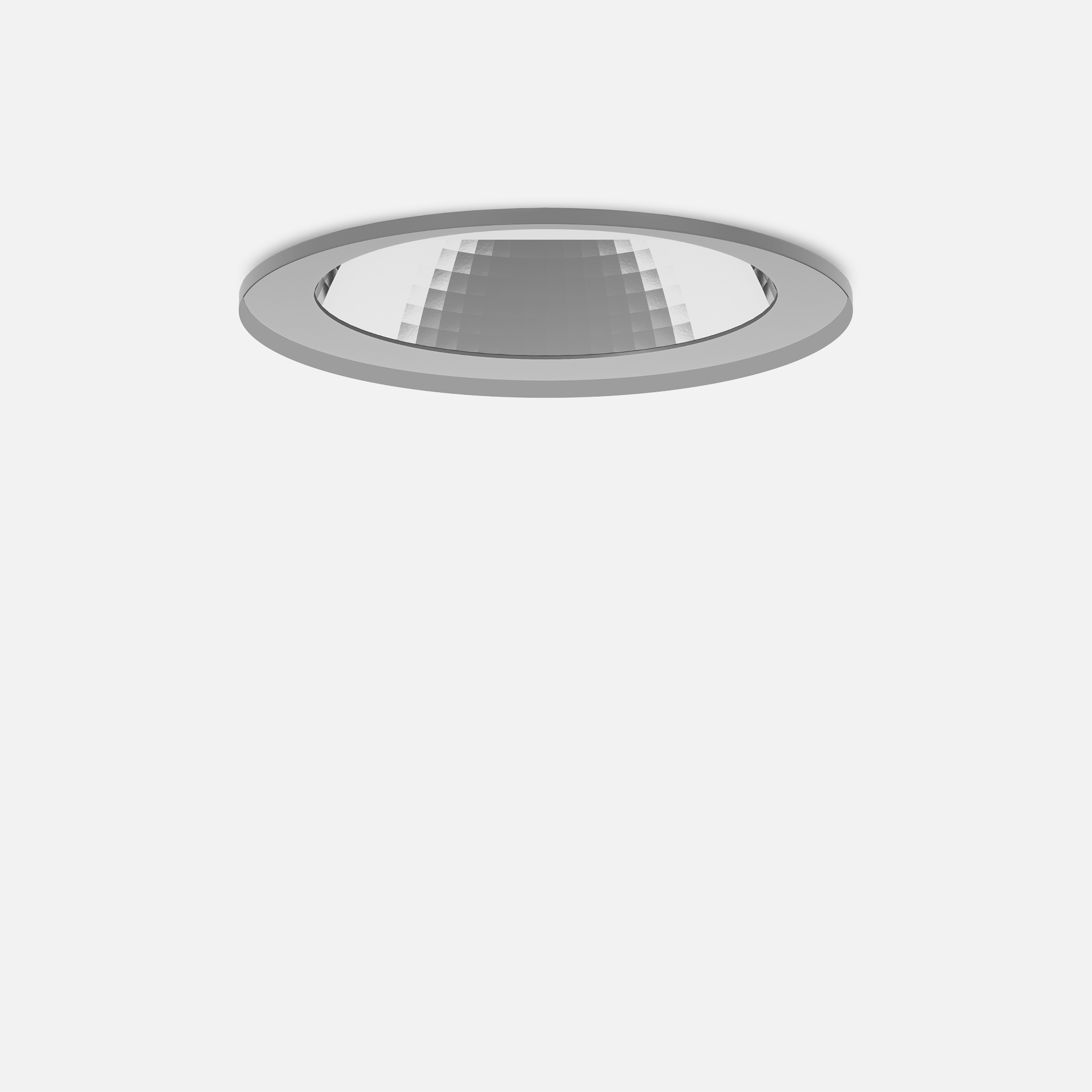

Flush-mounted downlights create a very clean ceiling appearance for atriums, canopies, and other interior and exterior locations. Designed for use in pre-cast or cast-in-place concrete ceilings. Standard housing designed for use with formwork and no plaster finish. Select the appropriate housing option for use with a plaster finish.

2700K (K27), 3000K (K3), 3500K (K35), 4000K (K4)

Stainless steel finish. Custom colors not available.

NRTL listed to North American Standards, suitable for wet locations

IP 65
