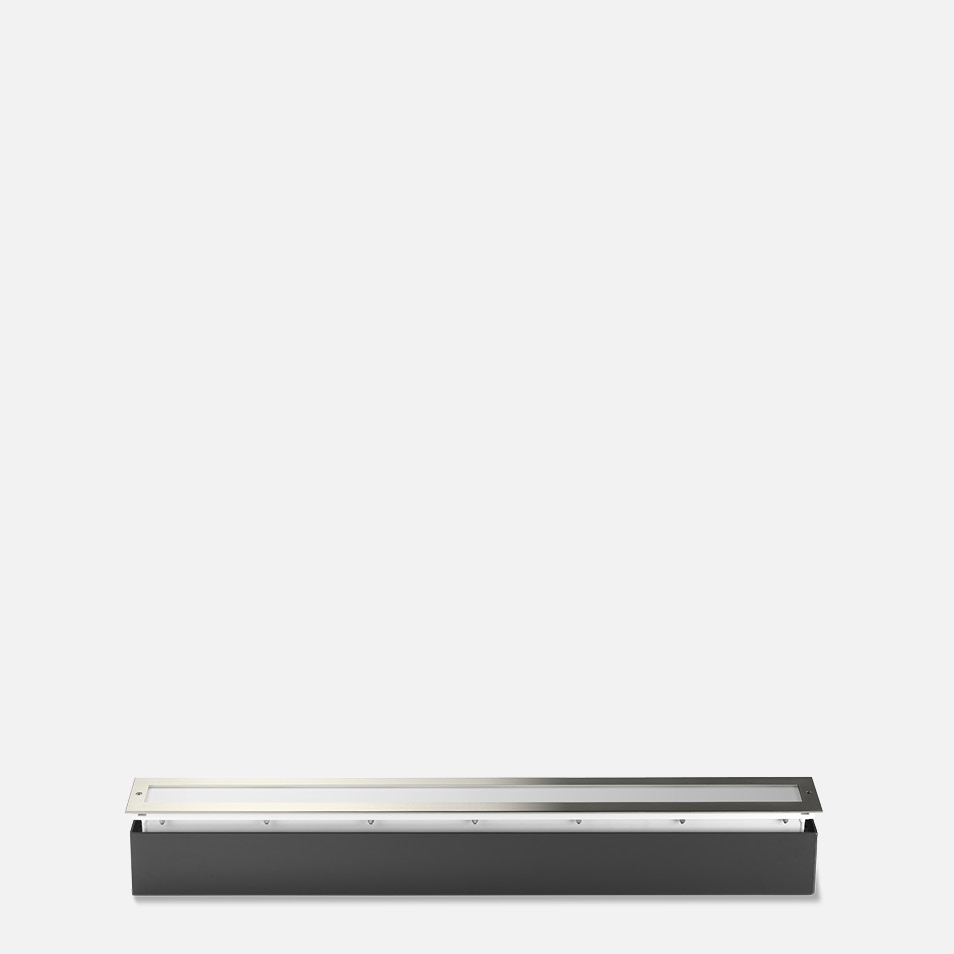

In-grade luminaire

Stainless steel housing

Location luminaire

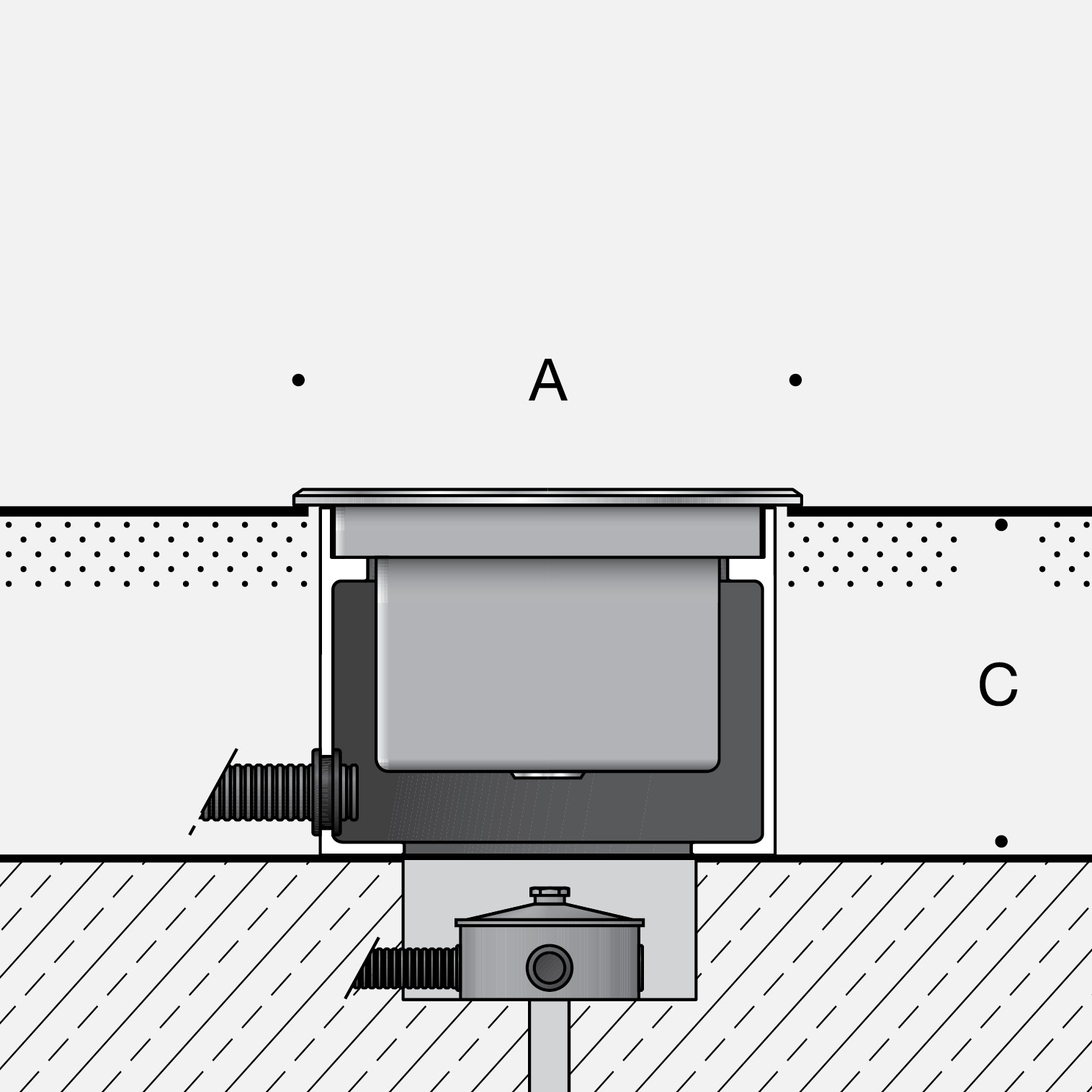

  LED   A B C
77 600 9.6W 523 lm
4
25
5
77 603 23.0W 604 lm
4
48
5
77 608 30.4W 1396 lm
4
60 ½
5

Asymmetric

  LED   β A B C
77 643 20.0W 1468 lm 41x98°
4
25
5
77 646 31.0W 3446 lm 41x100°
4
48
5
77 647 50.4W 3831 lm 41x102°
4
60 ½
5

Symmetric

  LED   β A B C
77 635 20.0W 1569 lm 32x53°
4
25
5
77 636 31.0W 3584 lm 32x55°
4
48
5
77 637 50.4W 3959 lm 32x56°
4
60 ½

In-grade luminaire
Stainless steel housing

A series of linear LED in-grade location luminaires and floodlights with symmetrical or asymmetrical light distribution. These luminaires are designed to bear pressure loads up to 11,000 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.
Aluminum housing · Stainless steel faceplate · Matte safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
Brushed stainless steel. Custom colors are not available.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 67
