Ground-mounted luminaire

Twin 90° ports
Twin 90° ports
Options
  • AMB - Amber LED
  • CUS - Custom finish
  • FSC - Fusing
  • RAL - RAL finish
  • MGU - Marine grade undercoat
Included (available for pre-shipment)
  • BB7089LED - Installation housing

Downloads

  • Spec sheet
  • IES files
  • Photometric summary
  • Submittal drawing (DXF)
  • Submittal drawing (PDF)
  • Revit BIM model
  • Installation instructions
  • Download all
  • Estimated Lead-Time

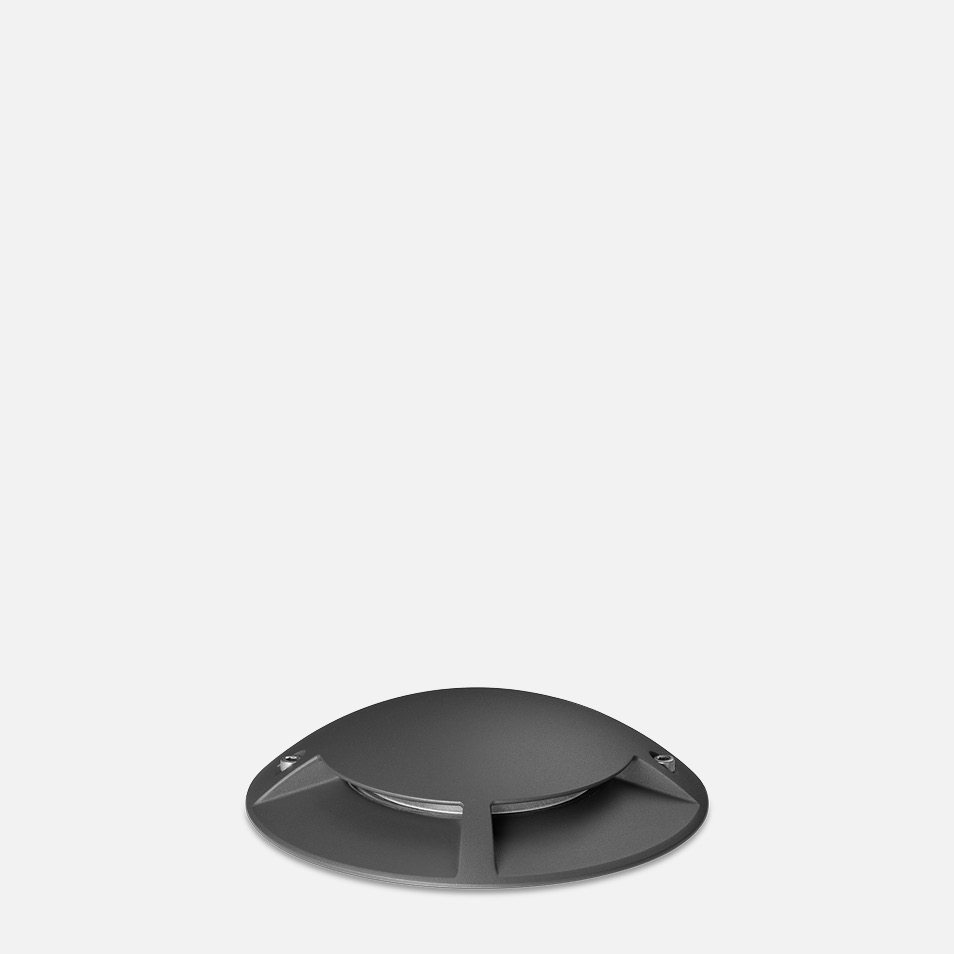

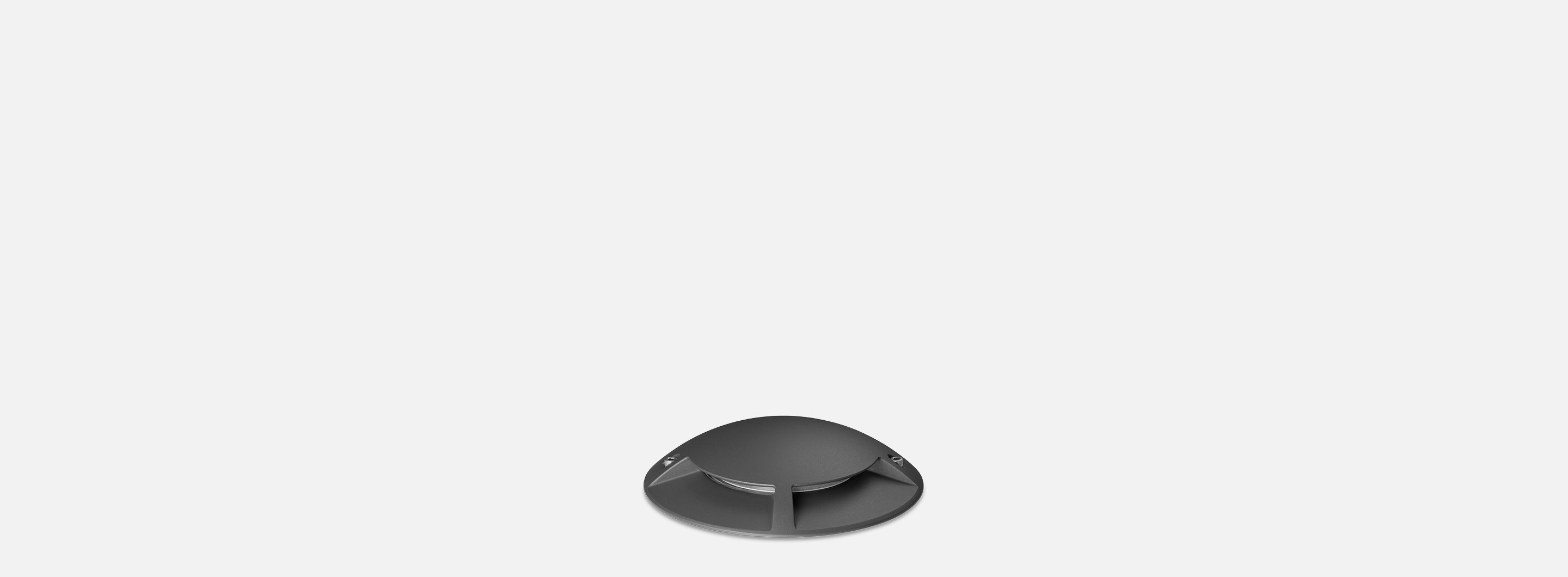

Ground-mounted luminaire
Twin 90┬░ ports

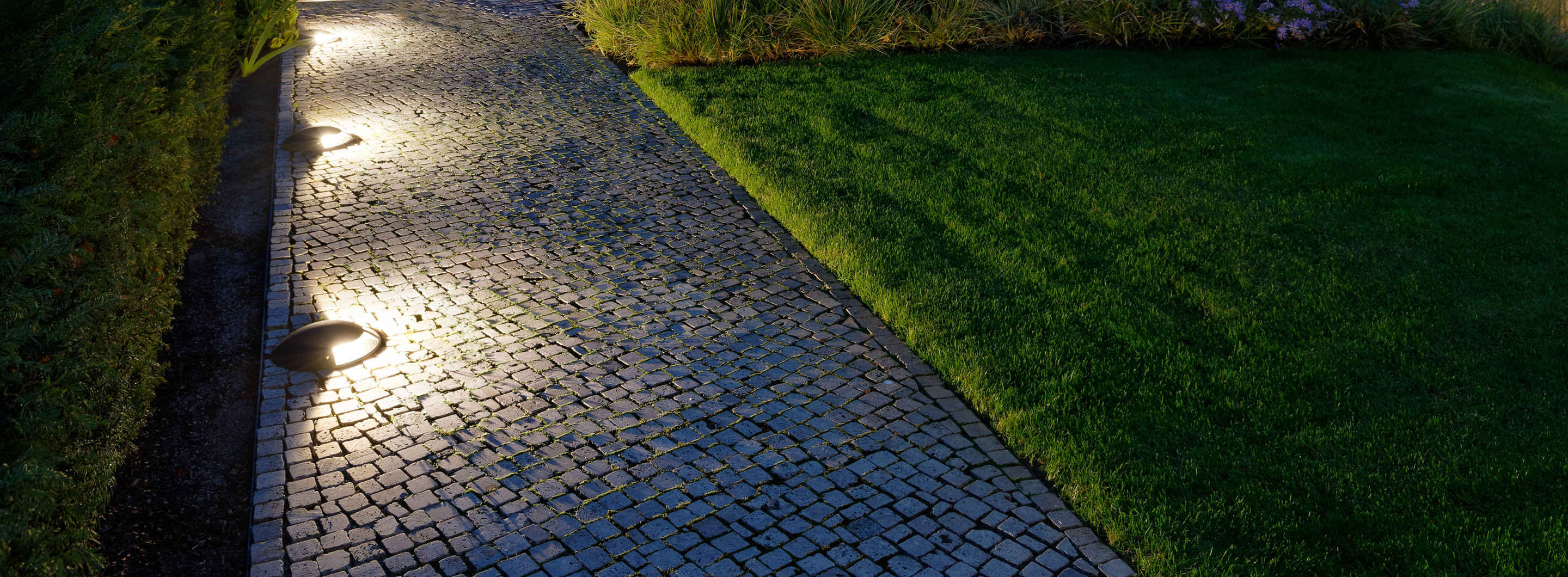

In-grade luminaire to illuminate ground surfaces. Equipped with two 90┬░ light apertures to create a visual boundary on the edge of a pathway. These luminaires affix to a recessed BEGA junction box, supplied with luminaire, eliminating the need for deep recessed housings. Designed to bear pressure loads up to 2200 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.

2700K (K27), 3000K (K3), 3500K (K35), 4000K (K4)

All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL and custom color finishes provided in either polyester powder or liquid paint.

NRTL listed to North American Standards, suitable for wet locations

IP 67
