In-grade luminaire

Ground surface illuminator

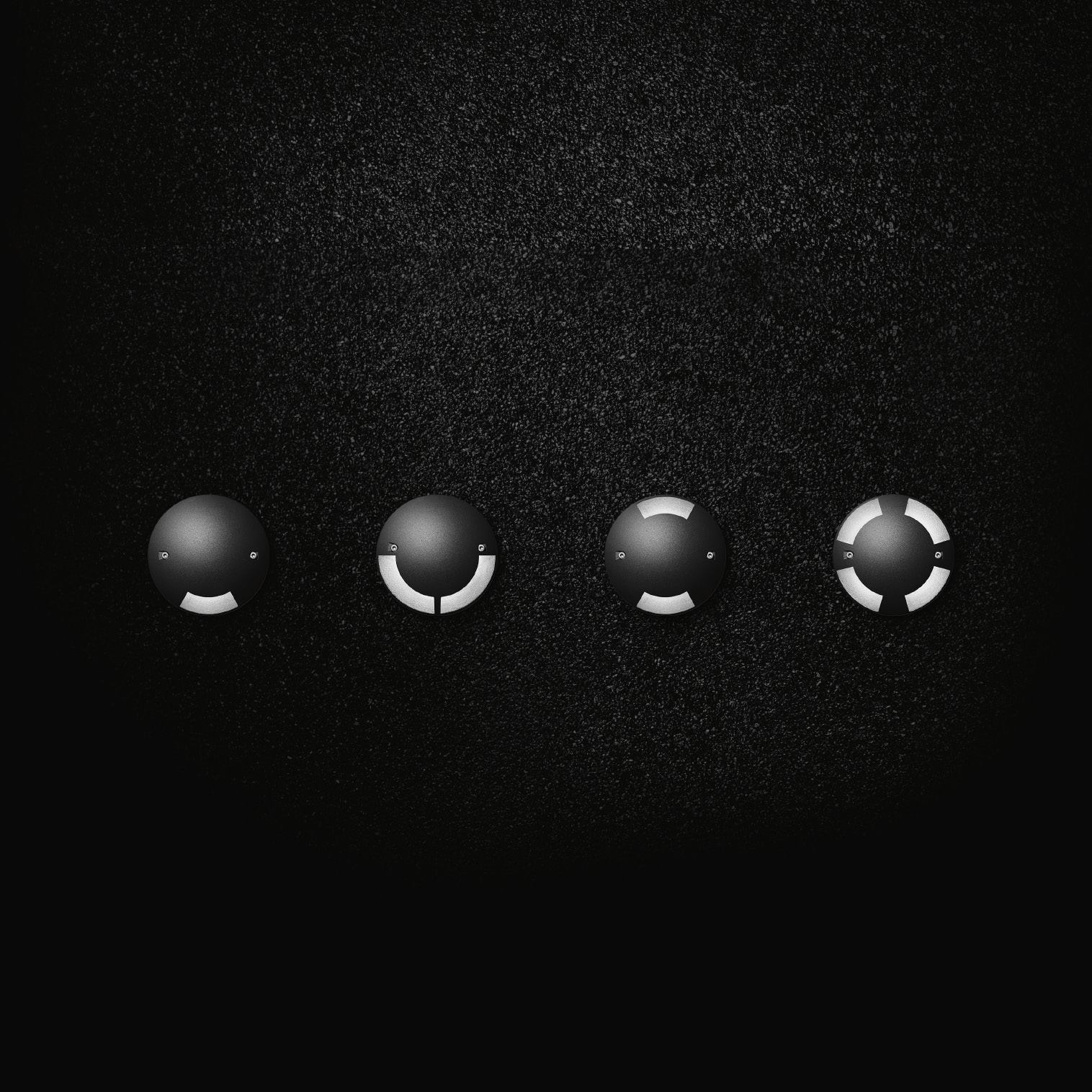

Single 60° port

Twin 60° ports

Twin 90° ports

Four 60° ports

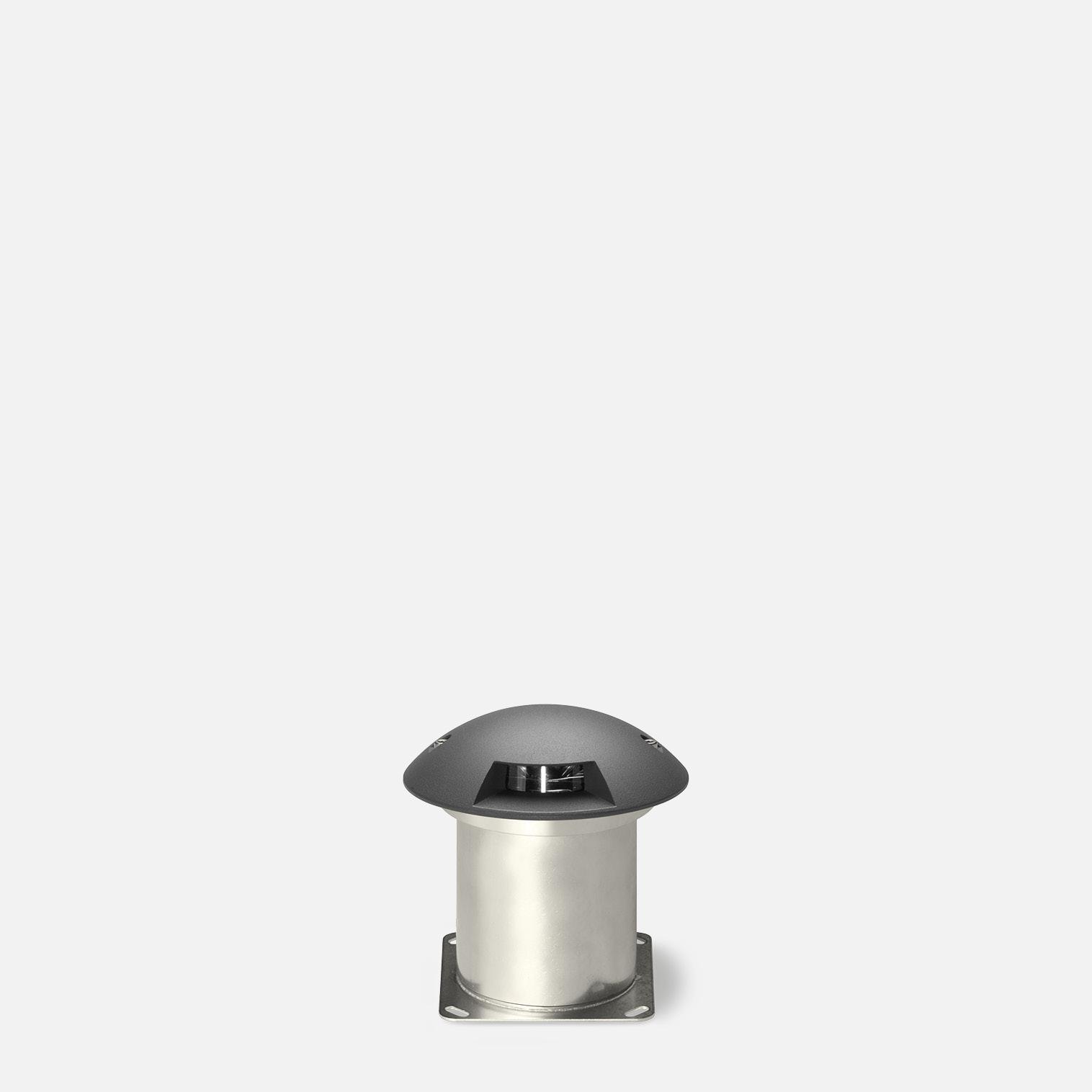

In-grade luminaire
Ground surface illuminator

A series of LED in-grade luminaires to illuminate ground surfaces. Equipped with one, two or four light apertures to meet different lighting requirements. These luminaires are designed to bear pressure loads up to 2200 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.
Stainless steel housing · Die-cast aluminum faceplate · Borosilicate glass lens
LED color temperature 3000 K – for 4000 K add suffix K4
These impressive luminaires have a selection of color temperatures, boast a minimum service life of 50,000 hours, and are guaranteed to last with the BEGA 20 Year Replacement Promise for LED modules, see page 415.
Further LED technical data including luminous flux, CRI, dimming and electrical characteristics are provided on the individual luminaire specification sheets, available at www.bega-us.com.
BEGA luminaires are provided with polyester powder coat black finish.
UL or CSA listed, suitable for wet locations · Protection class IP 67
