In-grade luminaire

BEGA Vortex Optics®

Location luminaire

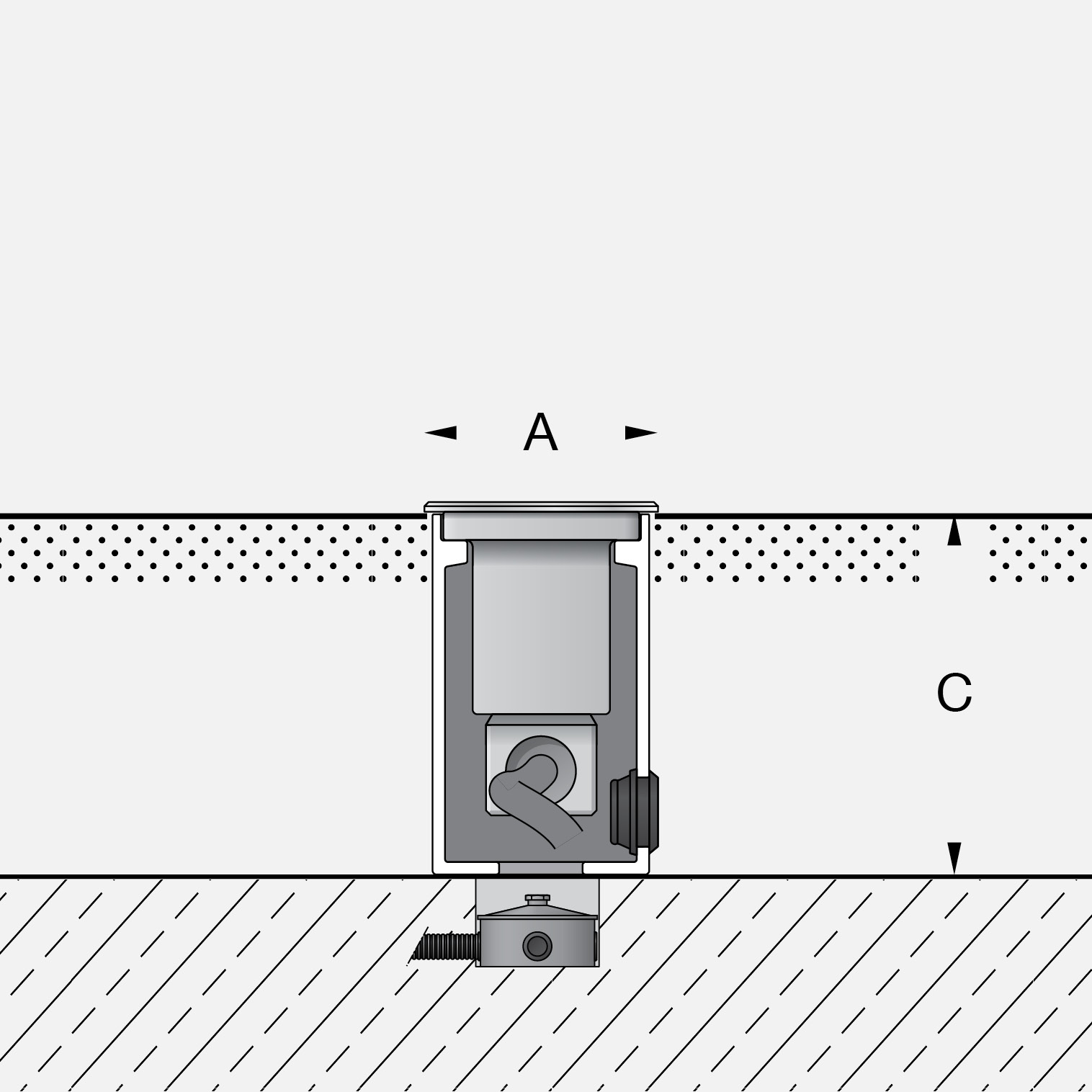

  LED   A B C
84 156 15.8W 1034 lm
3 ¼
21
5
84 157 31.6W 2087 lm
3 ¼
40
5
84 158 47.4W 3213 lm
3 ¼
59 ¾
5

Narrow beam

  LED   β A B C
84 159 15.8W 1261 lm 34°
3 ¼
21
5
84 160 31.6W 2240 lm 35°
3 ¼
40
5
84 161 47.4W 3513 lm 35°
3 ¼
59 ¾
5

Wide beam

  LED   β A B C
84 165 15.8W 1908 lm 54°
3 ¼
21
5
84 166 31.6W 3770 lm 55°
3 ¼
40
5
84 167 47.4W 5903 lm 56°
3 ¼
59 ¾
5

Asymmetric

  LED   β A B C
84 162 15.8W 1664 lm 47x53°
3 ¼
21
5
84 163 31.6W 3339 lm 48x53°
3 ¼
40
5
84 164 47.4W 5065 lm 48x54°
3 ¼
59 ¾
5

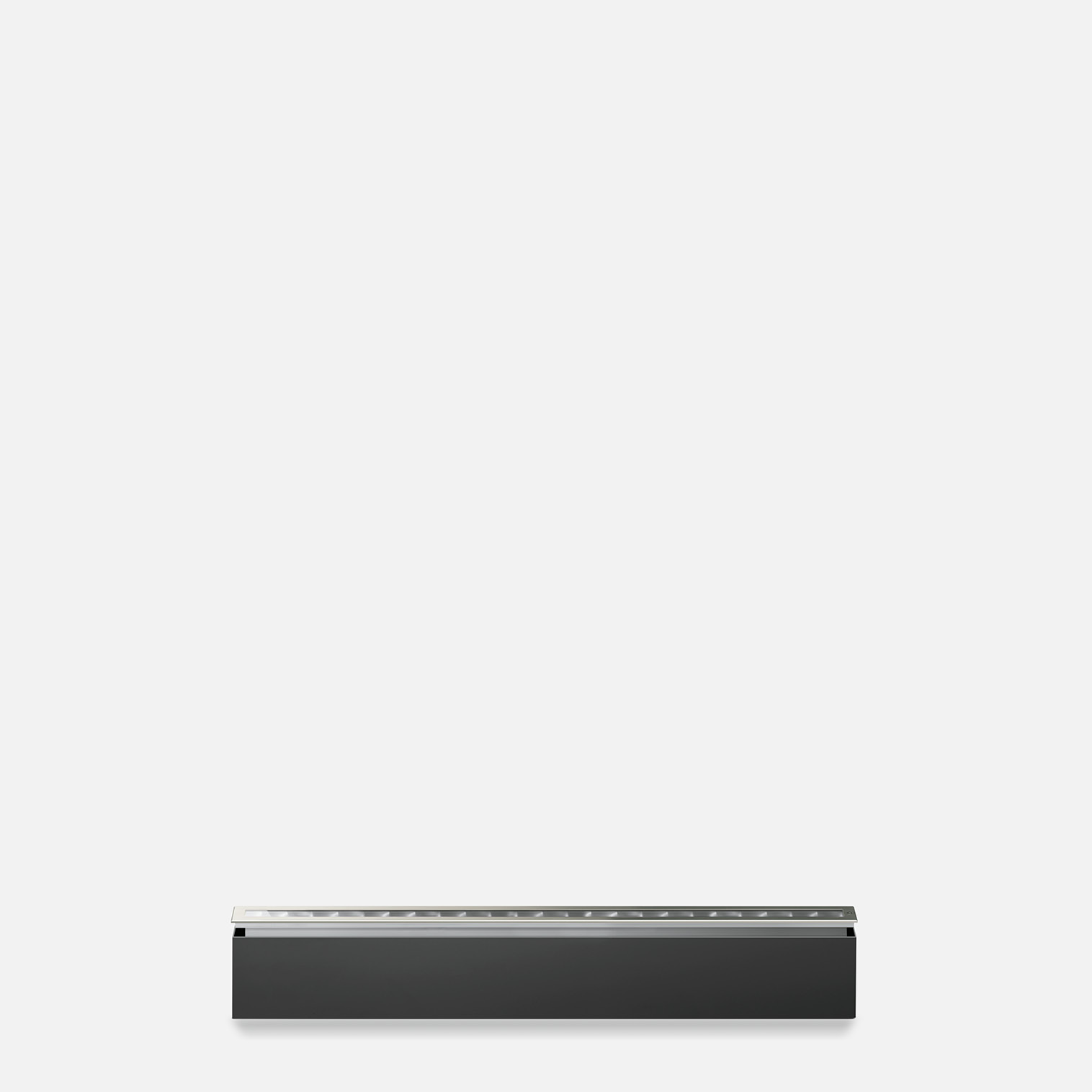

In-grade luminaire
BEGA Vortex Optics®

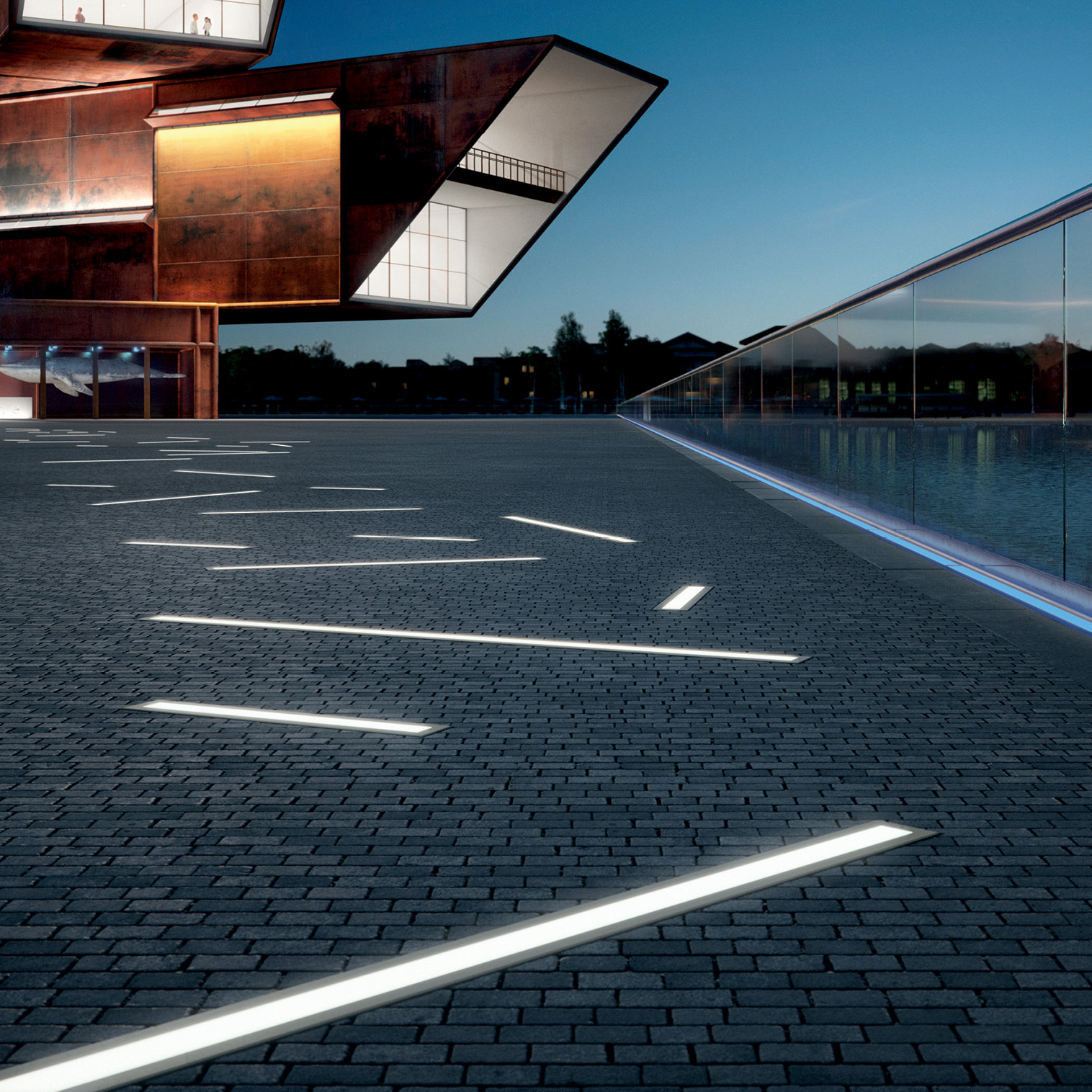

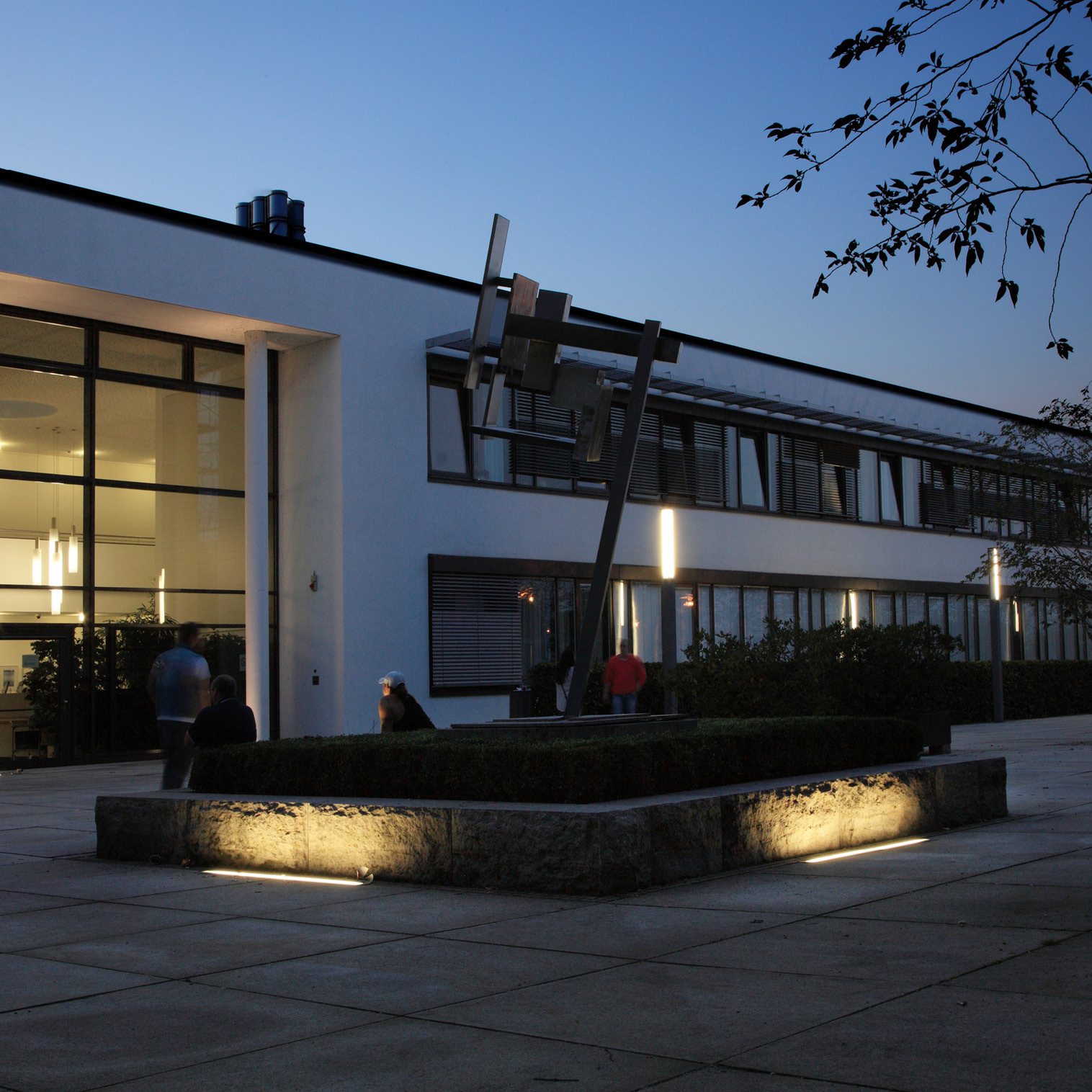

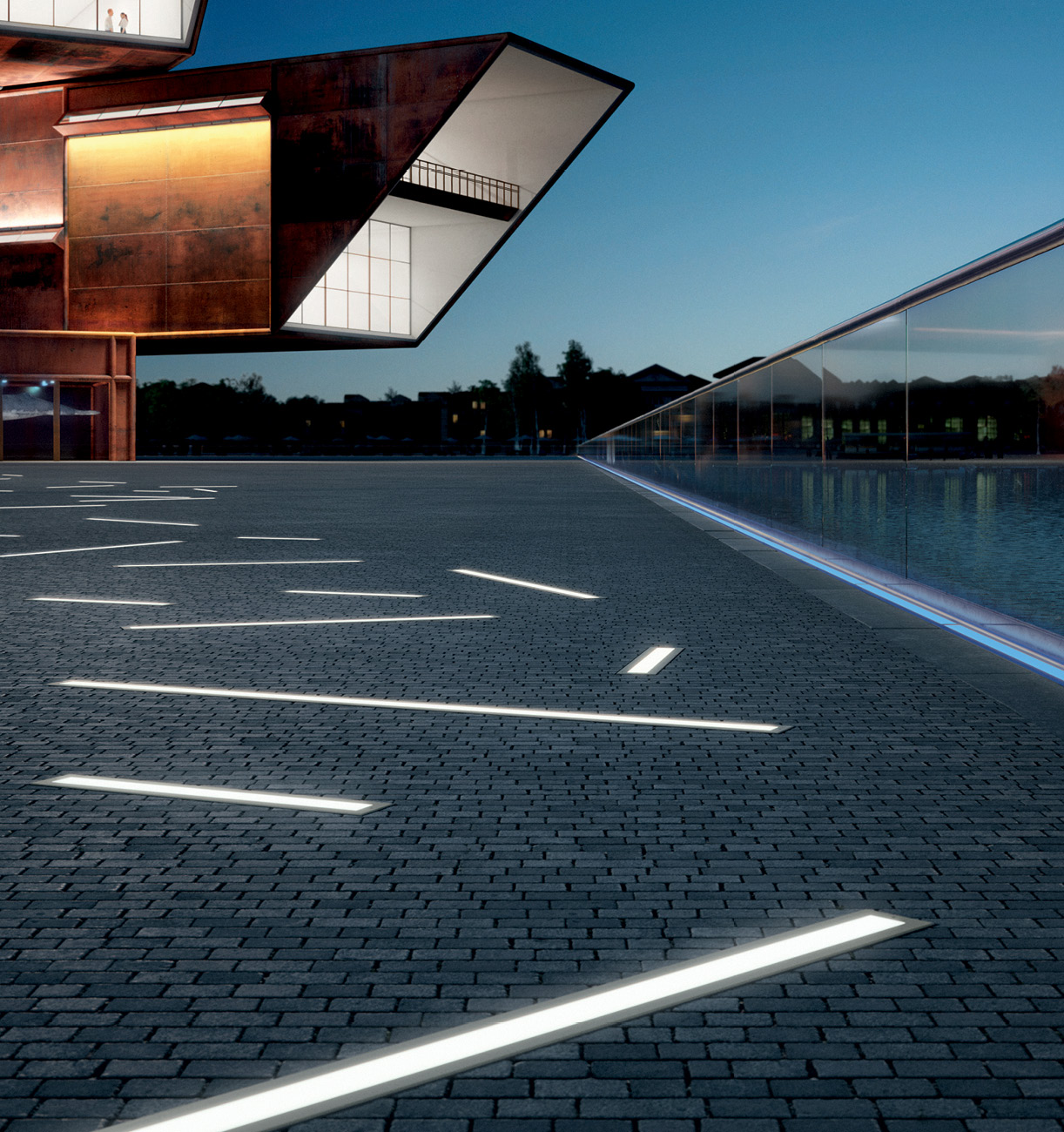

A family of linear in-grades with BEGA Vortex Optics®. Designed to manage visual comfort while maximizing efficacy for the illumination of building facades, signage, sculptures, and architectural features.
Die-cast and extruded aluminum housing · Stainless steel faceplate · White or clear safety glass · Reflector surface made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
Brushed stainless steel. Custom colors are not available.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP67
