In-grade luminaire

Adjustable
Adjustable
Options
  • FSC - Fusing
  • Non-skid lens
Included (available for pre-shipment)
  • BB84289 - Installation housing

Downloads

  • Spec sheet
  • IES files
  • Photometric Summary
  • Submittal drawing (DXF)
  • Submittal drawing (PDF)
  • Revit BIM model
  • Installation instructions
  • Download all
  • Estimated Lead-Time

In-grade luminaire
Adjustable

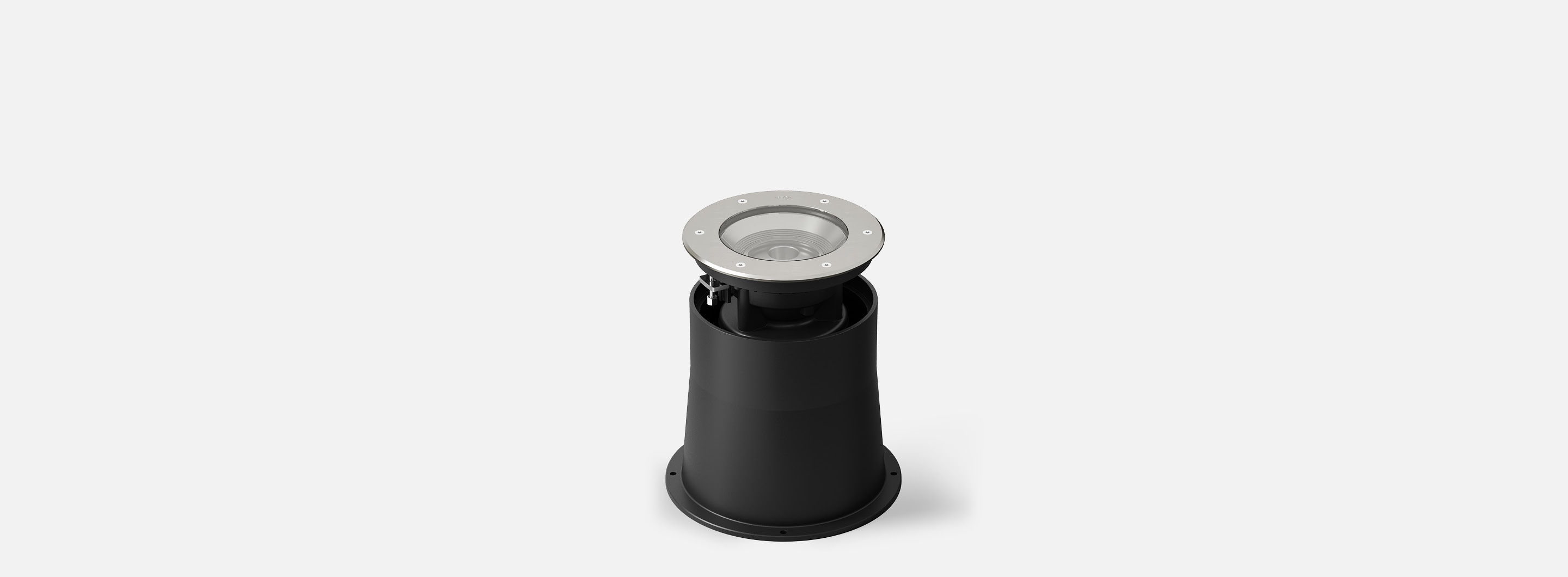

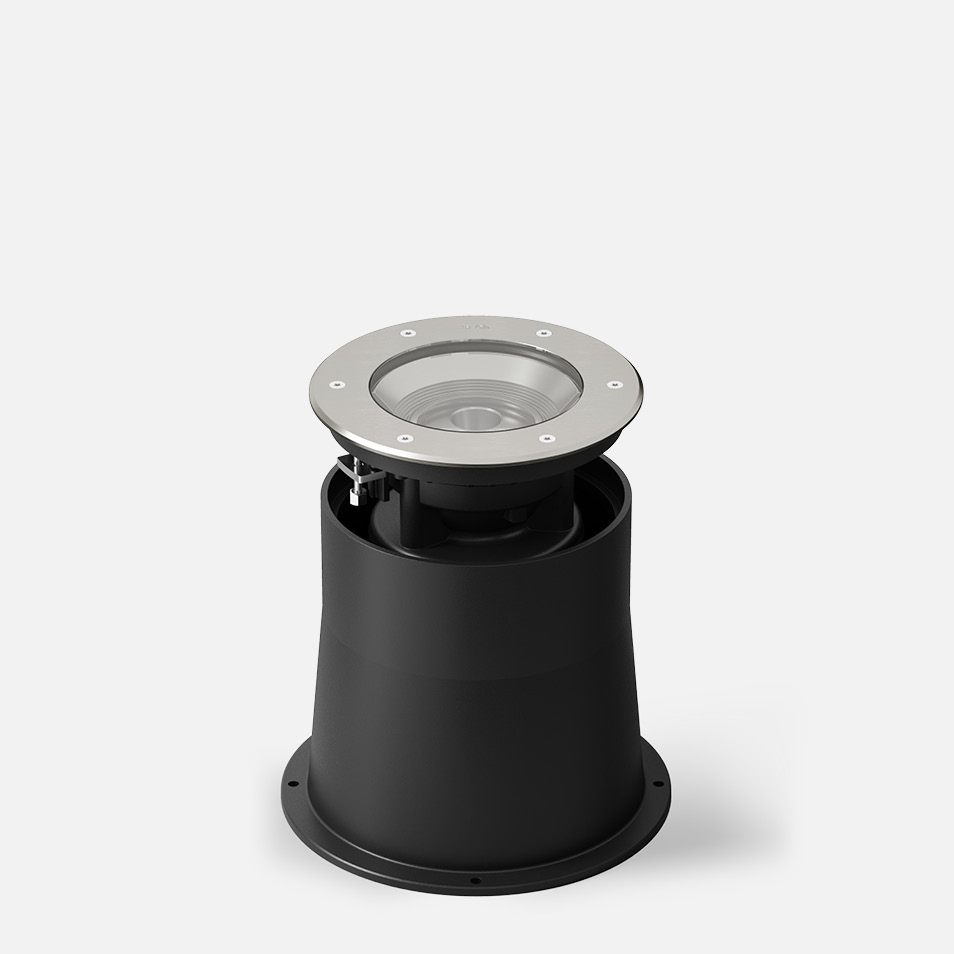

A round in-grade with a swivel mounted and rotatable optical system. Adjustable between 0° and 25° in the vertical axis and with 180° rotation. Intended for the illumination of walls, statues, flag poles, and architectural features. Designed to bear pressure loads up to 11,000 lbs. from vehicles with pneumatic tires. The luminaire must not be used for traffic lanes where it is subject to horizontal pressure from vehicles braking, accelerating, or changing direction.

Die-cast aluminum housing · Stainless steel faceplate · Clear or white safety glass · floodlight reflector made of pure anodized aluminum

LED color temperatures: 2700K, 3000K, 3500K, 4000K

Brushed stainless steel. Custom colors are not available.
BEGA Tricoat ®, A 3-layer finishing technology for increased corrosion protection.

NRTL listed to North American standards - Suitable for wet locations - Protection class IP 67
