In-grade luminaire

Die-cast aluminum housing
Big Product
Big Product
Big Product
Big Product
Big Product
View all photos View catalog page

Location luminaire

  LED   A B C
77 050 link 2.1W link link link 47 lmlink link
6 ¼ link
6 link
4 ¾ link
77 051 link 4.2W link link link 117 lmlink link
10 link
9 ⅝ link
4 ¾ link
77 052 link 8.4W link link link 185 lmlink link
13 link
12 ¼ link
6 ¼ link
77 053 link 17.4W link link link 533 lmlink link
17 ⅜ link
16 ⅝ link
6 ½ link

Asymmetric

  LED   β A B C
77 023 link 10.5W link link link 771 lmlink 67x105° link
6 ½ link
6 link
4 ¾ link
77 024 link 25.3W link link link 1914 lmlink 59x100° link
10 link
9 ⅝ link
4 ¾ link

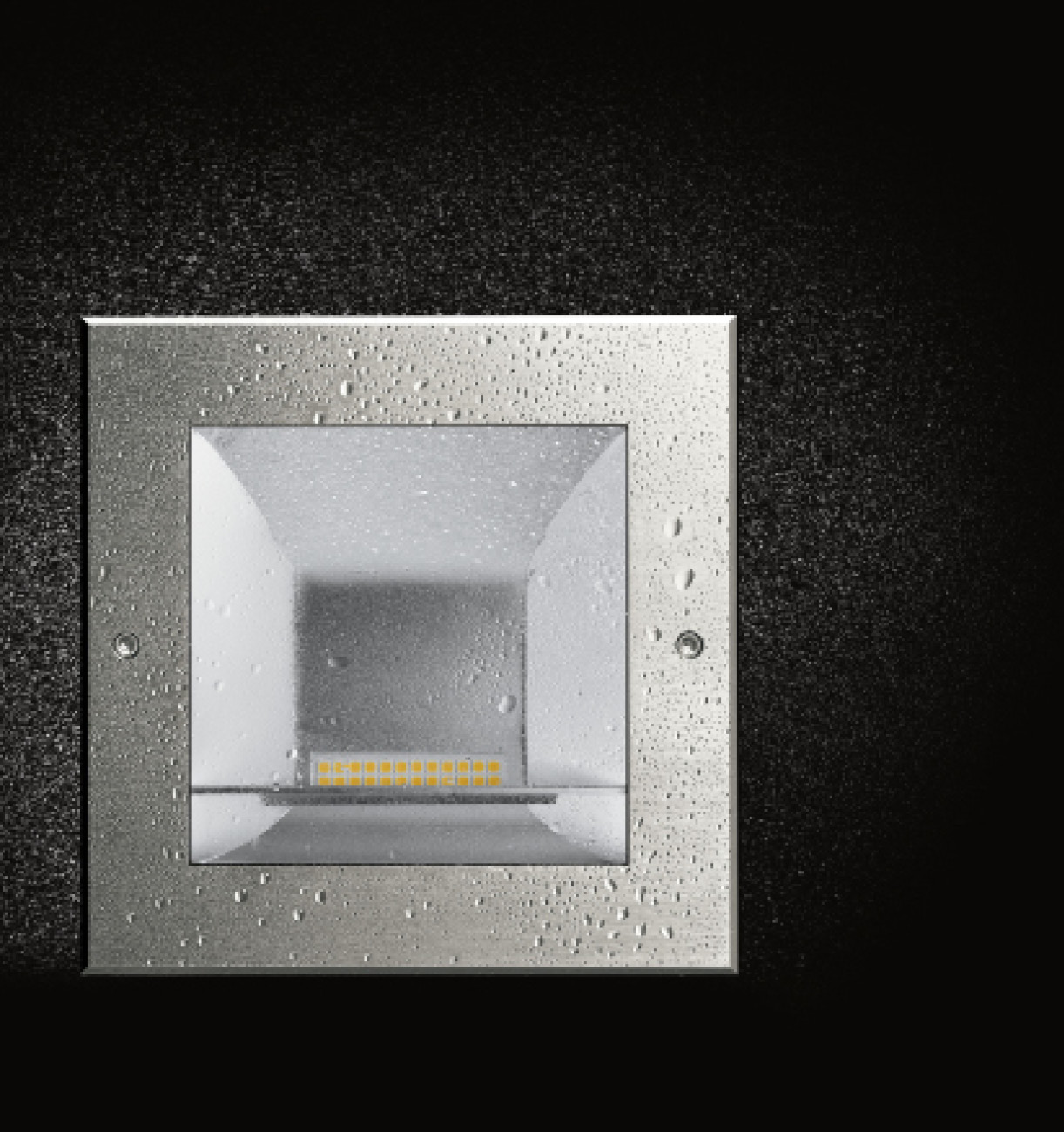

In-grade luminaire
High pressure square in-grade

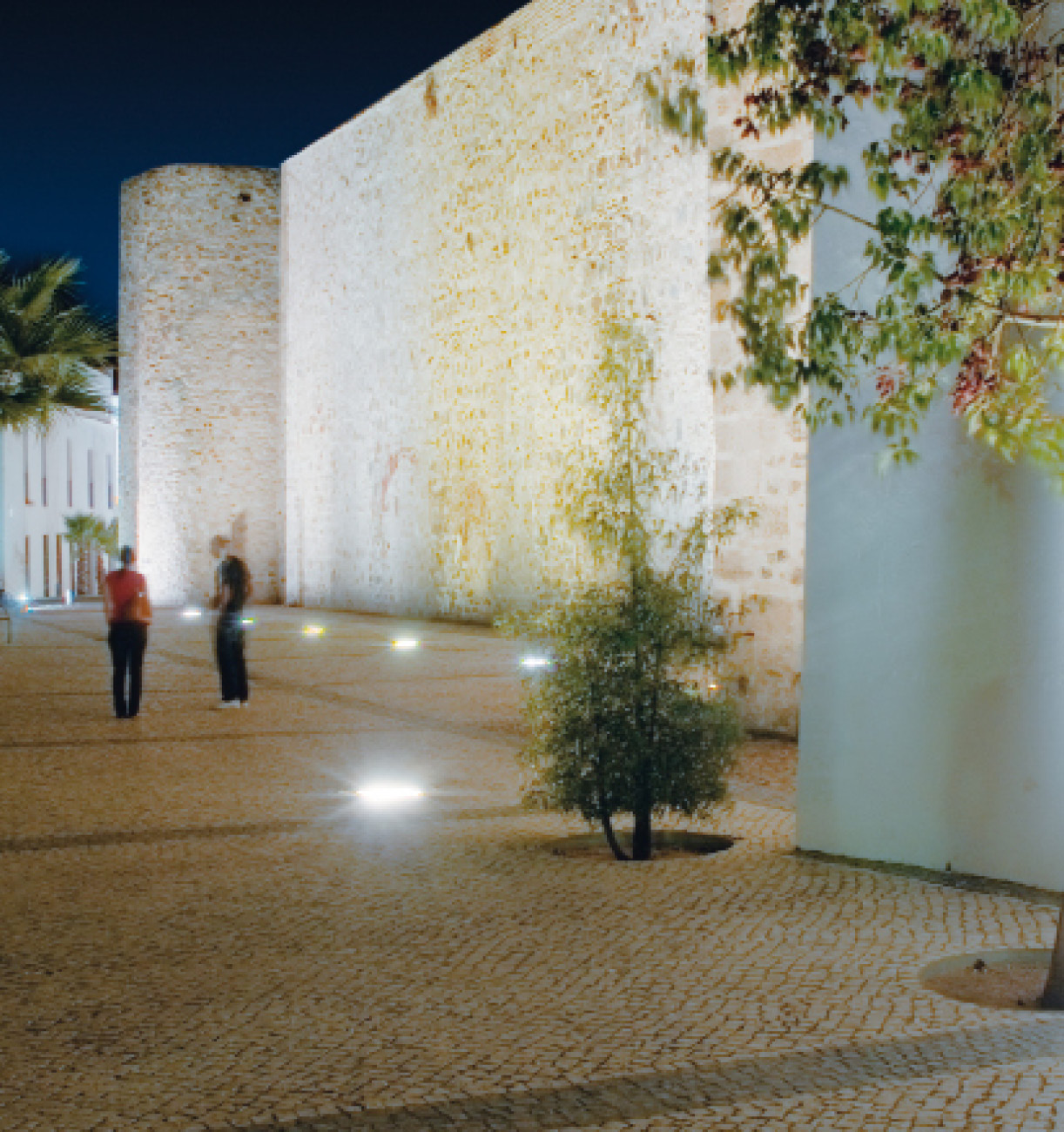

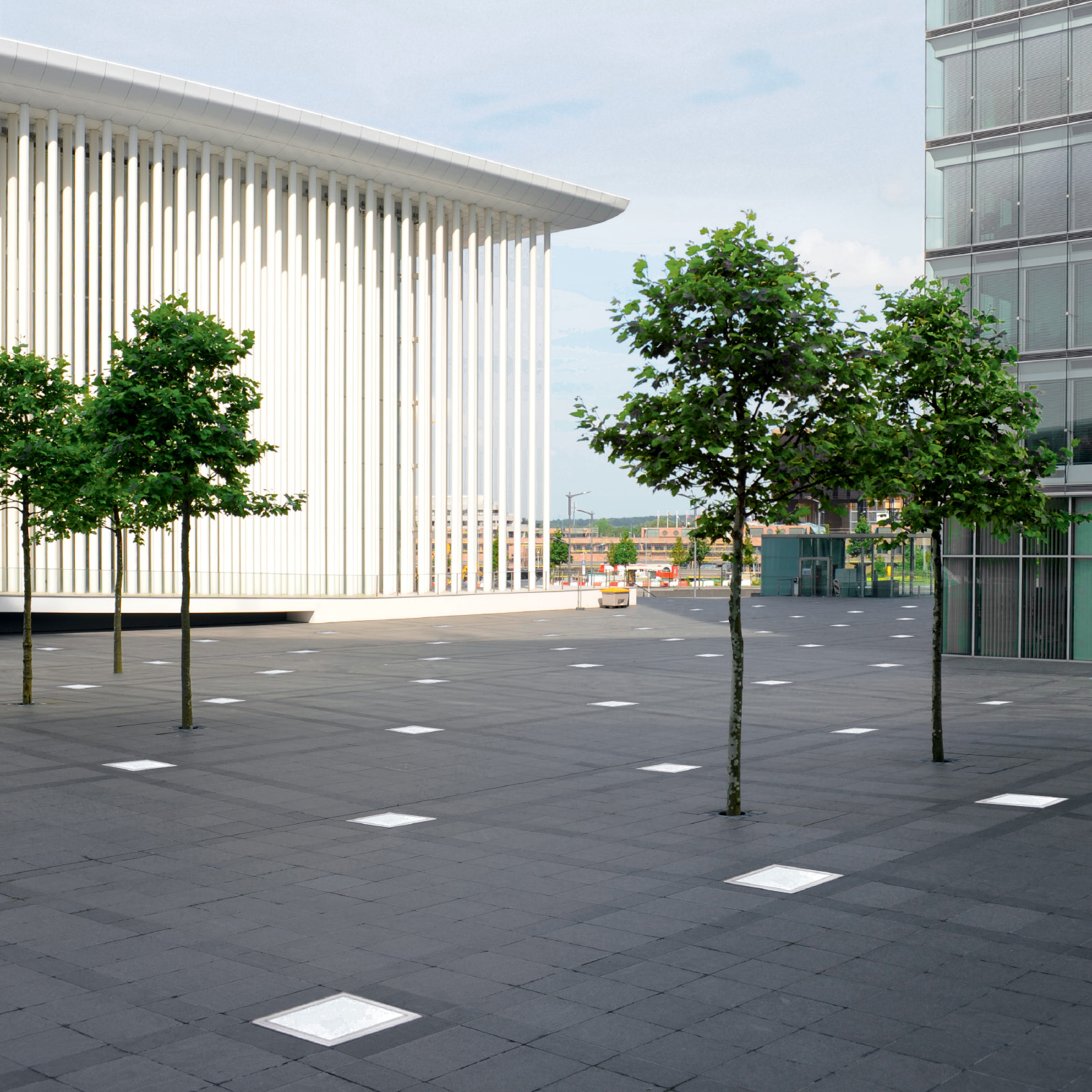

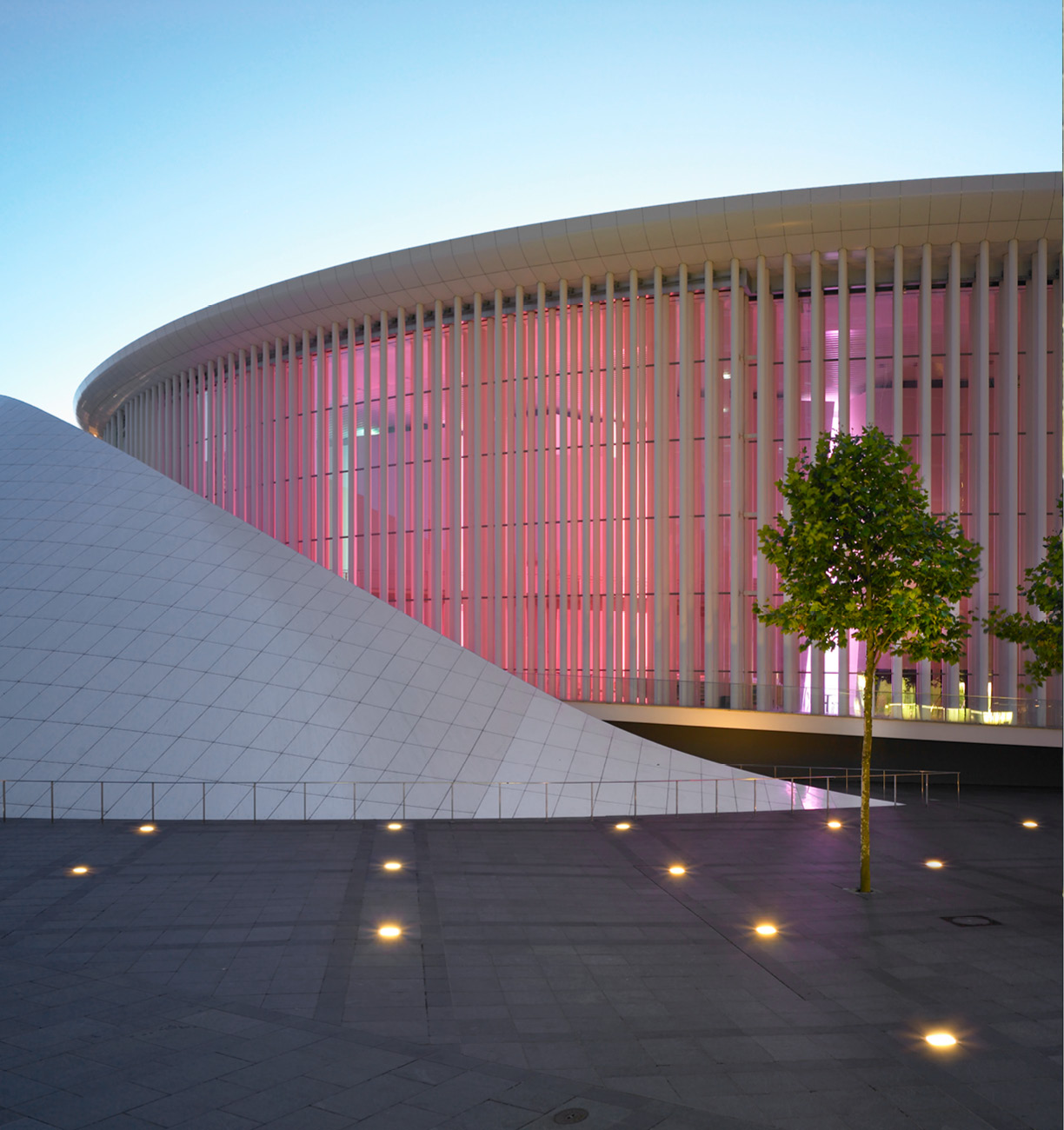

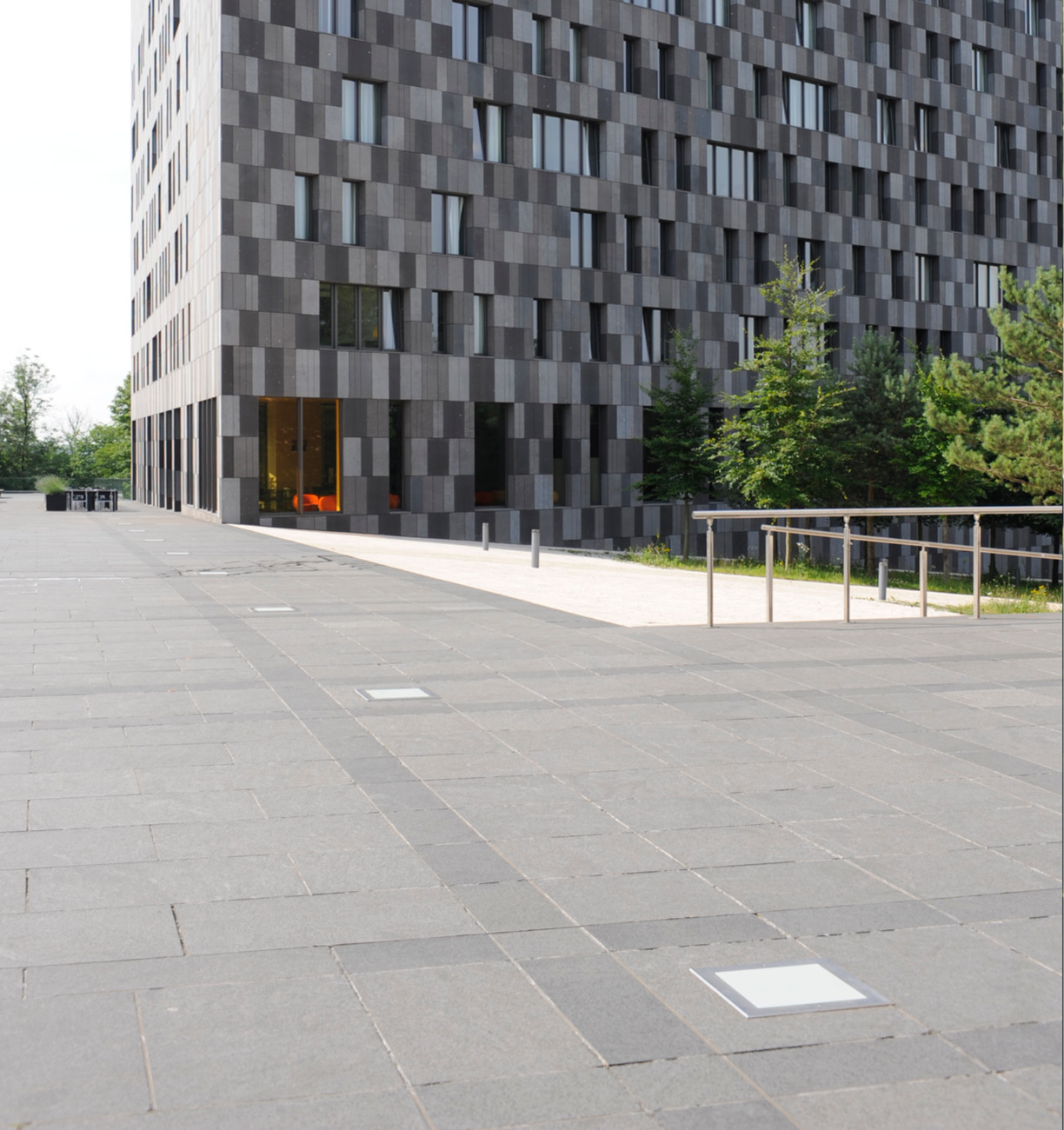

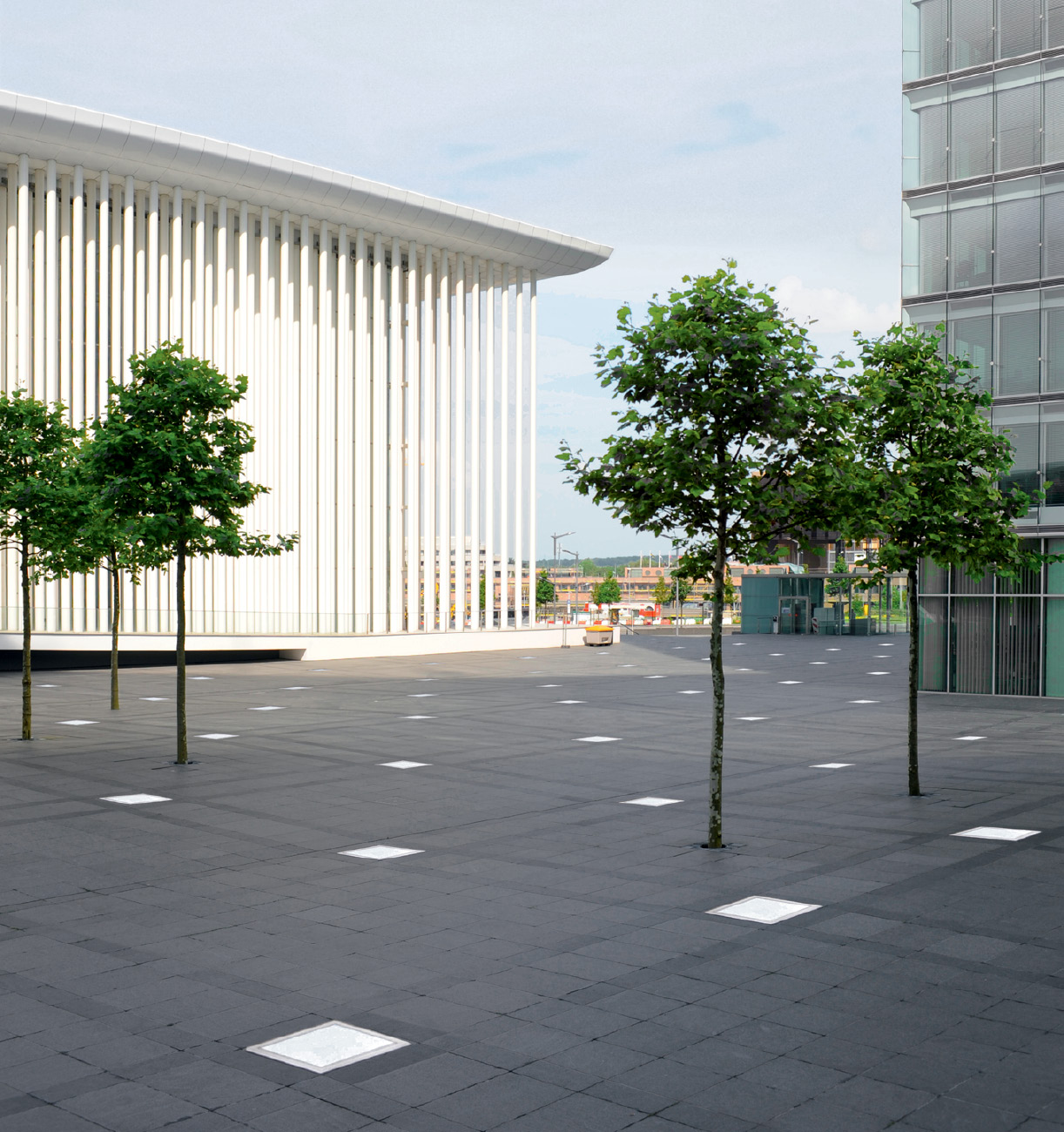

In-grade location and floodlight luminaires. These luminaires are designed to bear pressure loads up to 11,000 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.

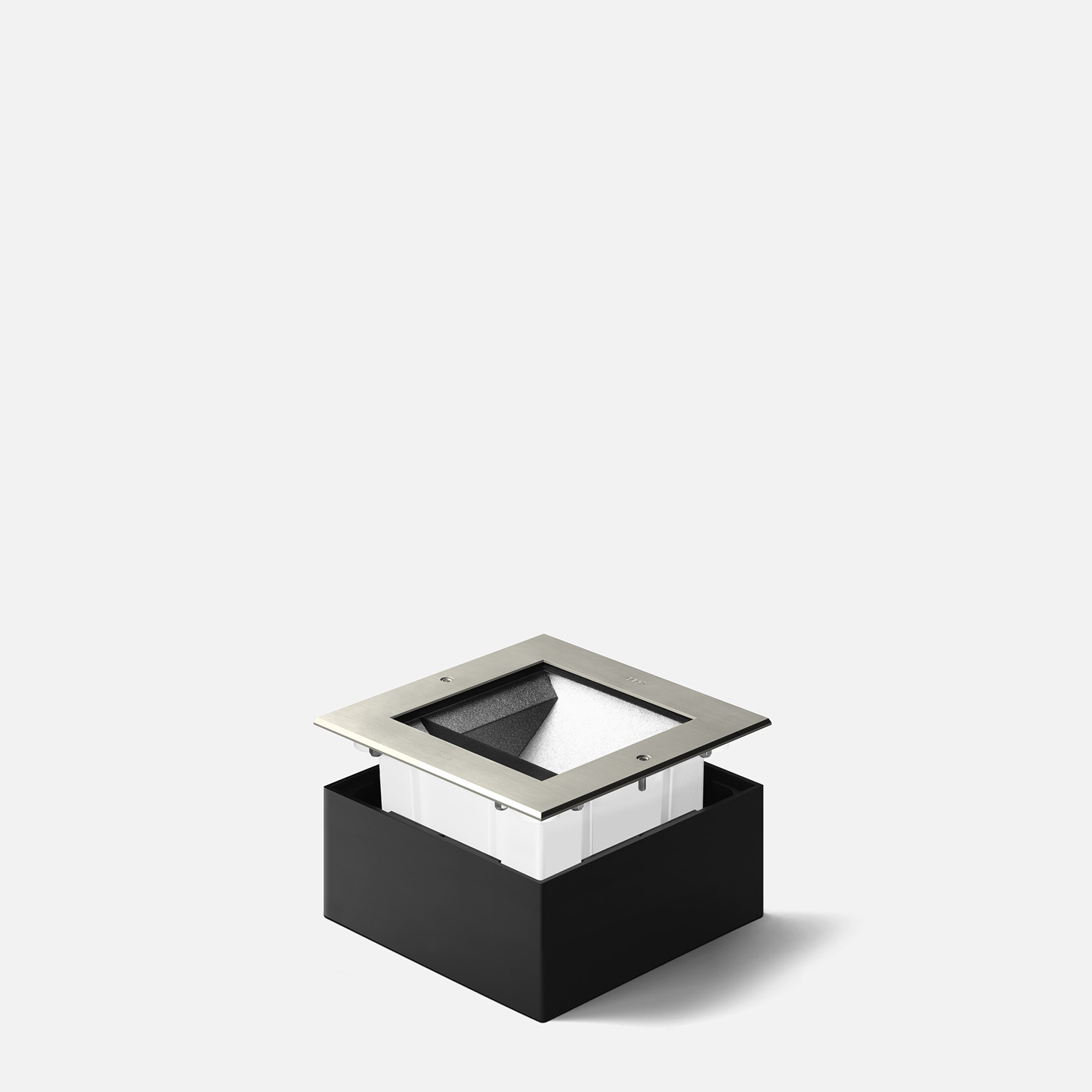

Die-cast aluminum housing · Stainless steel faceplate · Clear or white safety glass · floodlight reflector made of pure anodized aluminum

LED color temperatures: 2700K, 3000K, 3500K, 4000K

Brushed stainless steel. Custom colors are not available.

NRTL listed to North American standards - Suitable for wet locations - Protection class IP 67
