In-grade luminaire

Small scale
Big Product
Big Product
Big Product
Big Product
Big Product
View all photos View catalog page

Location luminaire

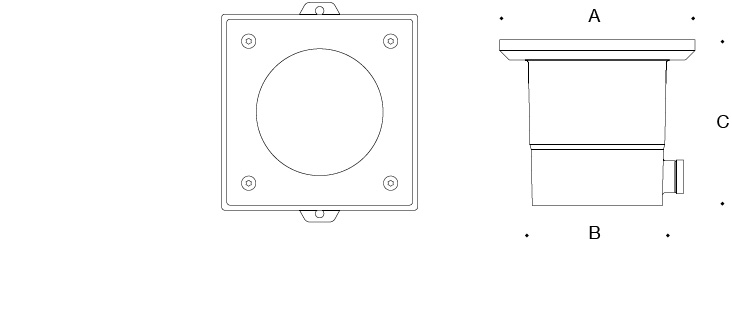

  LED   A B C
77 127 link 0.6W 24V DC link link link 28 lmlink link
3 link
1 ¾ link
2 ½ link
77 128 link 2.1W 24V DC link link link 74 lmlink link
4 ⅝ link
3 ⅛ link
3 ⅞ link

Symmetric

  LED   β A B C
77 117 link 1.2W 24V DC link link link 134 lmlink 38° link
3 link
1 ¾ link
2 ½ link
77 118 link 3.0W 24V DC link link link 352 lmlink 23° link
4 ⅝ link
3 ⅛ link
3 ⅞ link

Asymmetric

  LED   β A B C
77 119 link 3.0W 24V DC link link link 364 lmlink 38x35° link
4 ⅝ link
3 ⅛ link
3 ⅞ link

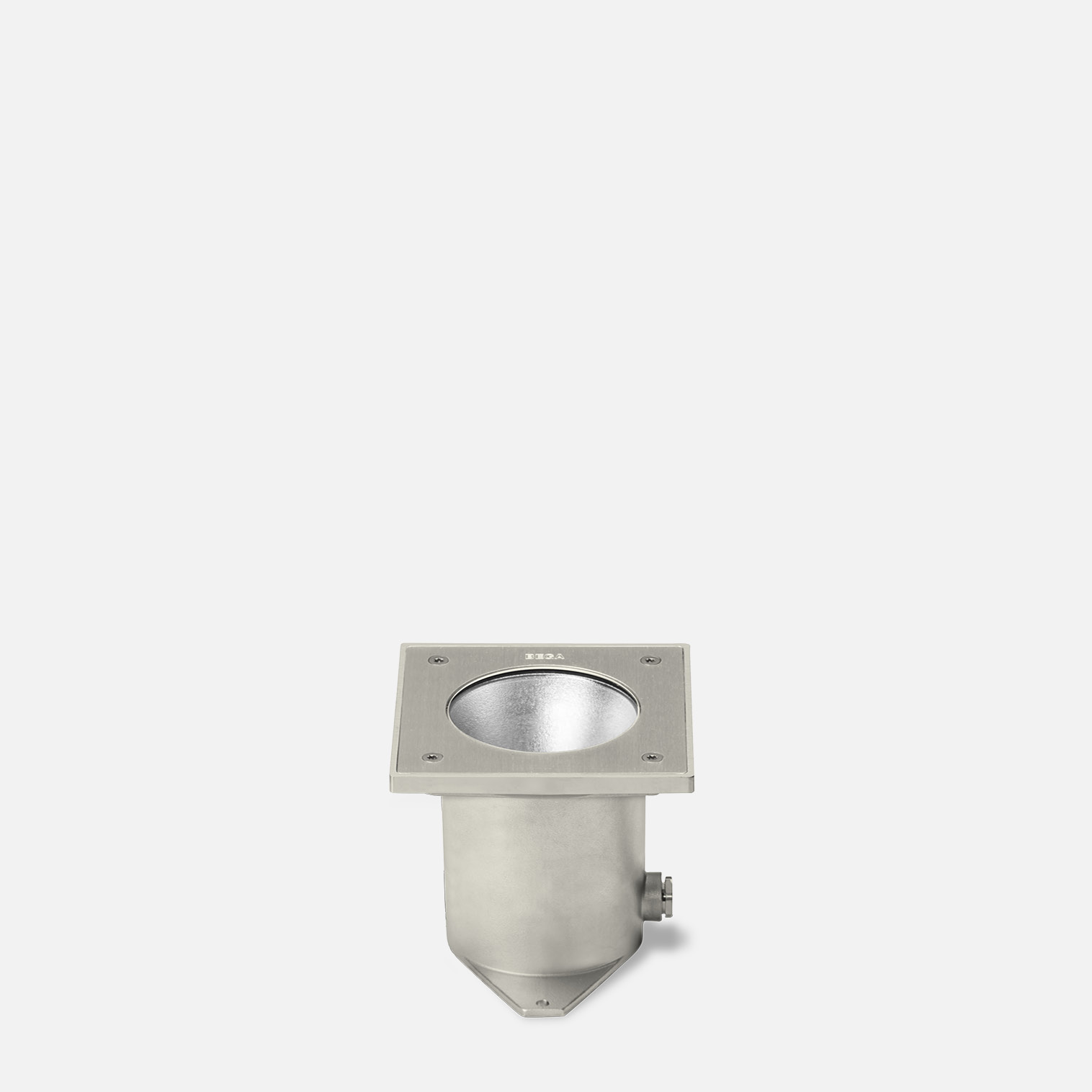

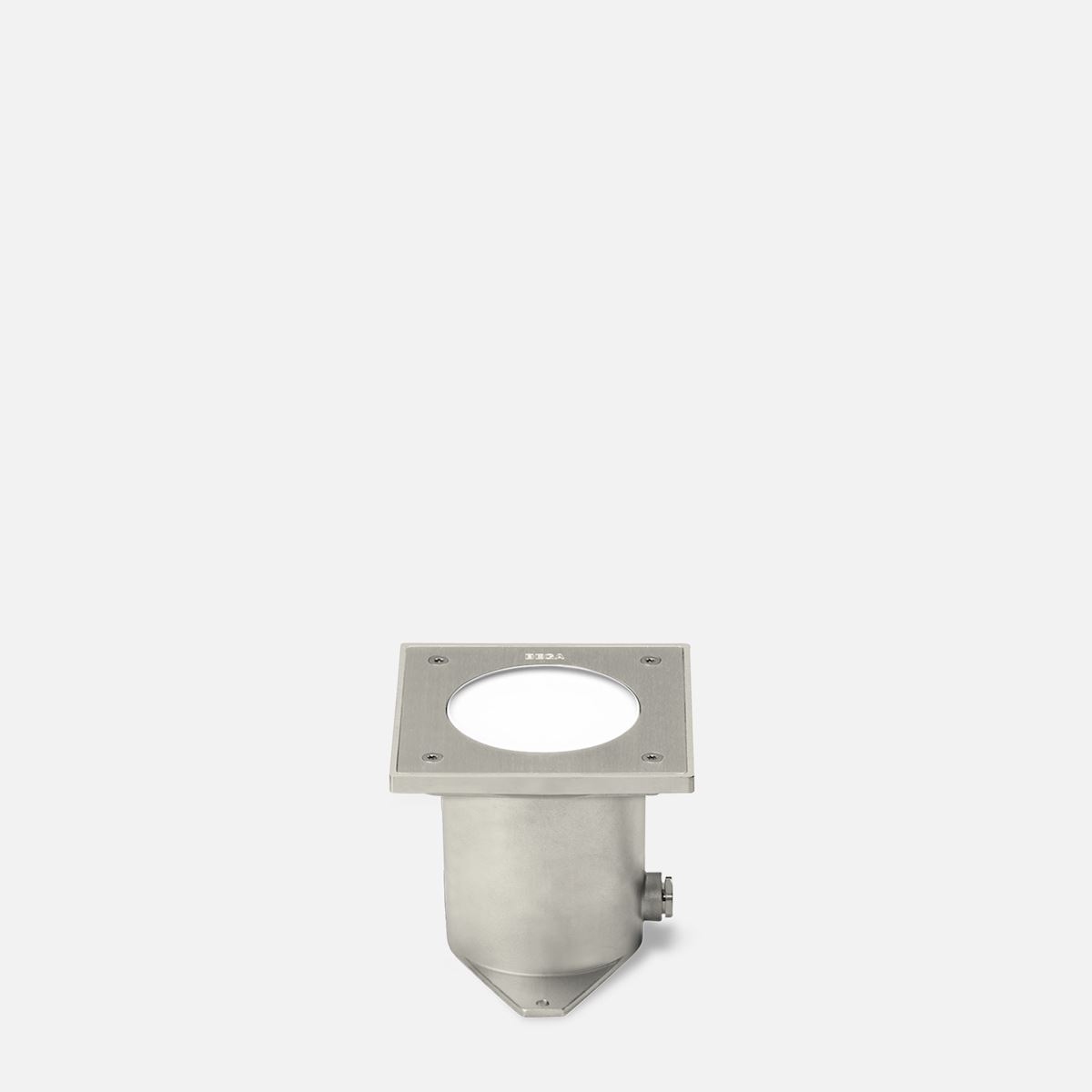

In-grade luminaire
Small scale square

In-grade location and floodlight luminaries. Available in location, symmetric, and asymmetric distributions. These luminaires are designed to bear pressure loads of up to 4400lbs from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.

Stainless steel housing and faceplate · Clear or white safety glass · Floodlight reflectors made of pure anodized aluminum

LED color temperatures: 2700K, 3000K, 3500K, 4000K

Brushed stainless steel. Custom colors are not available.

NRTL listed to North American standards - Suitable for wet locations - Protection class IP 67
