In-grade luminaire

Flush mounted
Big Product
Big Product
Big Product
Big Product
Big Product
View all photos View catalog page

Location luminaire

  LED   A B
77 071 link 6.5W link link link 45 lmlink link
8 ¼ link
5 ⅛ link
77 072 link 13.0W link link link 99 lmlink link
10 link
5 ⅛ link
77 073 link 19.0W link link link 214 lmlink link
13 link
6 ⅛ link

Adjustable

  LED   β A B
77 074 link 9.2W link link link 544 lmlink 8.5° link
8 ¼ link
8 link
77 629 link 17.8W link link link 1028 lmlink 19° link
10 link
8 ¾ link
77 852 link 29.0W link link link 1534 lmlink 15° link
13 link
10 link

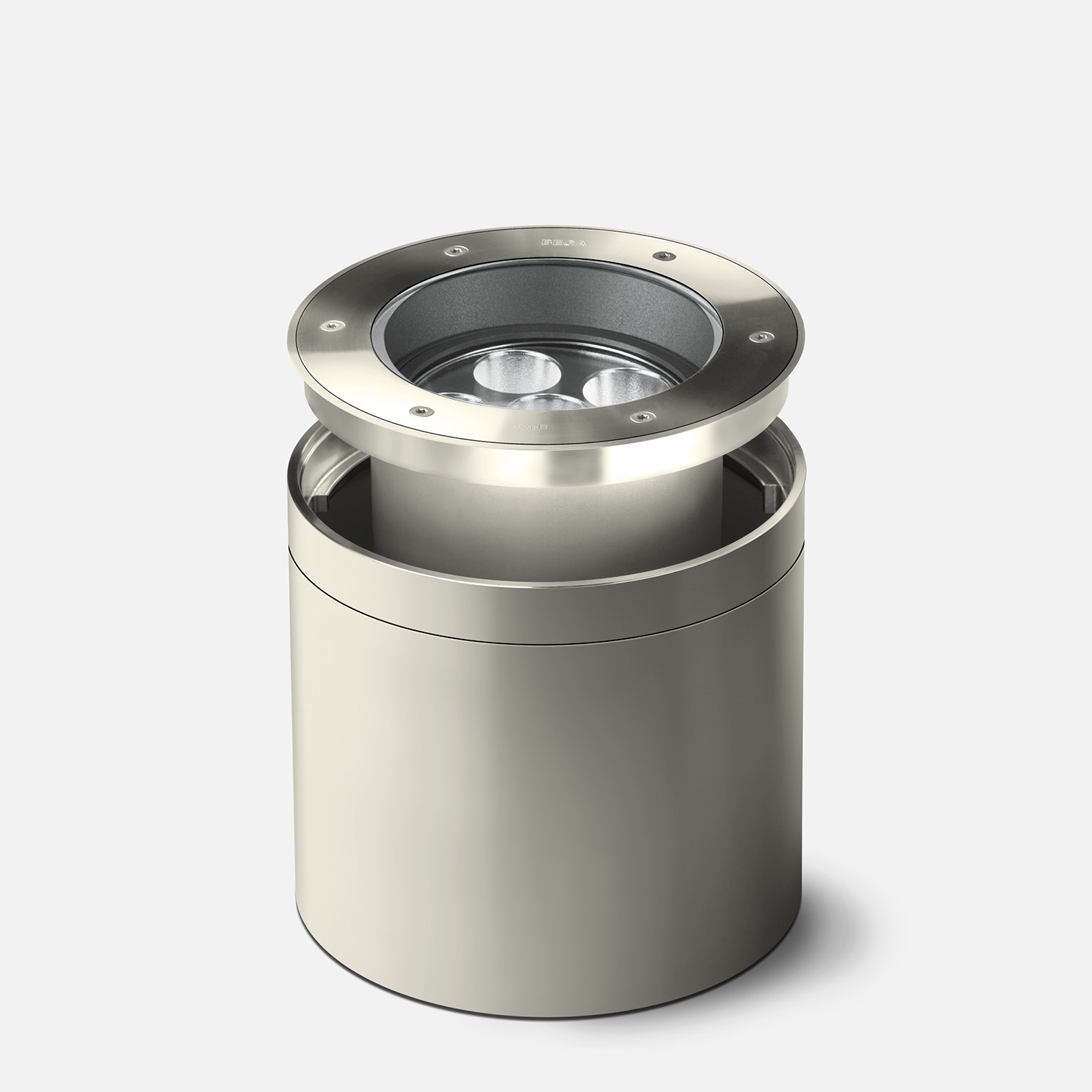

In-grade luminaire
High pressure flush mounted stainless steel

In-grade location and adjustable floodlight luminaires. These luminaires are designed to bear especially high pressure loads of up to 11,000lbs from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.

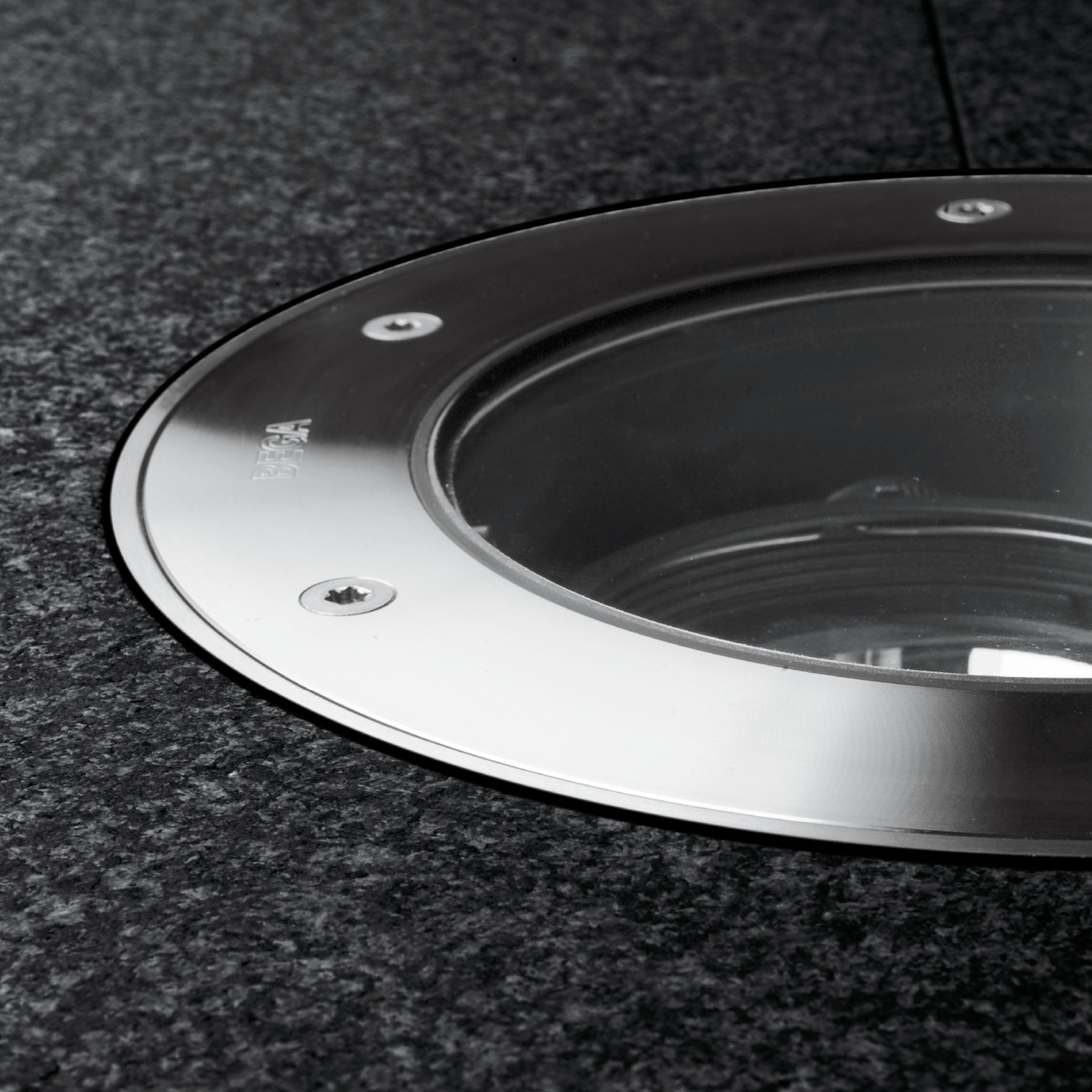

Stainless steel housing and faceplate · Clear or white safety glass · Adjustable reflector made of pure anodized aluminum

LED color temperatures: 2700K, 3000K, 3500K, 4000K

Brushed stainless steel. Custom colors are not available.

NRTL listed to North American standards – Suitable for wet locations – Protection class IP 68 10m
