In-grade floodlight

Wall washer
Wall washer
  • MGU - Marine grade undercoat
  • RAL - RAL finish
  • CUS - Custom finish
Included (available for pre-shipment)

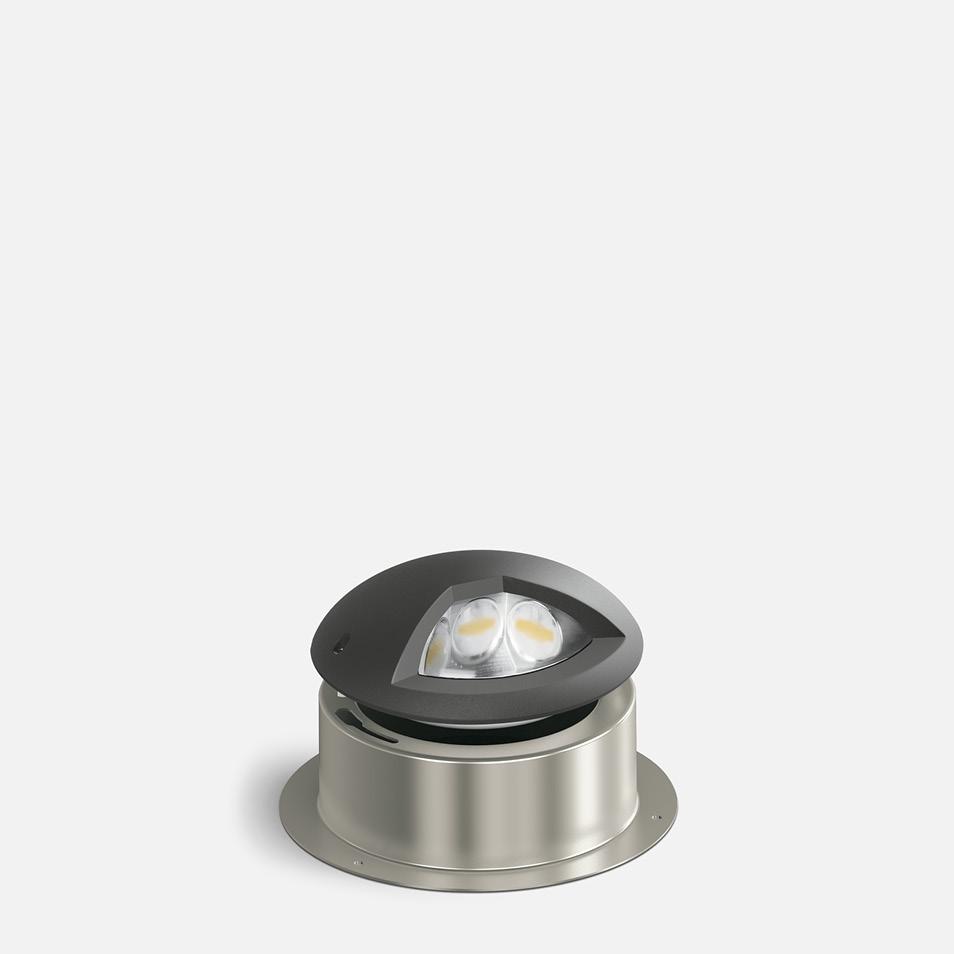

  • BB84618 - Installation housing


  • Spec sheet
  • IES files
  • Photometric Summary
  • Submittal drawing (DXF)
  • Submittal drawing (PDF)
  • Revit BIM model
  • Installation instructions
  • Download all
  • Estimated Lead-Time

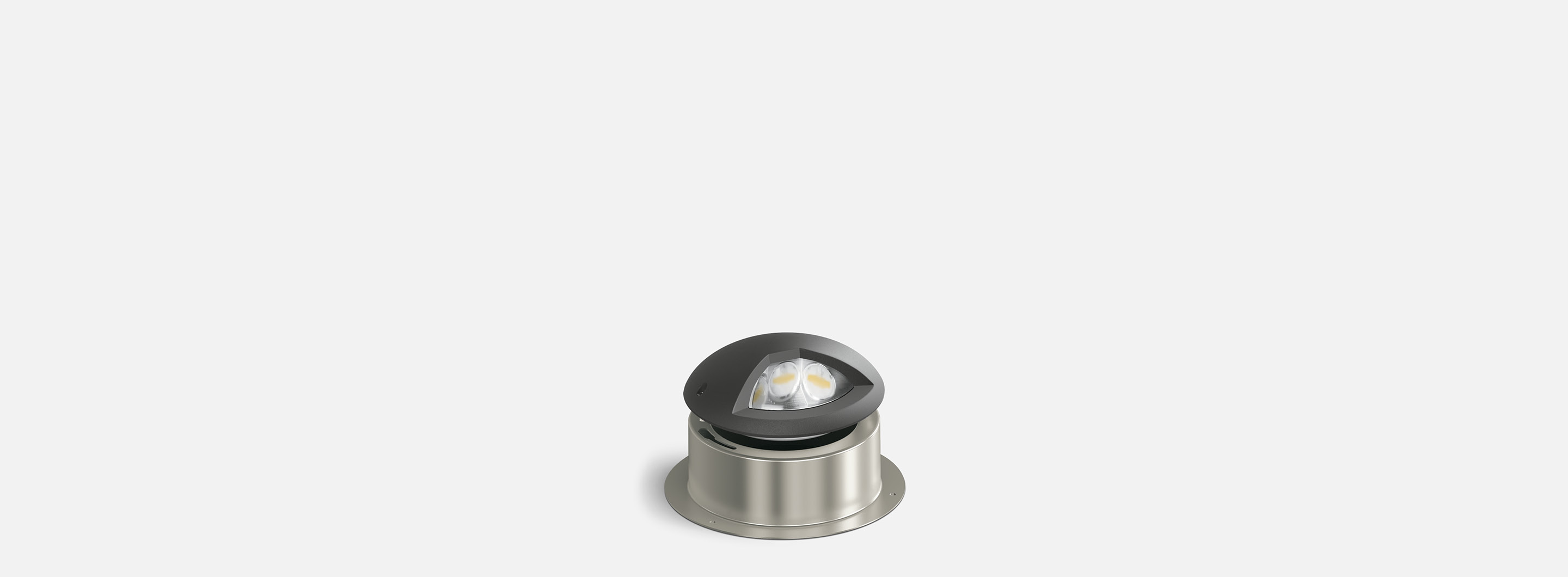

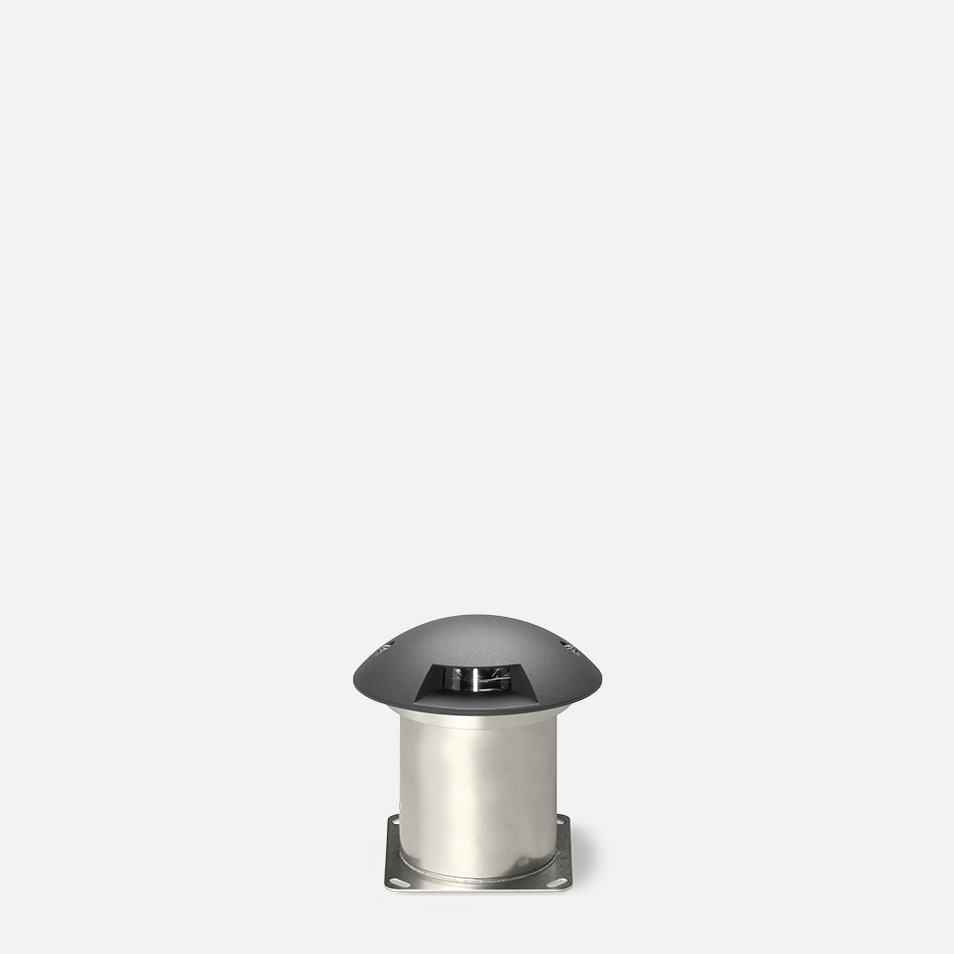

In-grade floodlight
Wall washer

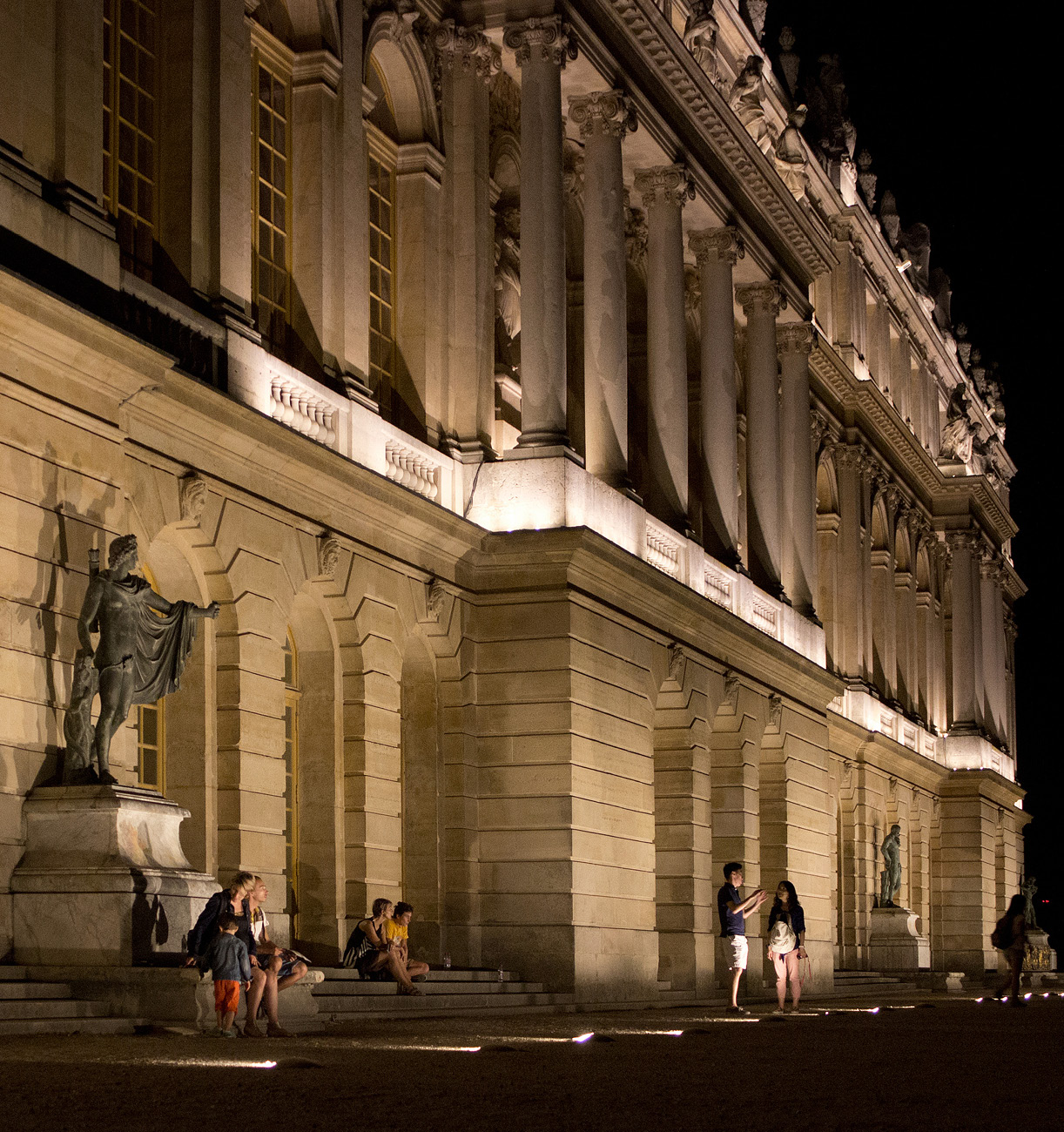

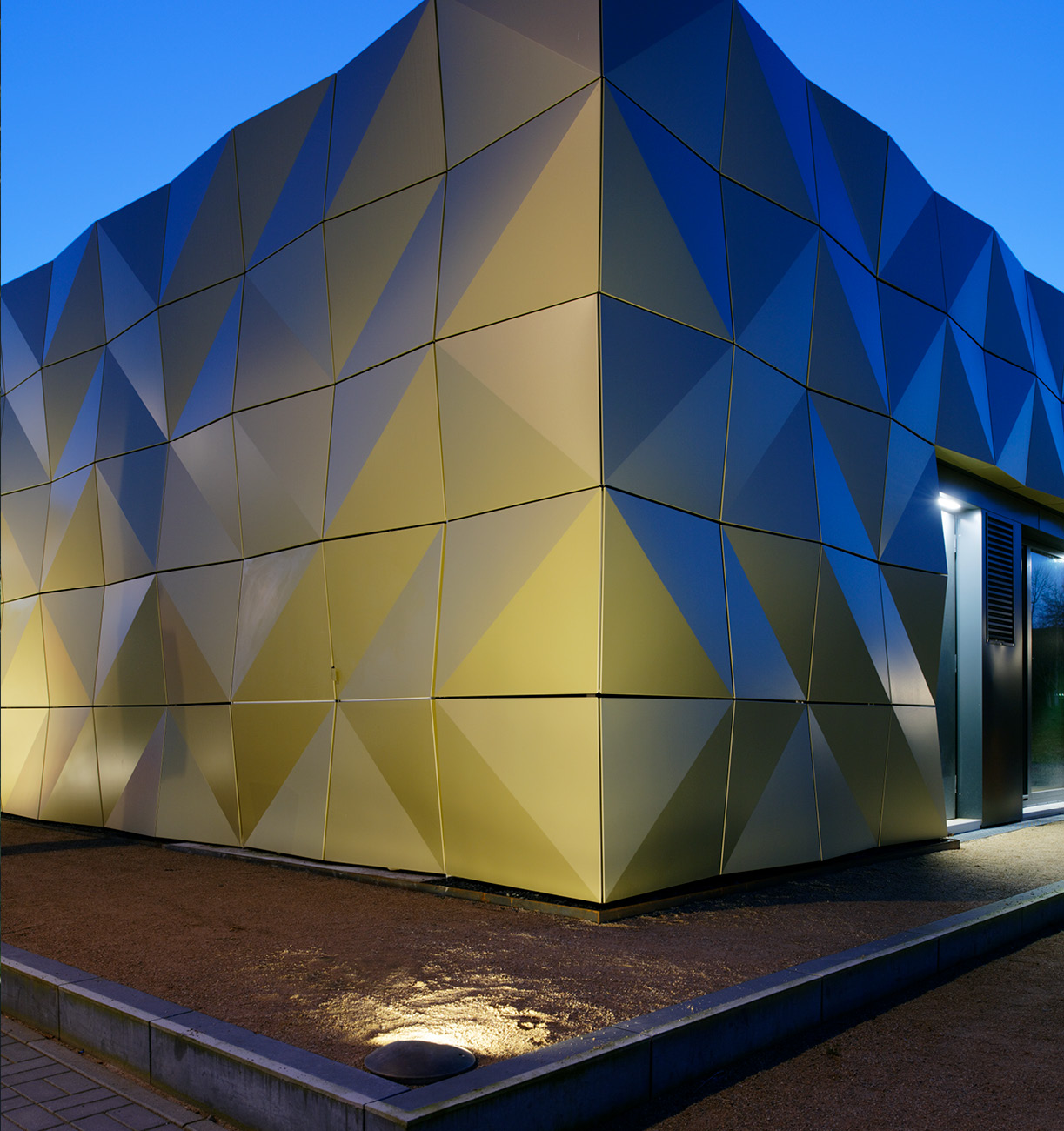

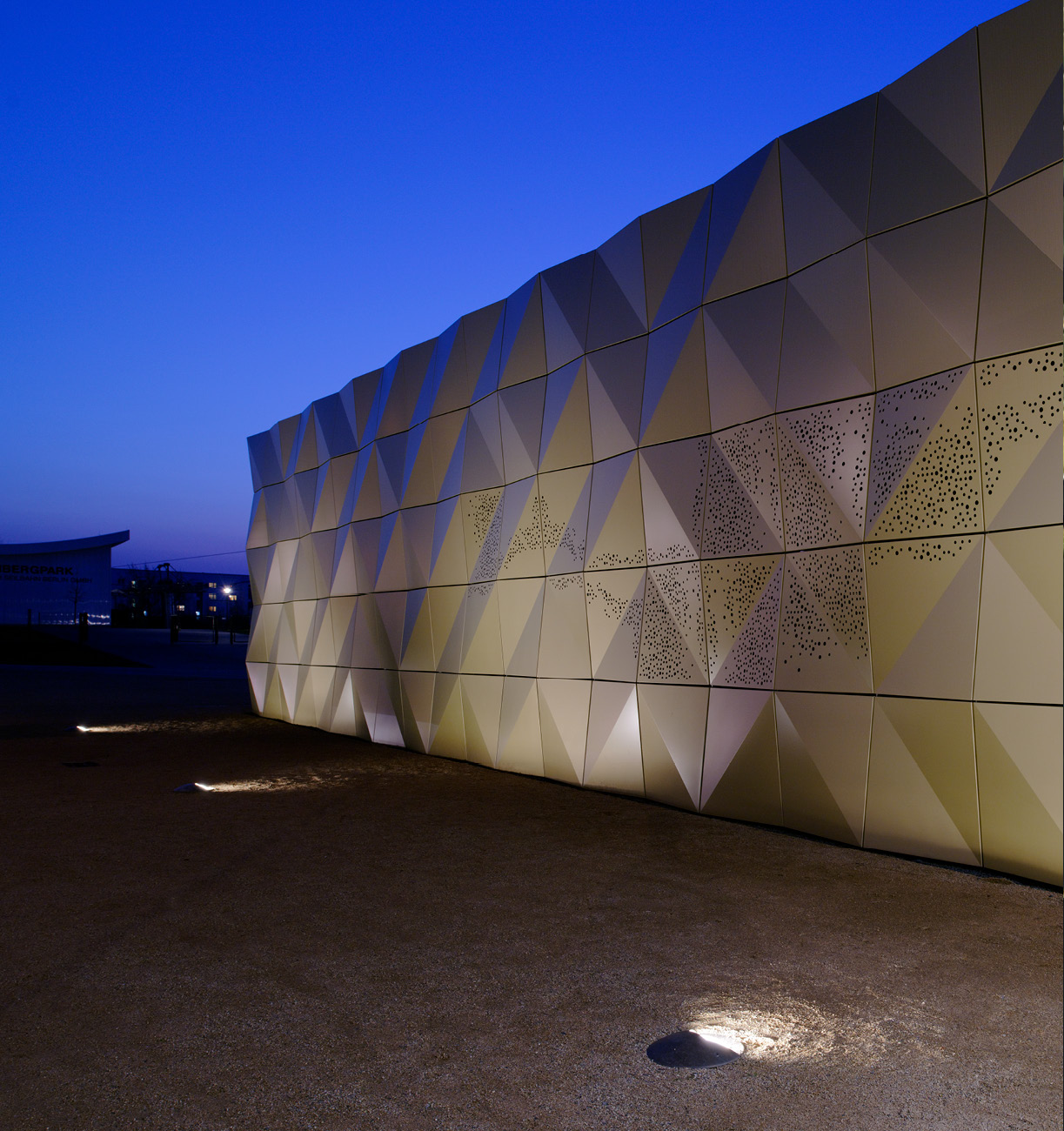

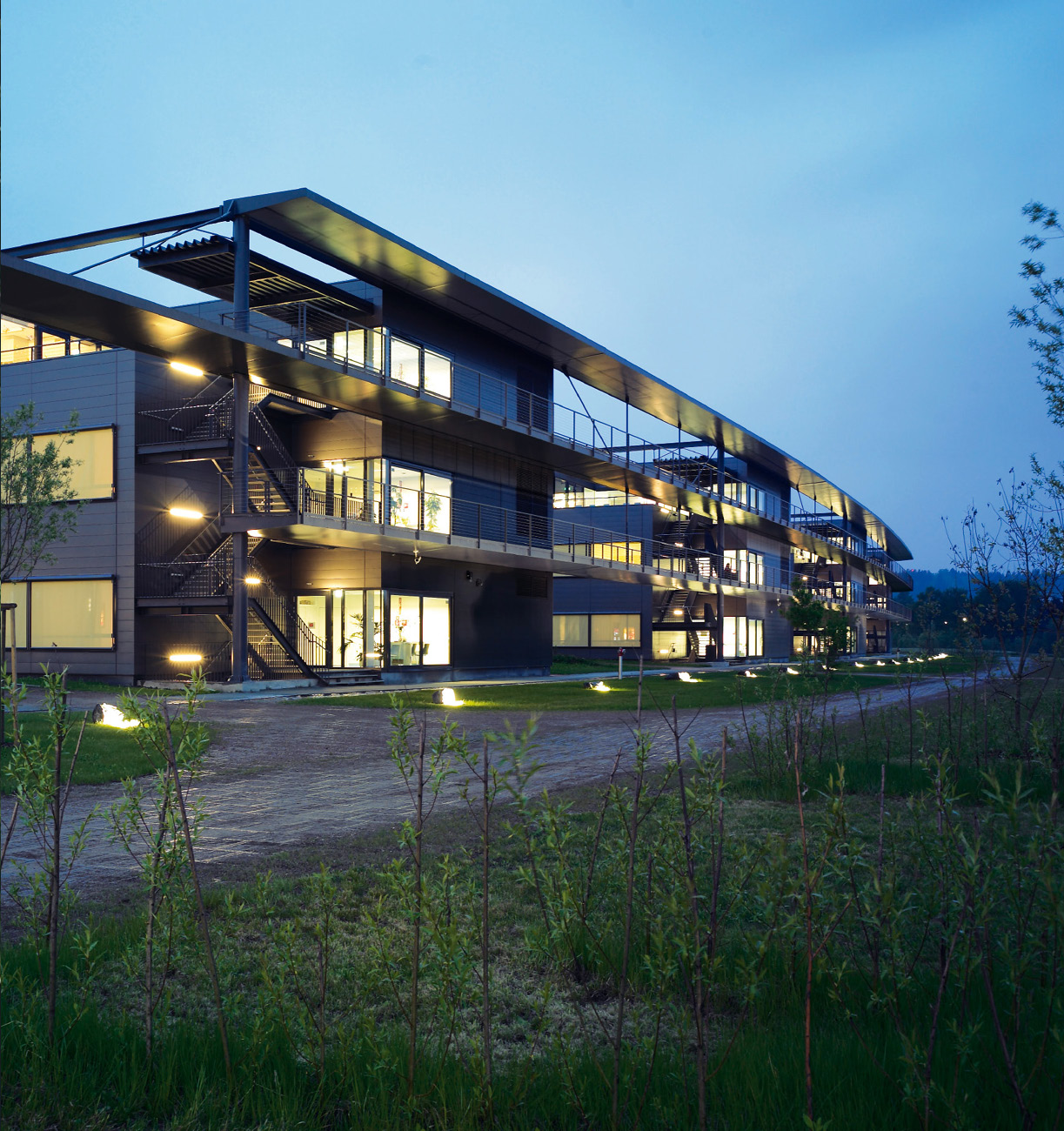

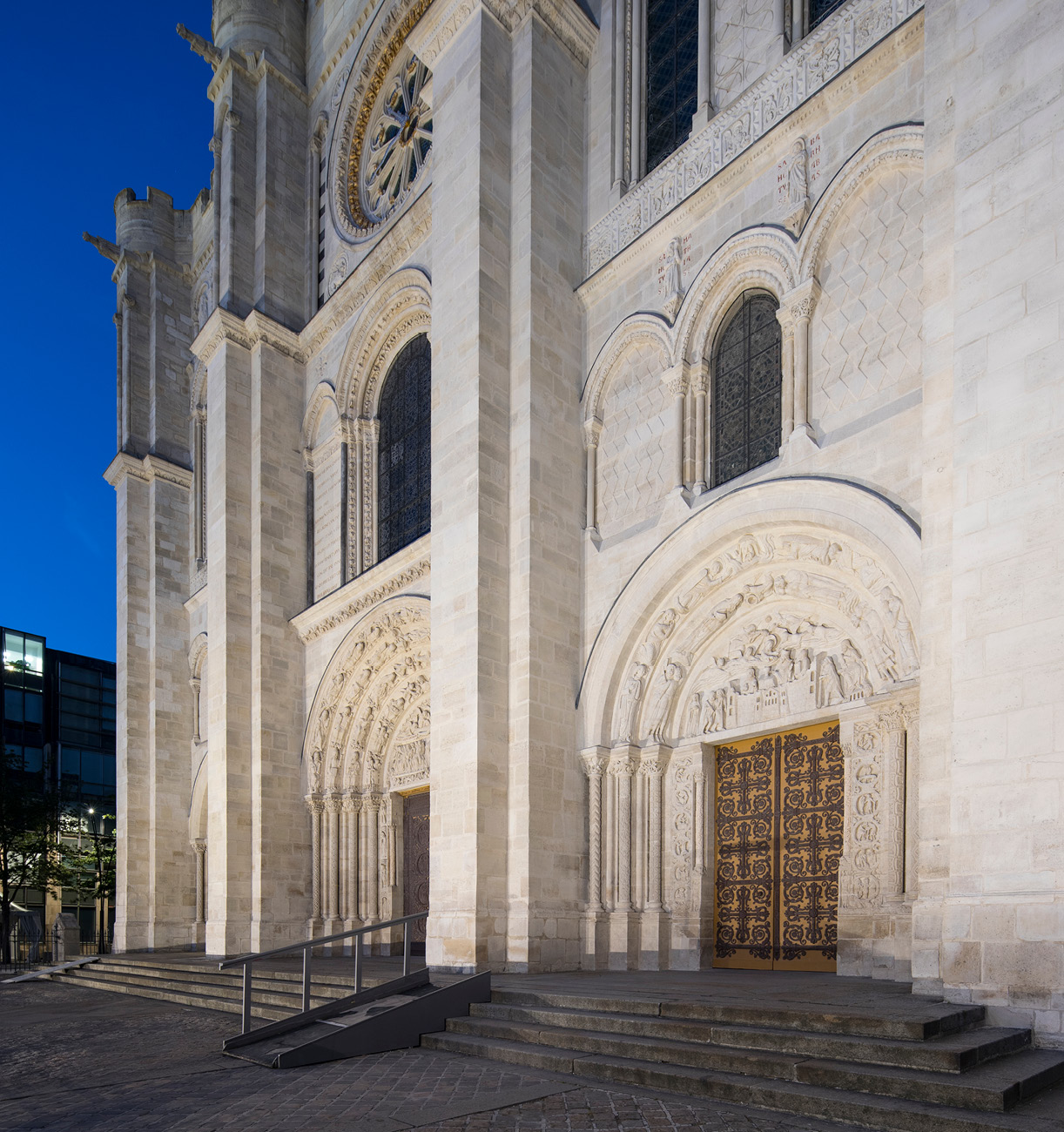

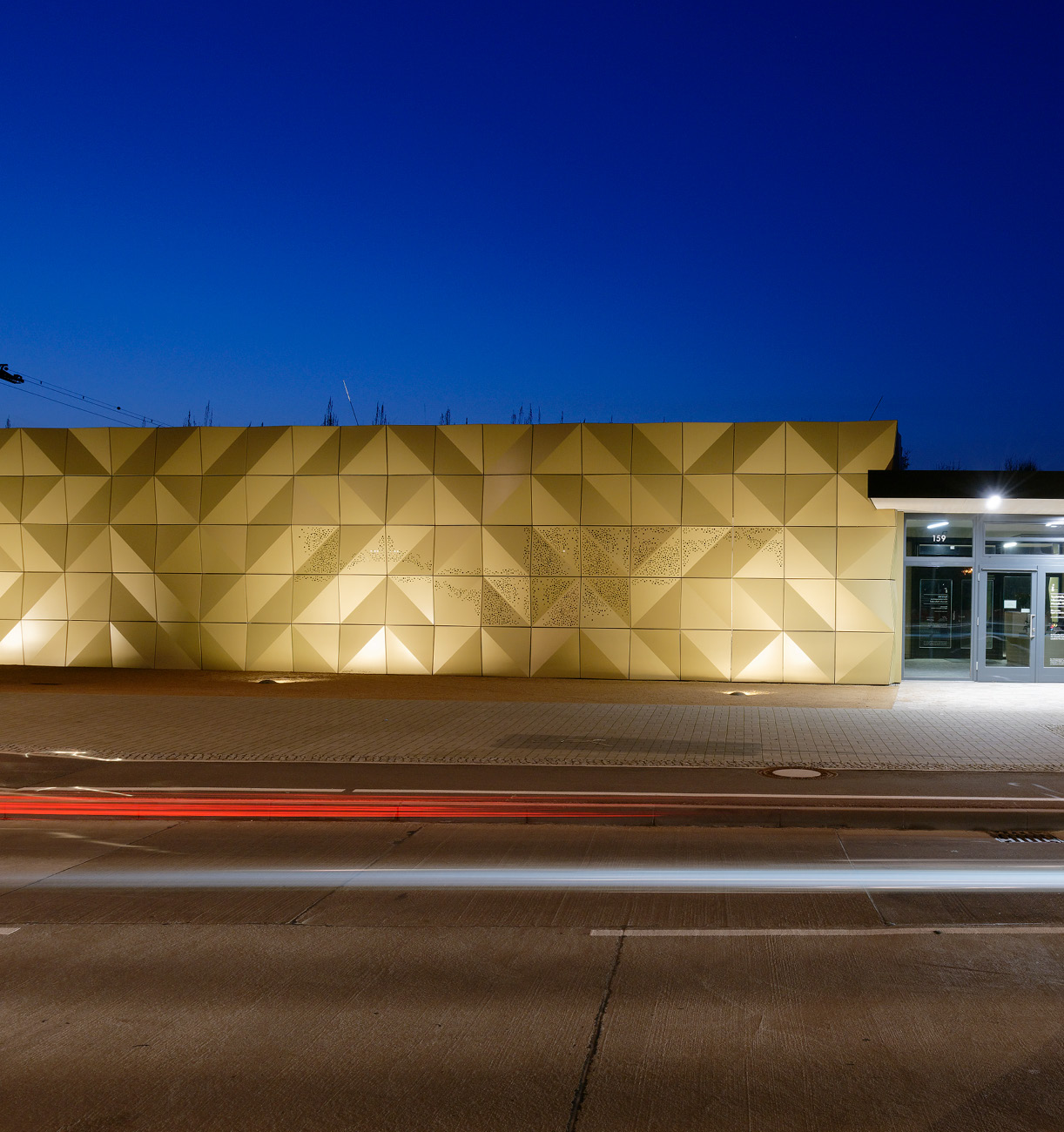

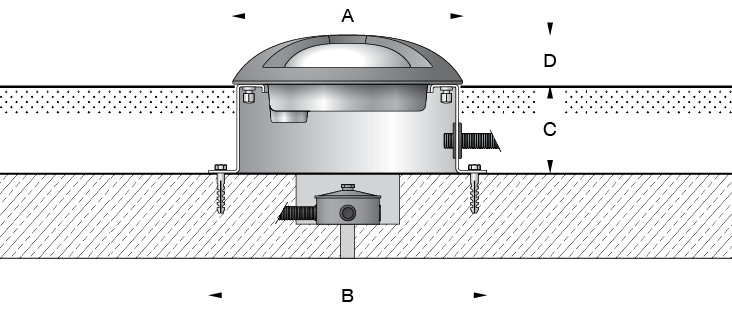

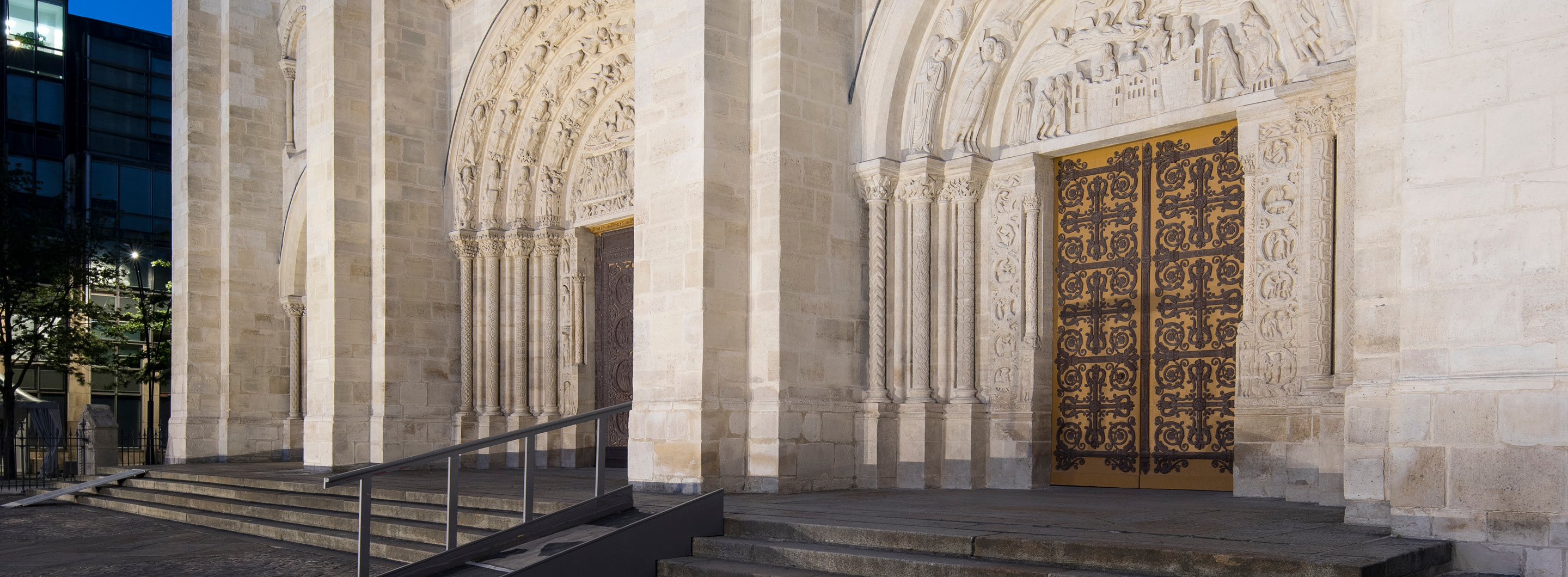

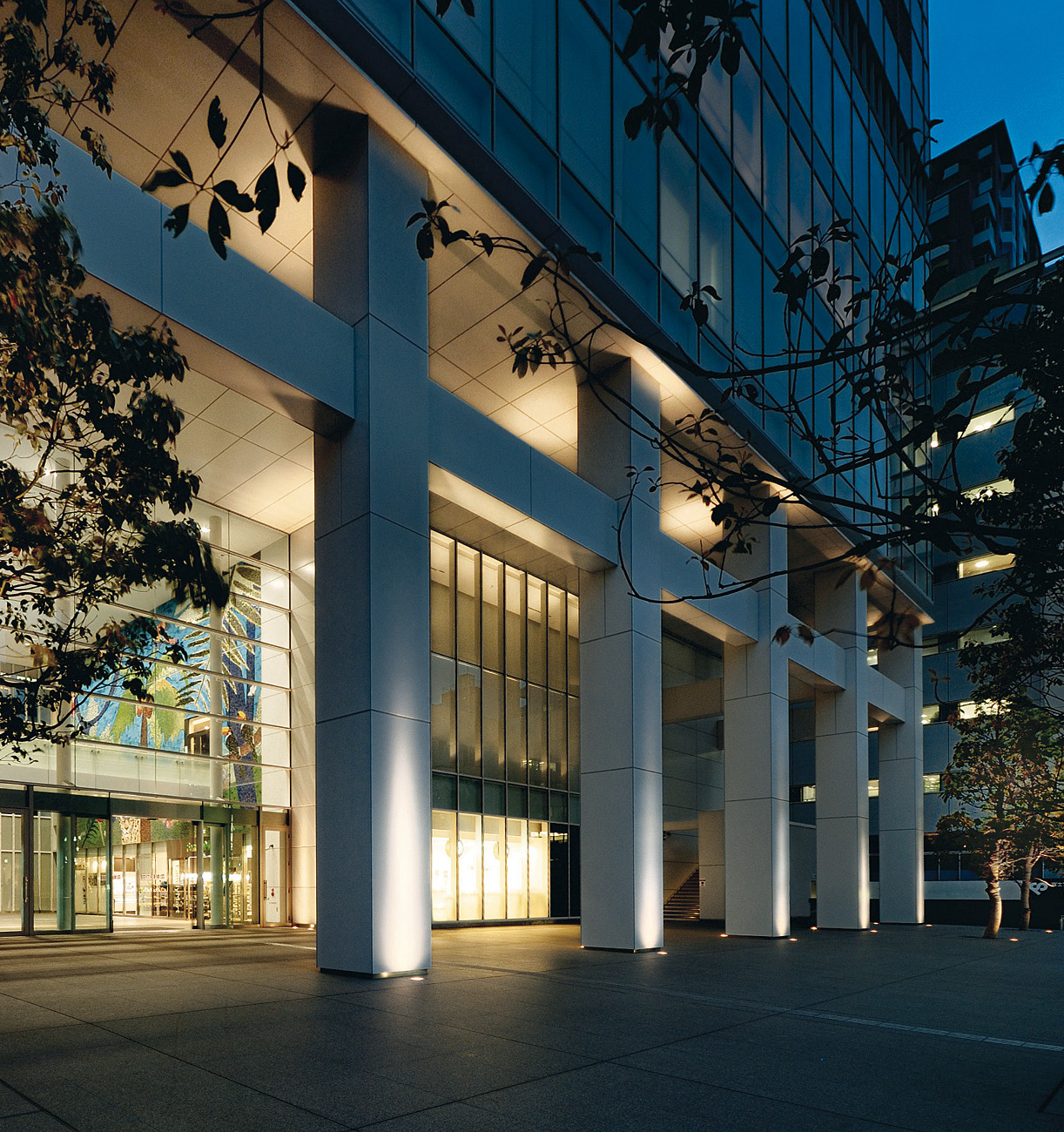

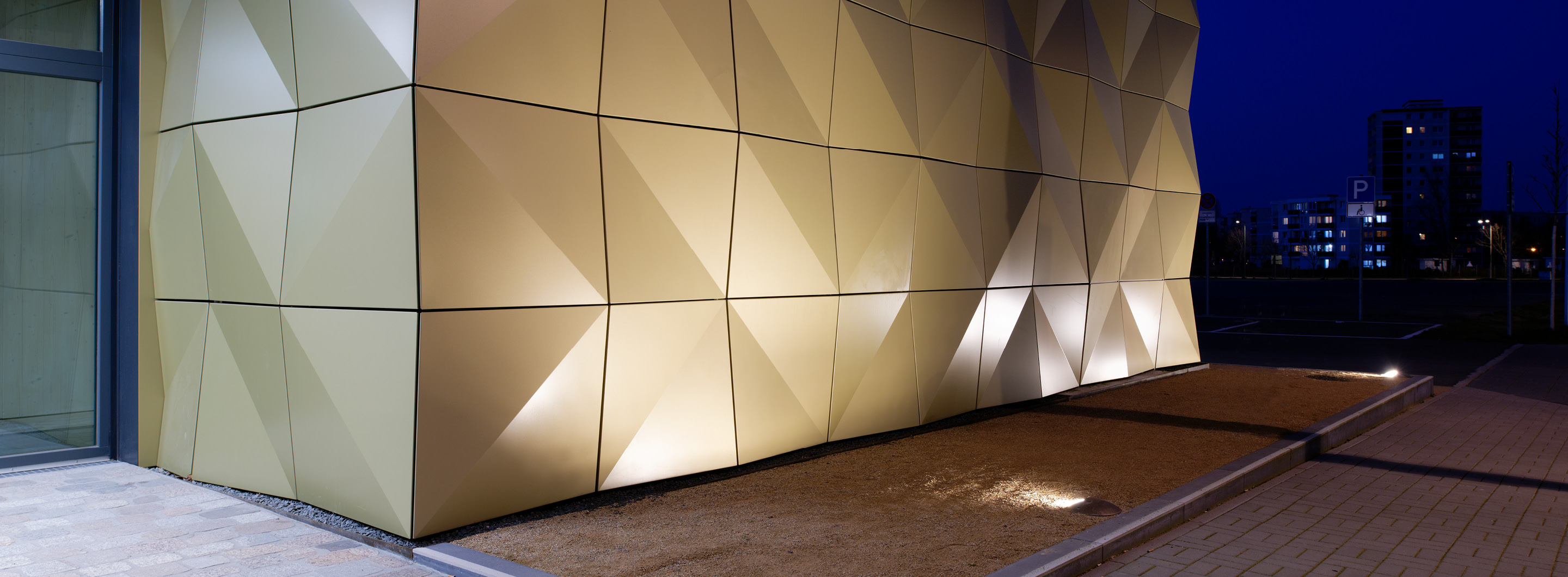

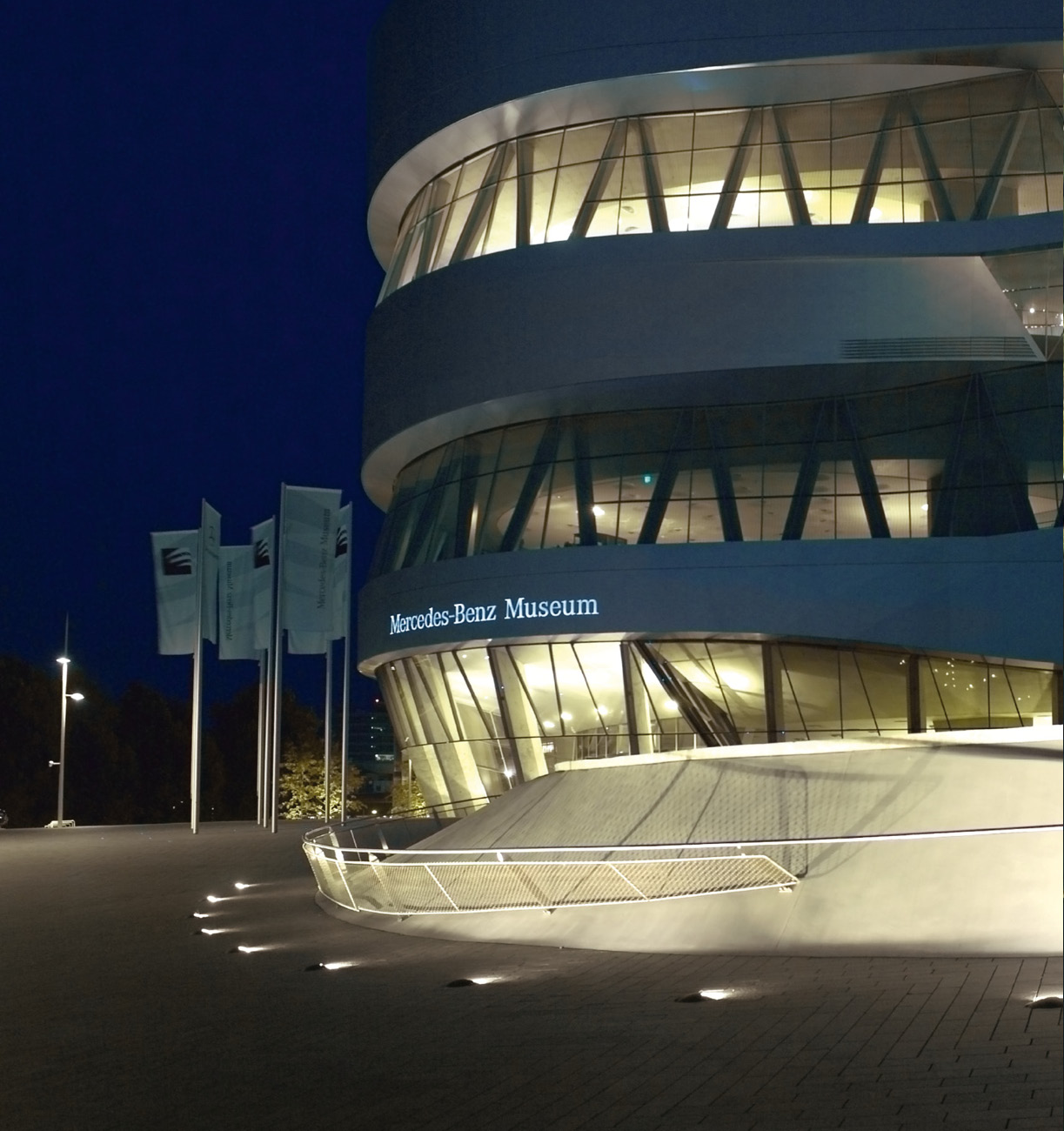

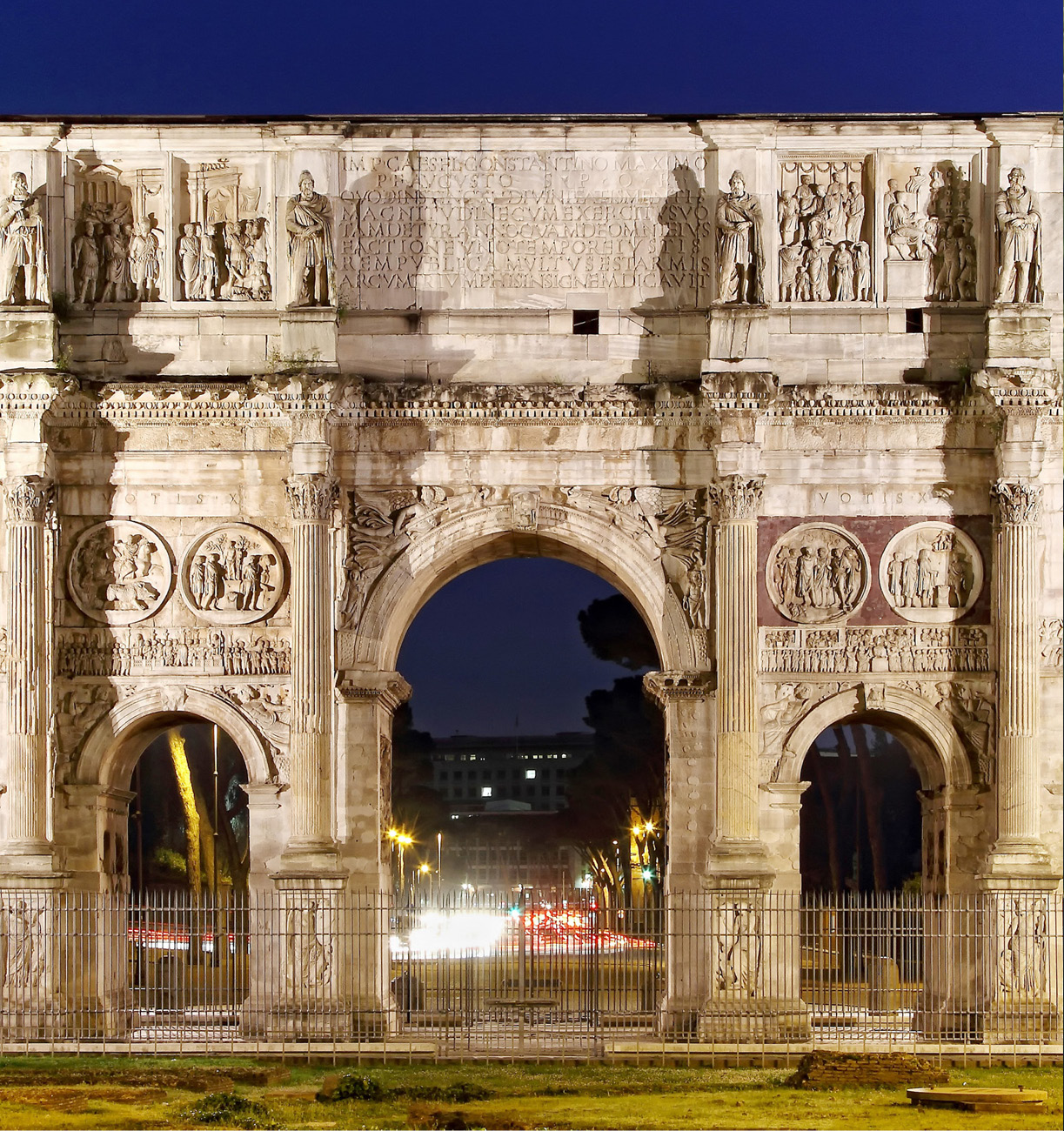

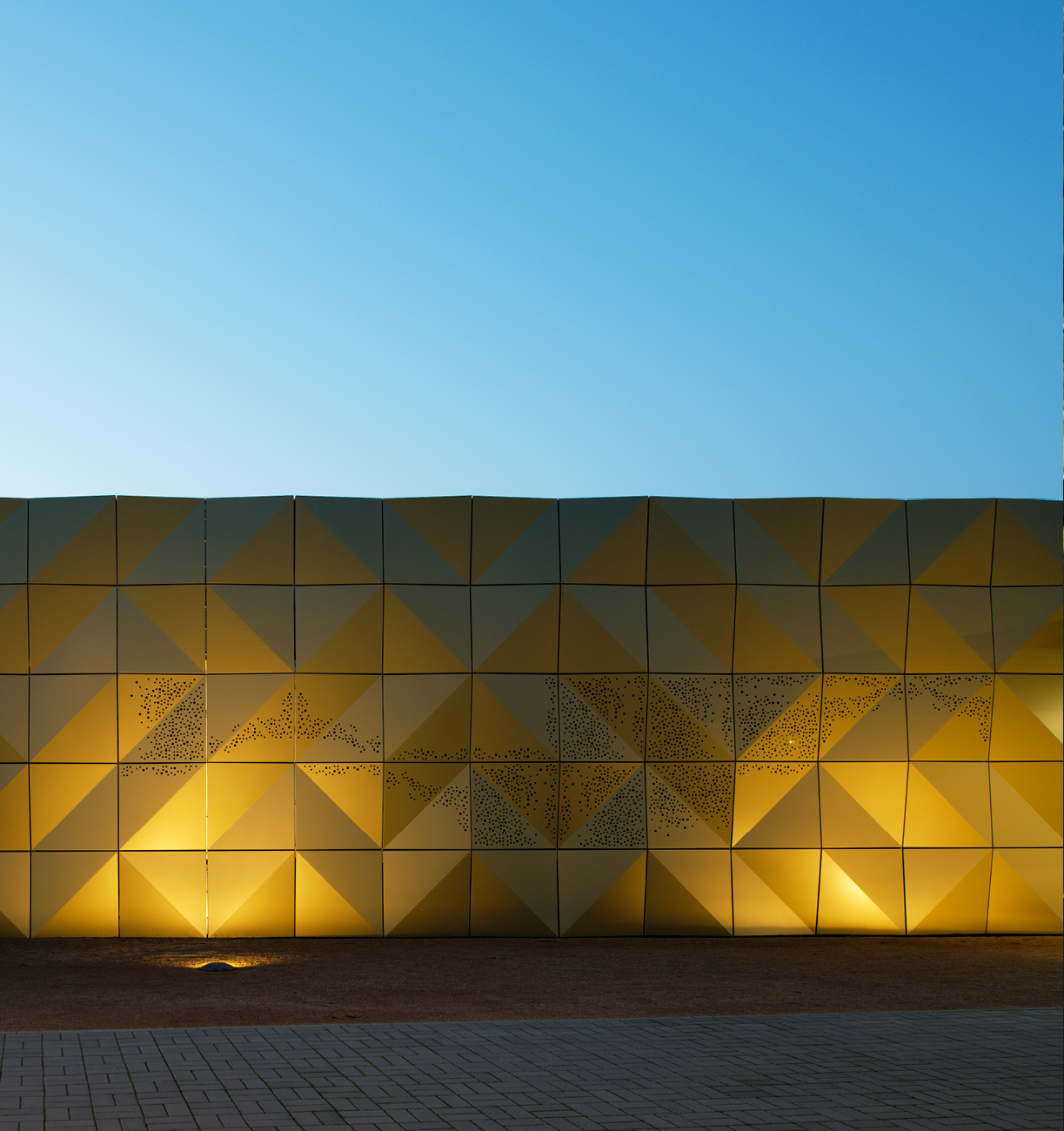

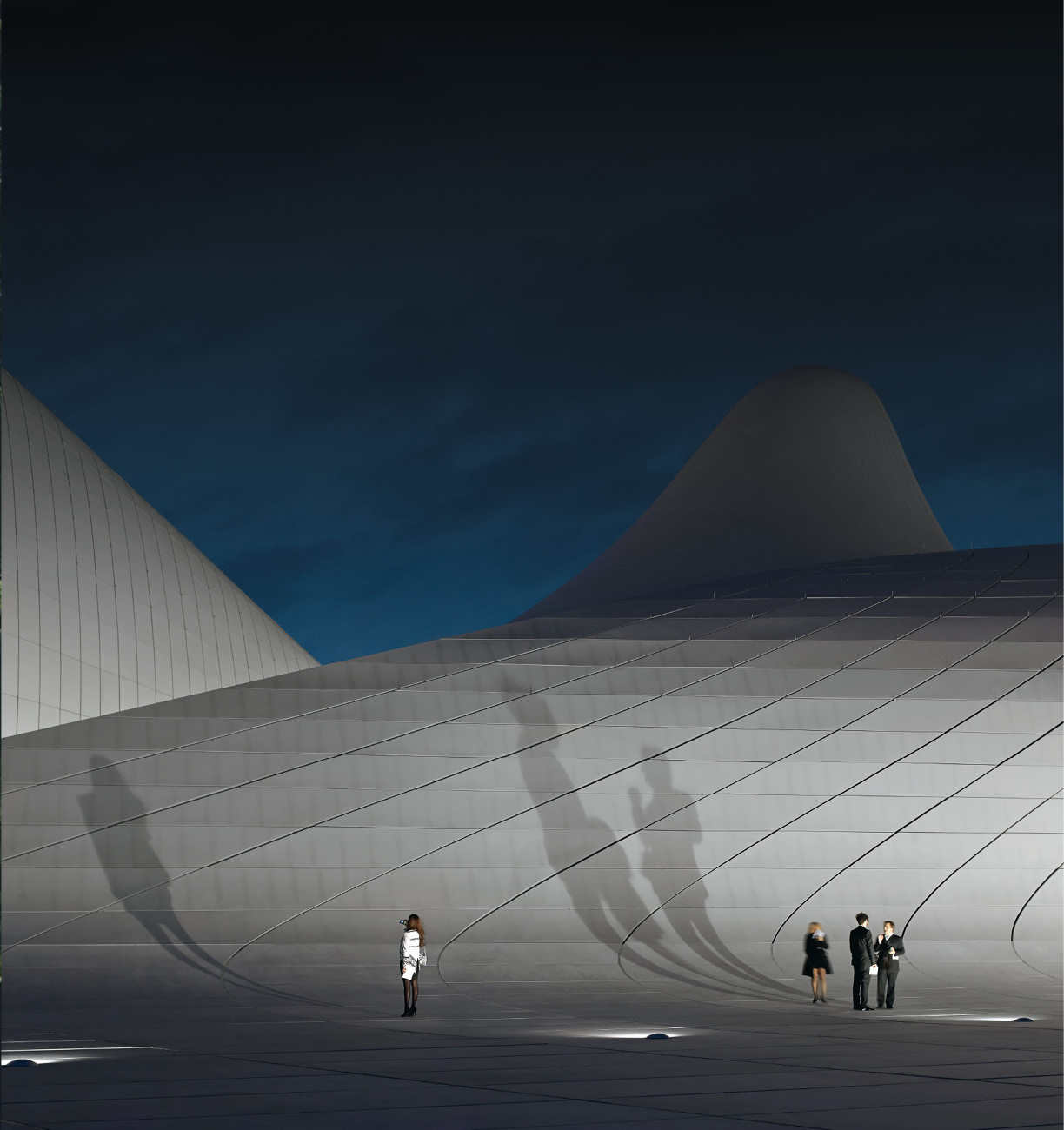

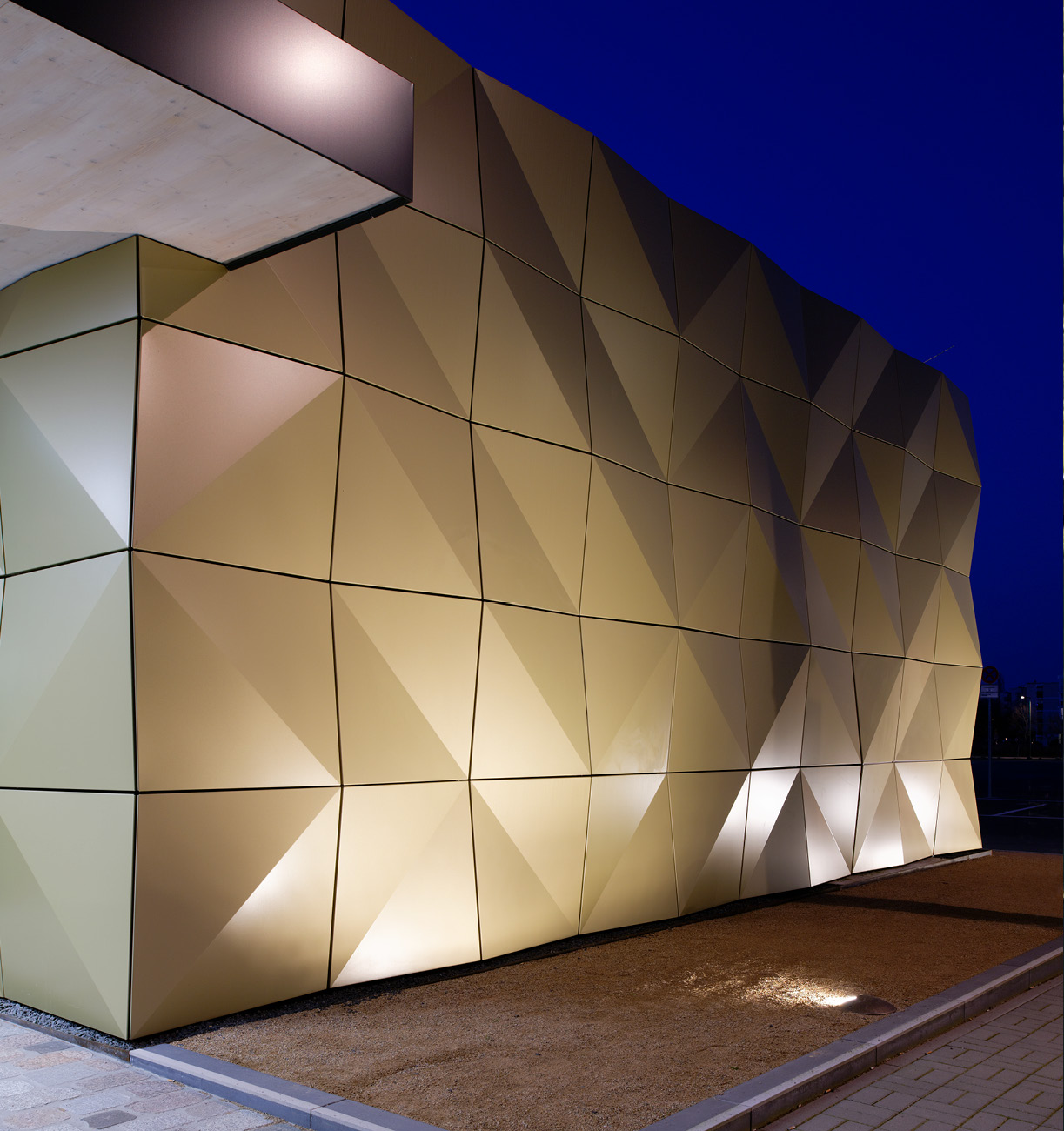

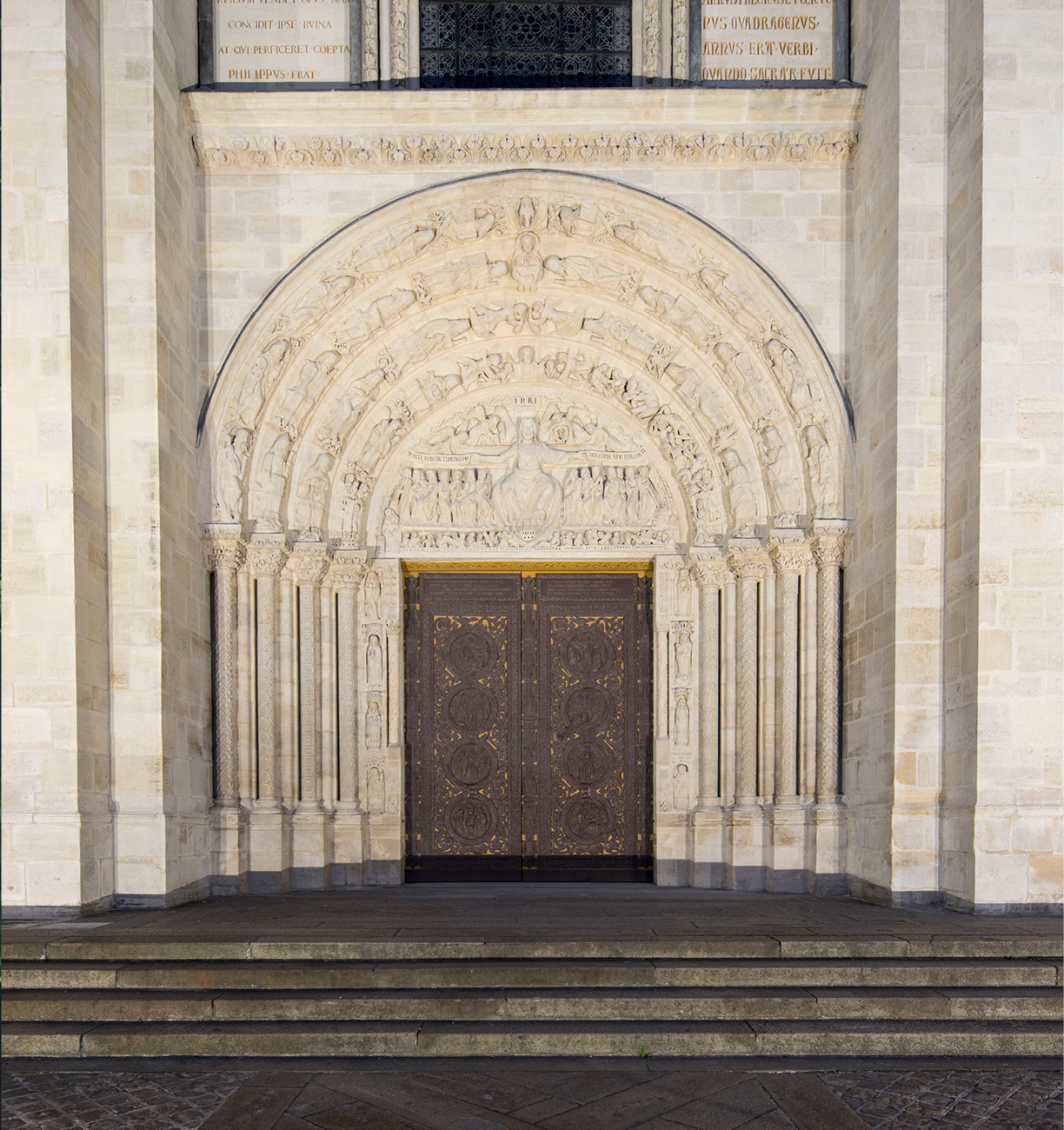

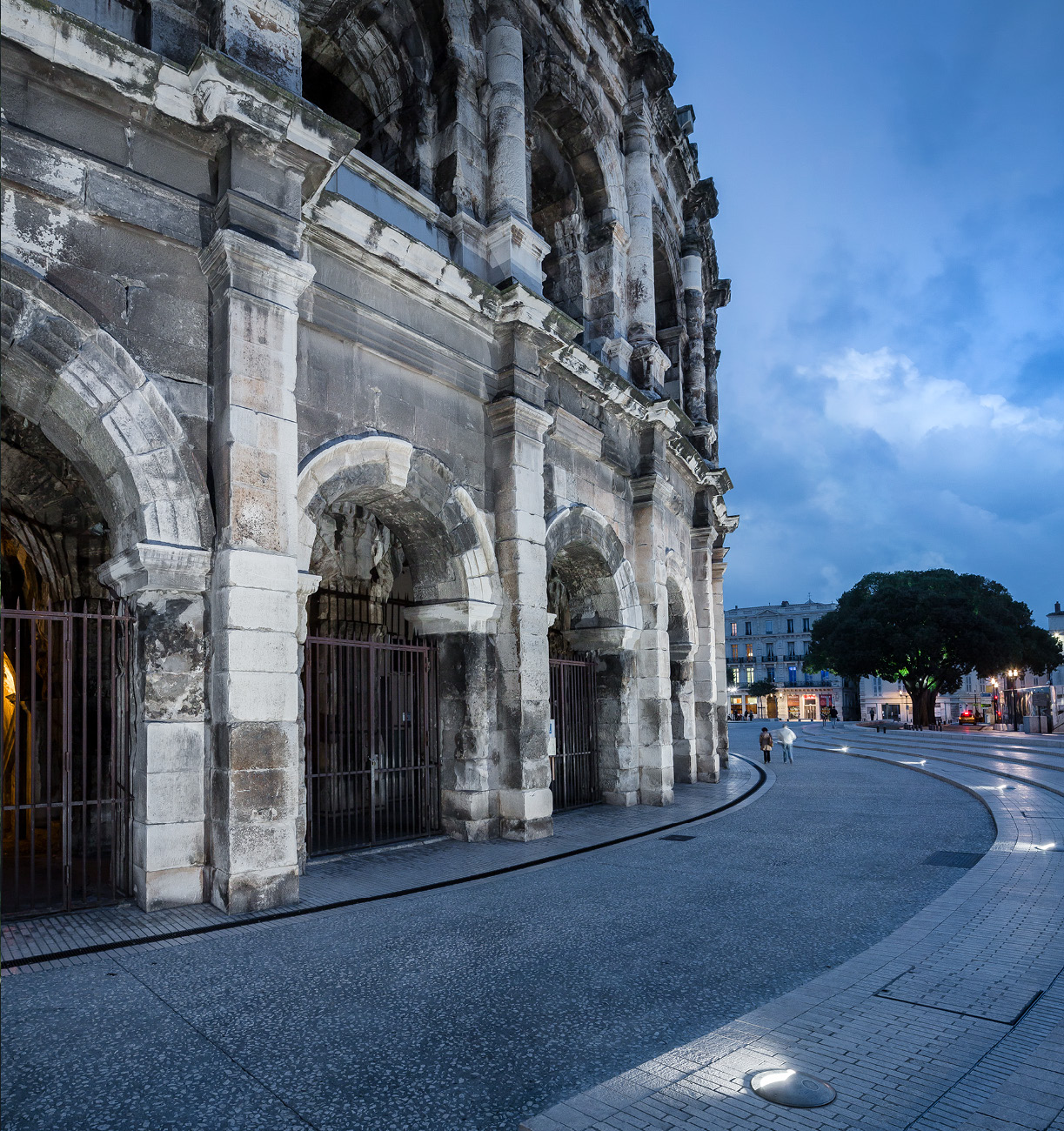

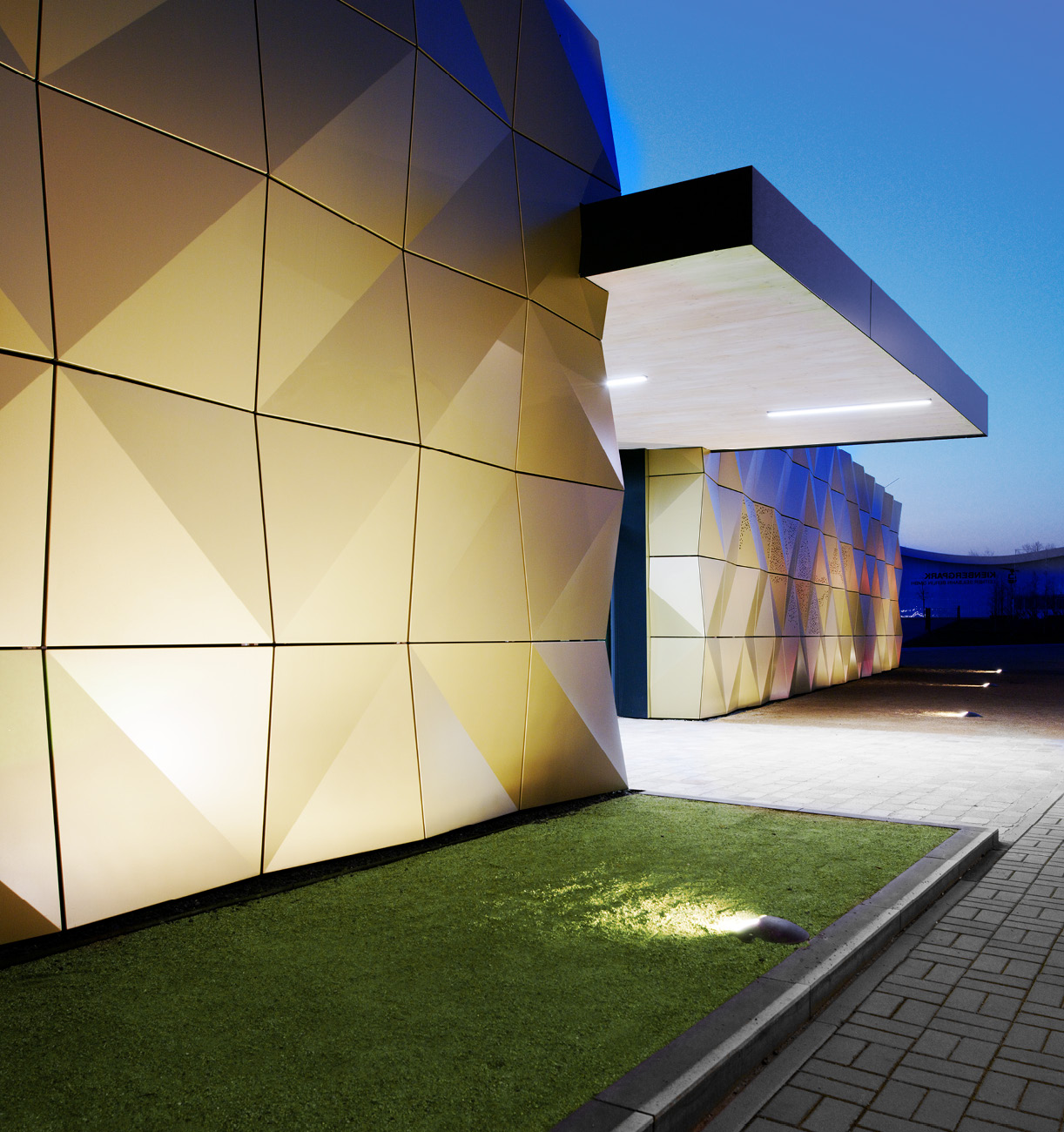

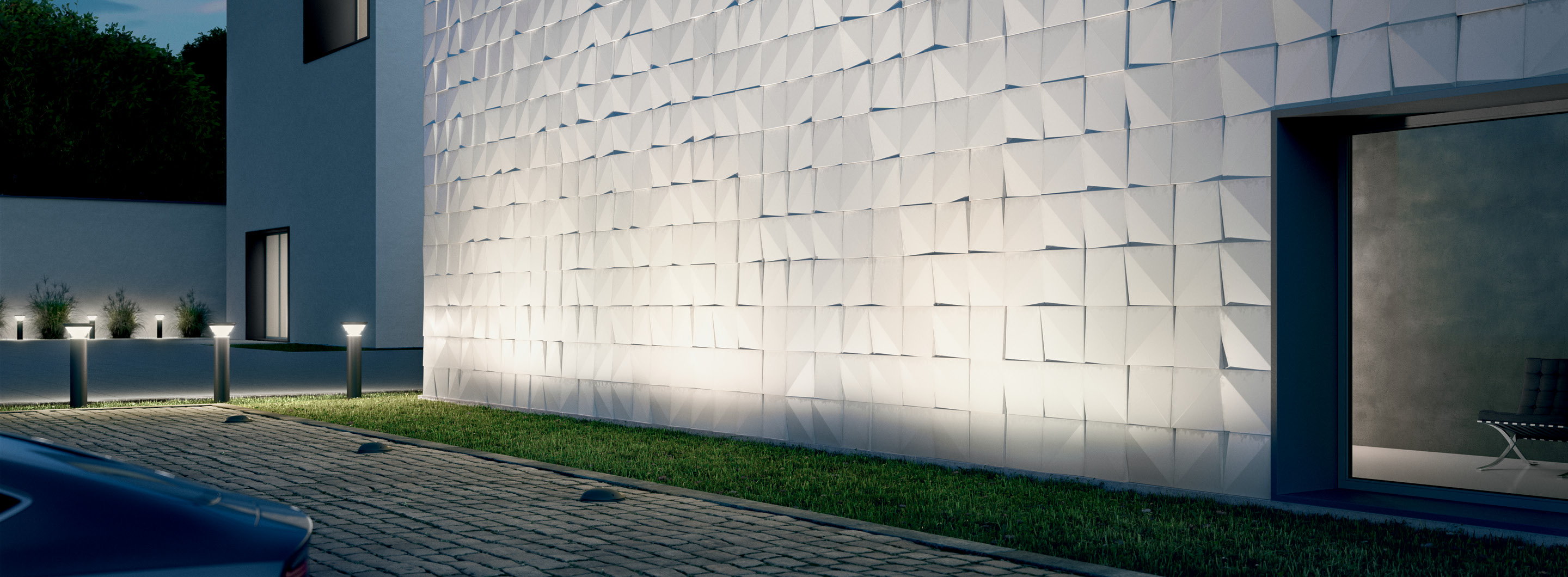

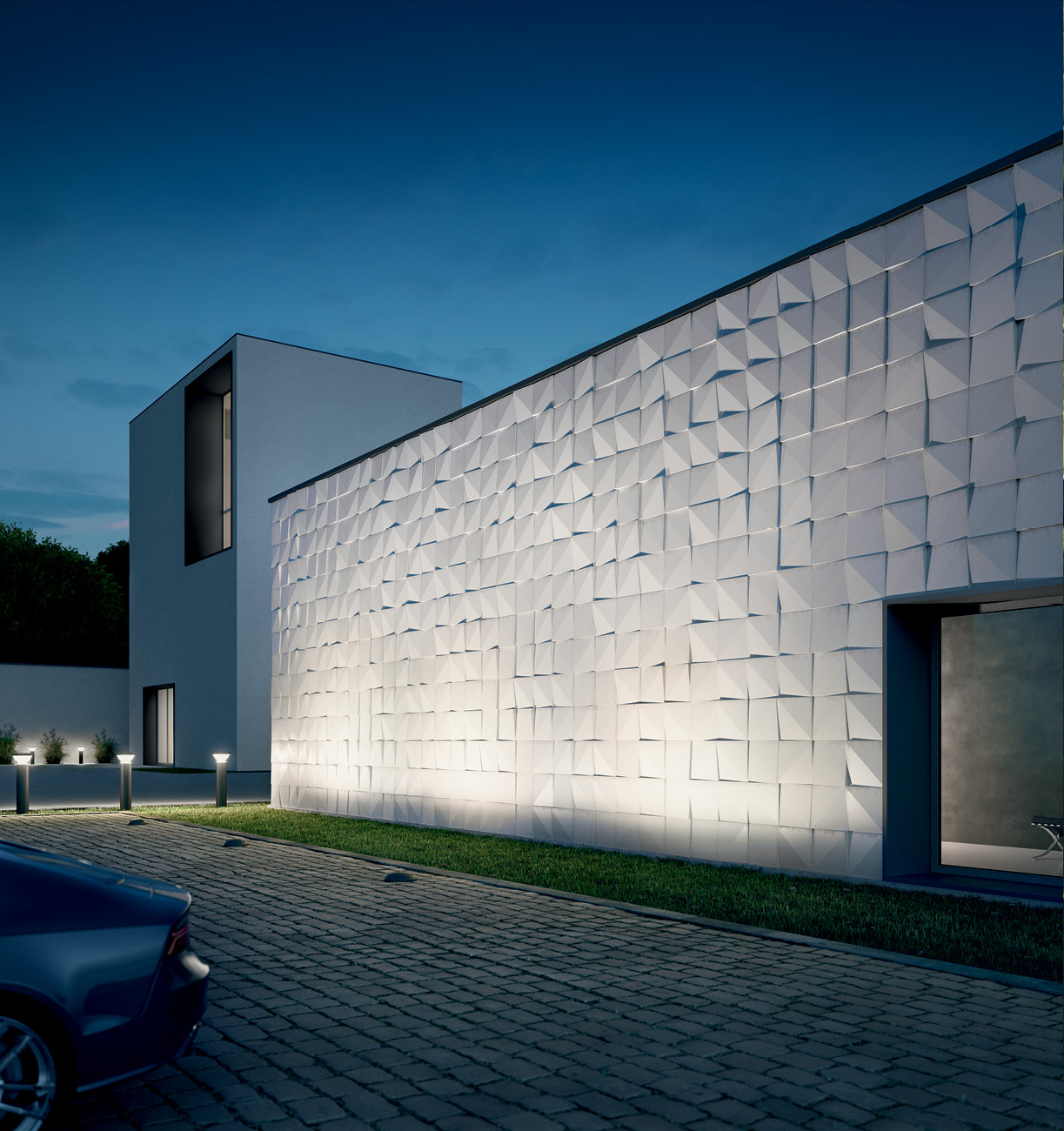

The design of these in-grade floodlights makes it possible to fully illuminate a vertical surface, from the ground up to the edge of the roof. The lower limit of the light distribution is a straight line, without the usual “scallop”. The luminaires are mounted in a recessed housing on a foundation that absorbs the pressure loads. The luminaires can be driven over by vehicles with pneumatic tires. The luminaires must not be used in areas where they are exposed to horizontal loads caused by braking, accelerating and changes of direction.
Die-cast aluminum with cast-bronze cover · Installation housing made of stainless steel Hardened crystal class · Silicone diffusing lens · Reflector made of pure anodized aluminum

All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure ® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.

LED color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
NRTL listed to North American Standards · Suitable for wet locations
Protection class IP 67
