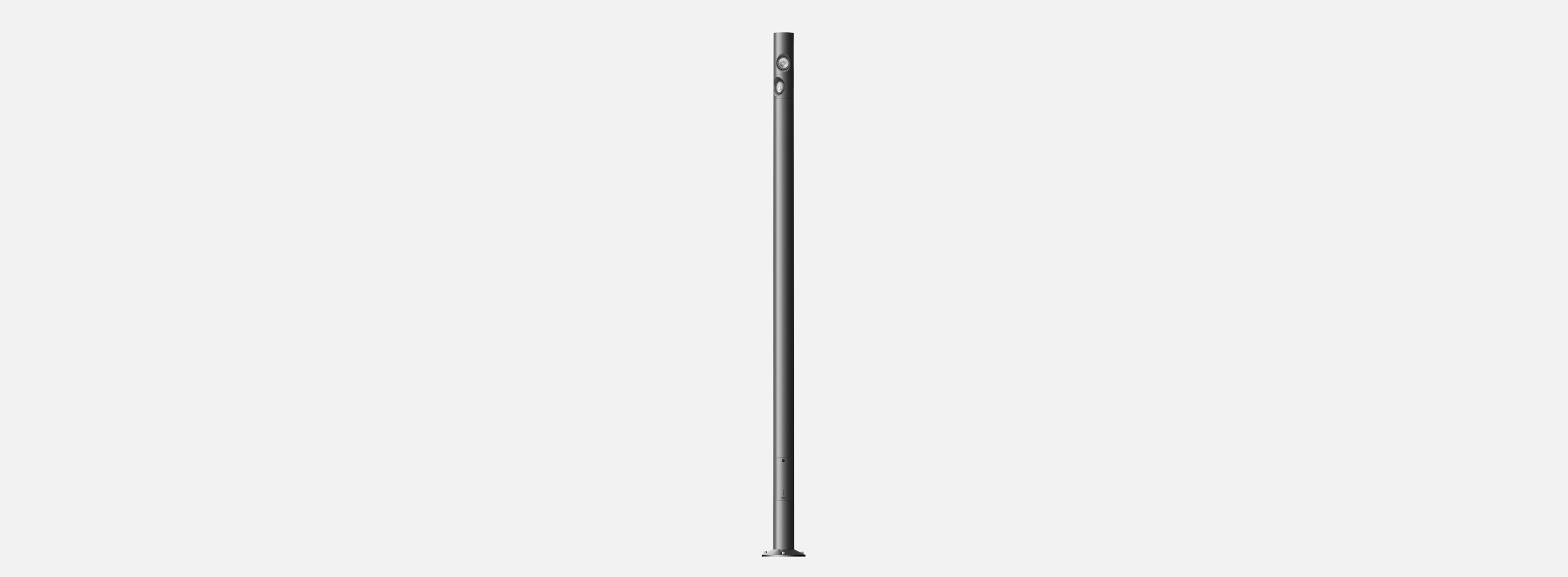

System building element pole

Base plate · 2 adjustable floodlights

	LED				β	A	B	C
84 717	24.0W			2824 lm	22°	6 ¾	153 ⅜	13 ⅜

Options

B71215 - Concentric ring louver
B10014 - Elliptical spread lens
CUS - Custom finish
RAL - RAL finish
MGU - Marine grade undercoat

Included (available for pre-shipment)

B79992 - Anchorage kit

Downloads

Spec sheet
IES files
Photometric summary
Submittal drawing (DXF)
Submittal drawing (PDF)
Revit BIM model
Installation instructions
Estimated Lead-Time

Technical Specs

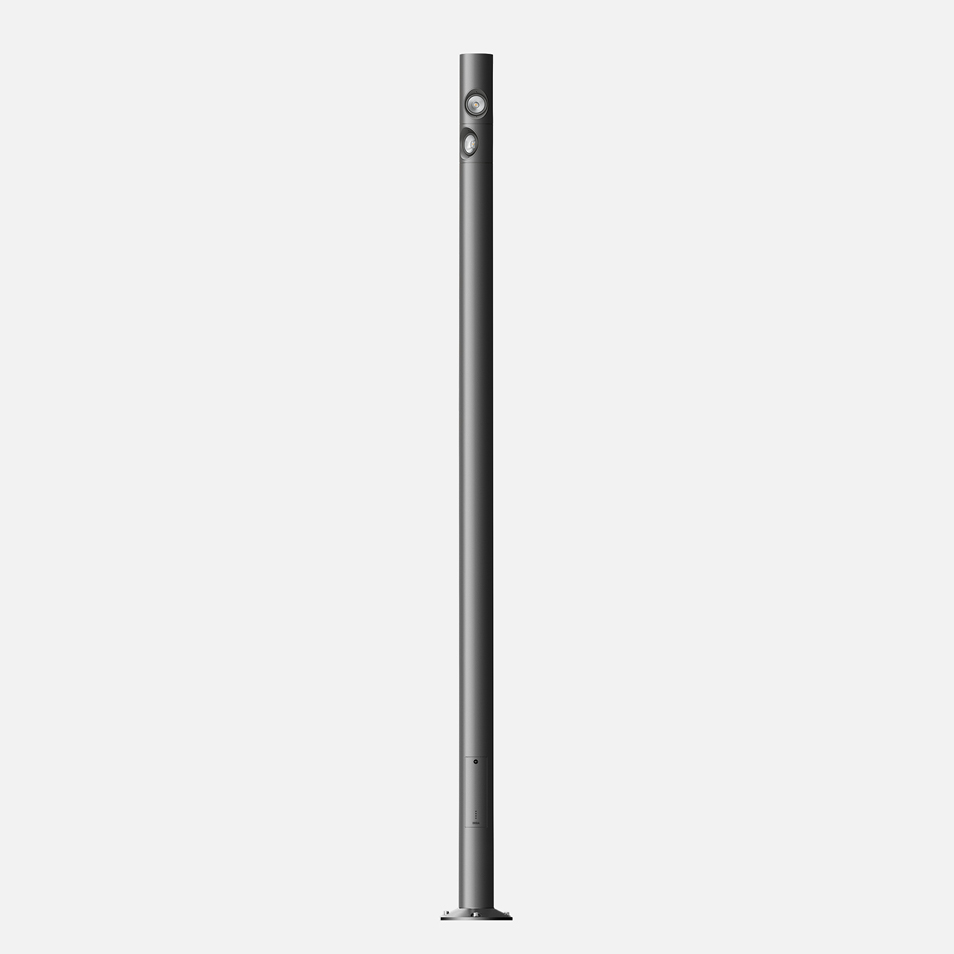

System building element pole
Base plate · 2 adjustable floodlights

Building elements are luminous design features for public spaces. They are ideally suited for delineating and structuring spaces such as plazas, building entrances, and atria. Integral floodlights may be used to illuminate architectural details, landscaping, or signage. Floodlights have an adjustable inclination angle of 30° and can be rotated 360°. An accompanying building element head must be selected for proper installation. Both modules can be joined together easily during installation using an interlocking mechanism.

2700K (K27), 3000K (K3), 3500K (K35), 4000K (K4)

All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.

NRTL listed to North American Standards, suitable for wet locations

IP 65
