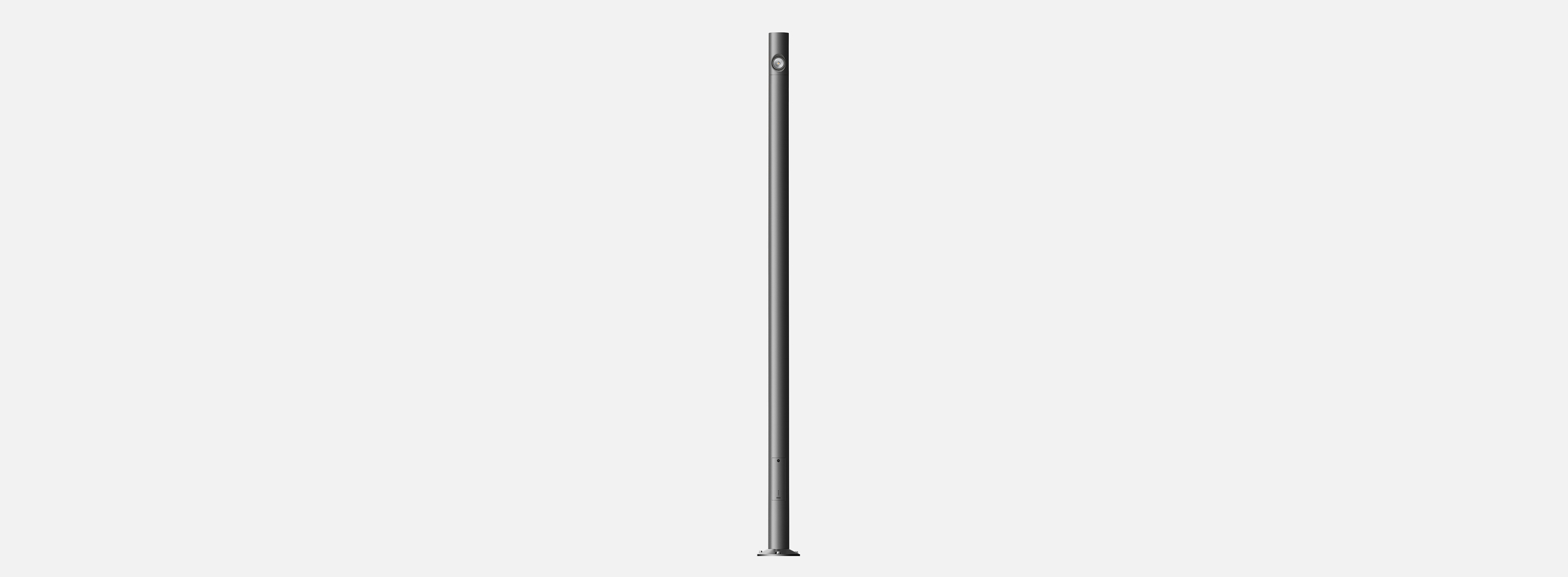

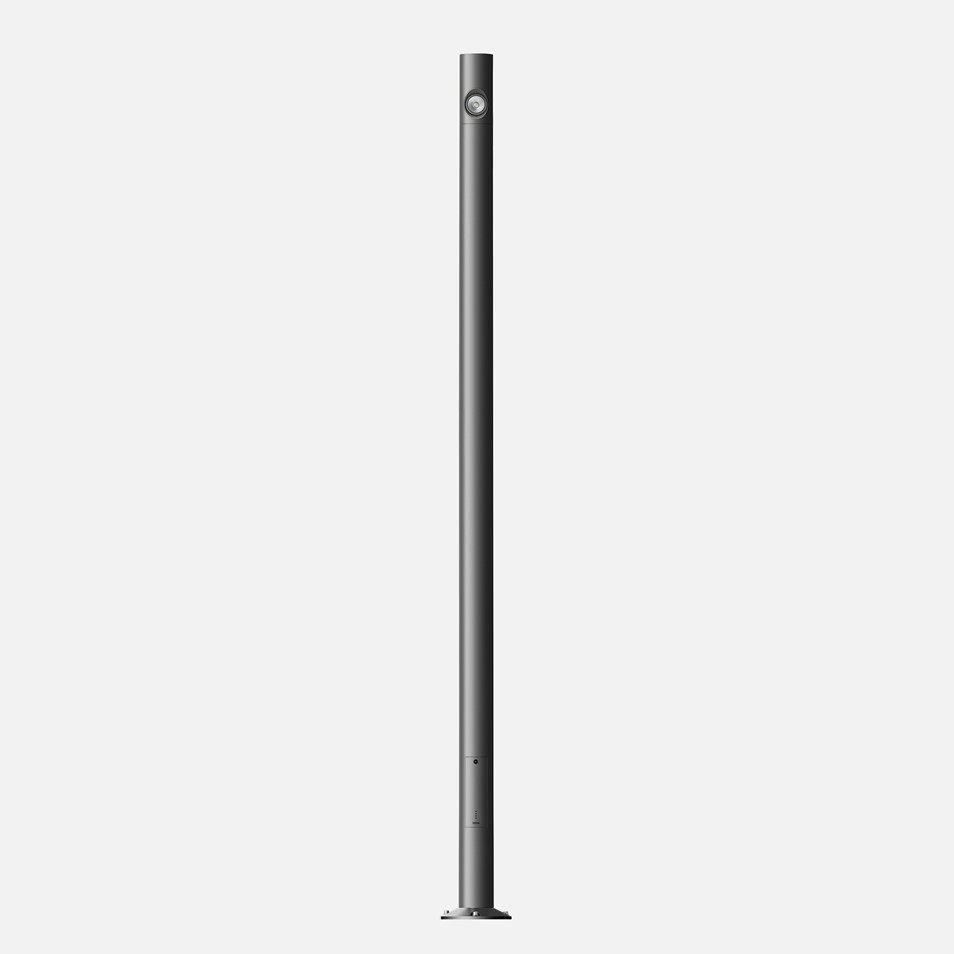

System building element pole

Base plate · 1 adjustable floodlight

	LED				β	A	B	C
84 715	12.0W			1412 lm	22°	6 ¾	153 ⅜	13 ⅜

Options

B10014 - Elliptical spread lens
B71215 - Concentric ring louver
CUS - Custom finish
RAL - RAL finish
MGU - Marine grade undercoat

Included (available for pre-shipment)

B79992 - Anchorage kit

Downloads

Spec sheet
IES files
Photometric summary
Submittal drawing (DXF)
Submittal drawing (PDF)
Revit BIM model
Installation instructions
Estimated Lead-Time

Technical Specs

System building element pole
Base plate · 1 adjustable floodlight

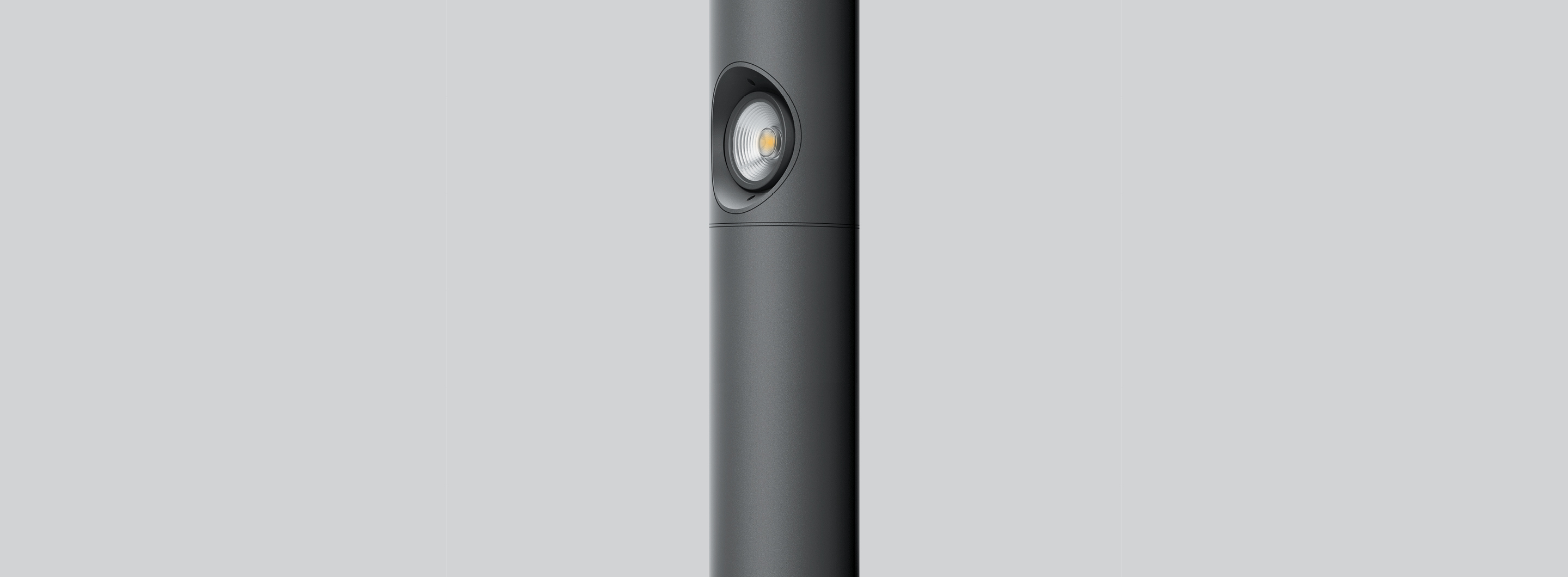

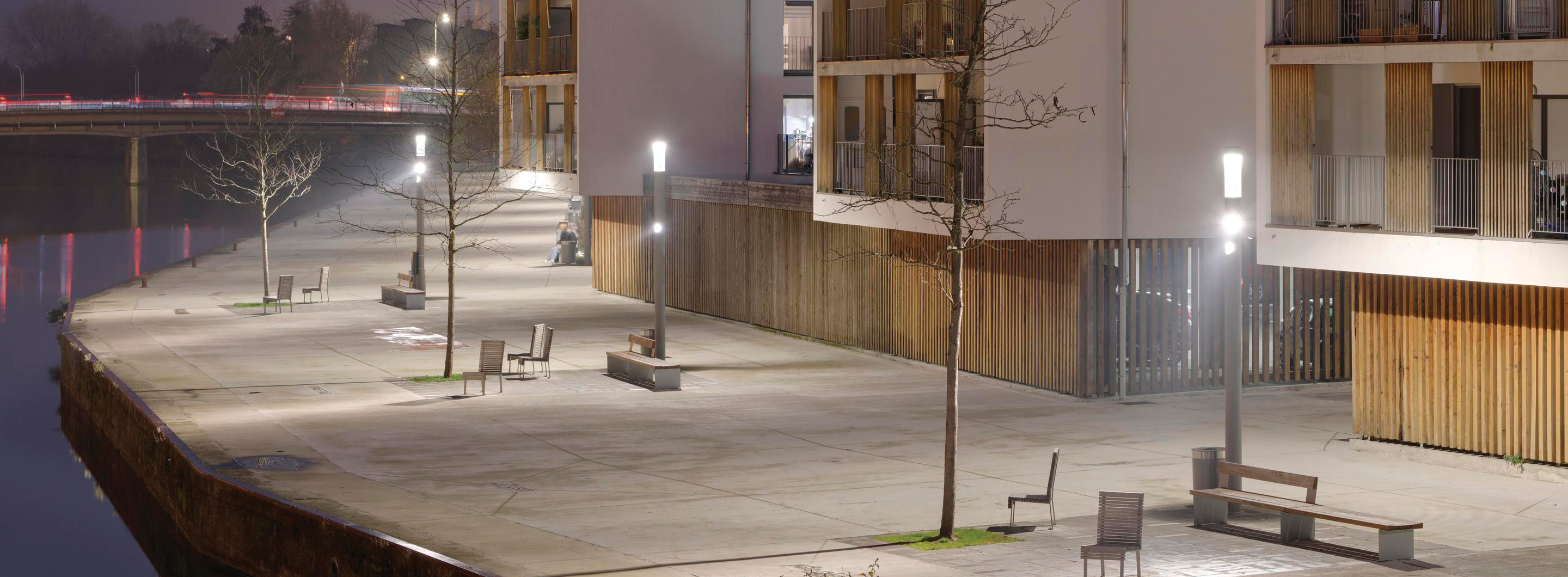

Building elements are luminous design features for public spaces. They are ideally suited for delineating and structuring spaces such as plazas, building entrances, and atria. An integral floodlight may be used to illuminate architectural details, landscaping, or signage. The floodlight has an adjustable inclination angle of 30° and can be rotated 360°. An accompanying building element head must be selected for proper installation.

2700K (K27), 3000K (K3), 3500K (K35), 4000K (K4)

All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.

NRTL listed to North American Standards, suitable for wet locations

IP 65
