On-ground luminaire

Wide beam
Wide beam
  LED     A B C D
77 735 12.3W 648 lm
7
8 ¼
2
4
Options
  • AMB - Amber LED
  • MGU - Marine grade undercoat
  • RAL - RAL finish
  • CUS - Custom finish

Downloads

  • Spec sheet
  • IES files
  • Photometric summary
  • Submittal drawing (DXF)
  • Submittal drawing (PDF)
  • Revit BIM model
  • Installation instructions
  • Download all
  • Estimated Lead-Time

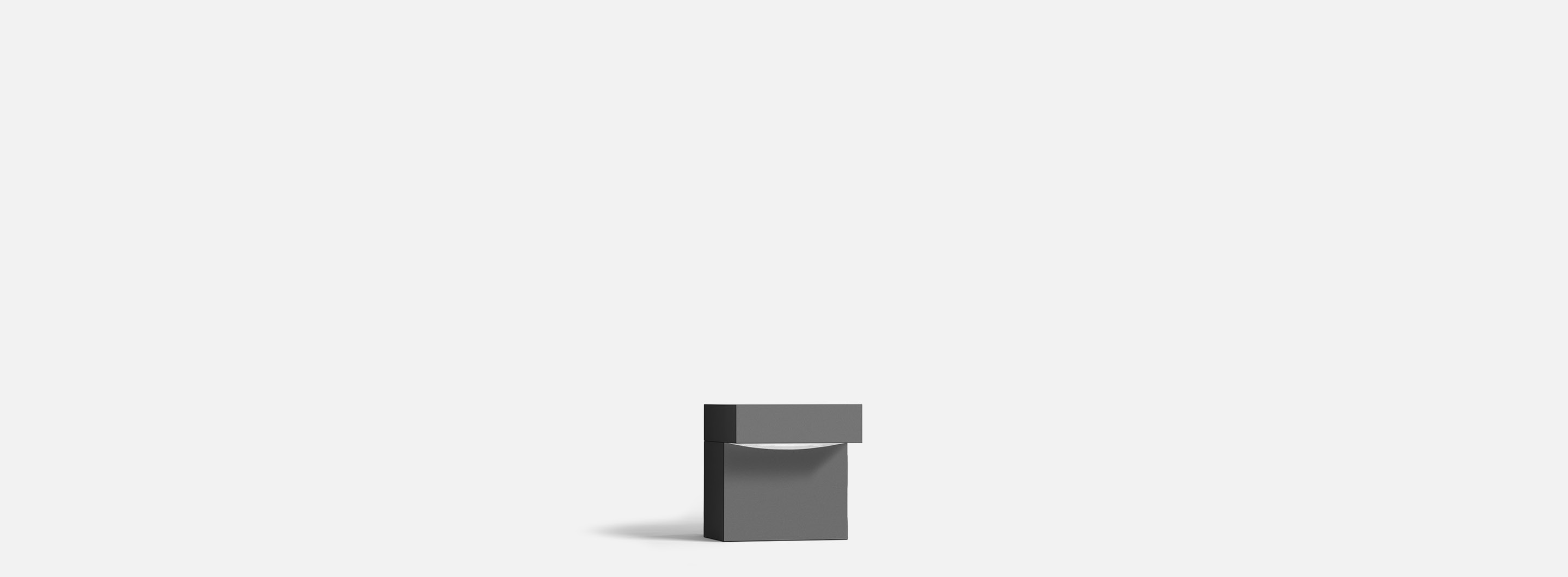

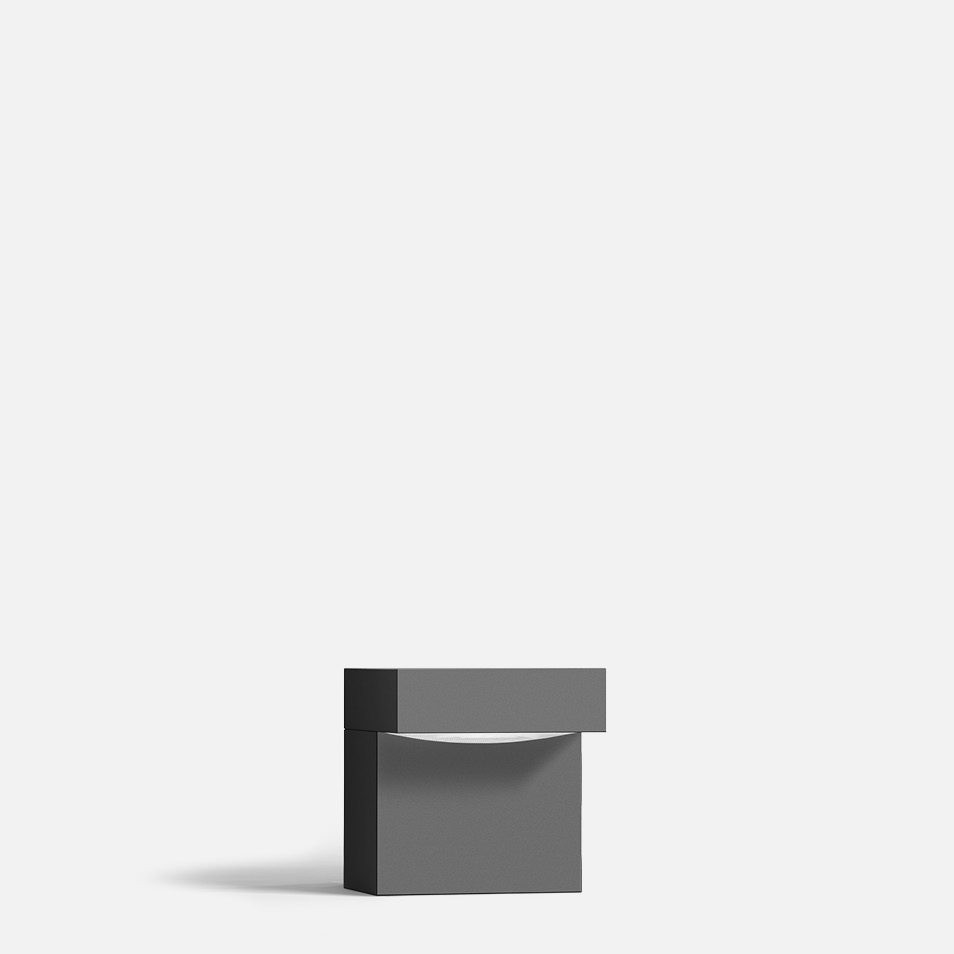

On-ground luminaire
Asymmetric

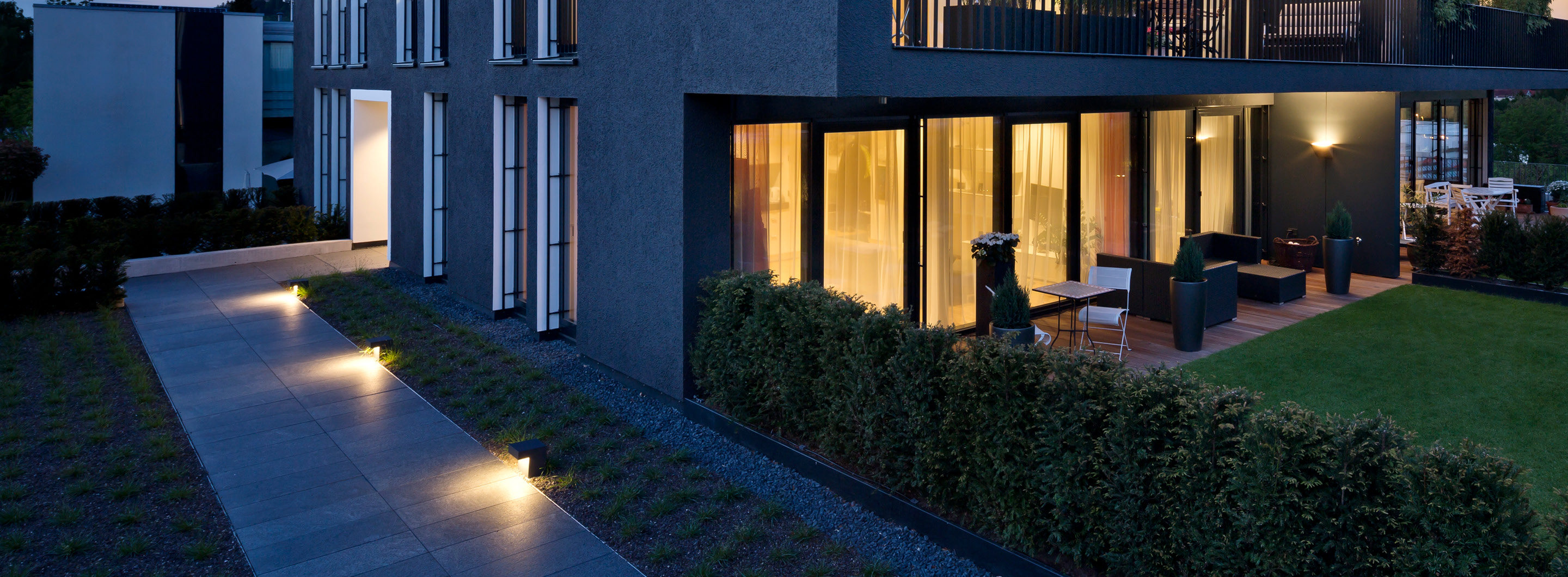

LED ground mounted luminaire for illuminating horizontal surfaces from low mounting heights. This luminaire is ideally suited for providing spatial illumination in squares, entrances and wide pathways in private and public areas. Provided with mounting system that allows the luminaire to be adjusted independent of anchor bolt orientation.
Die-cast and extruded aluminum · Safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
