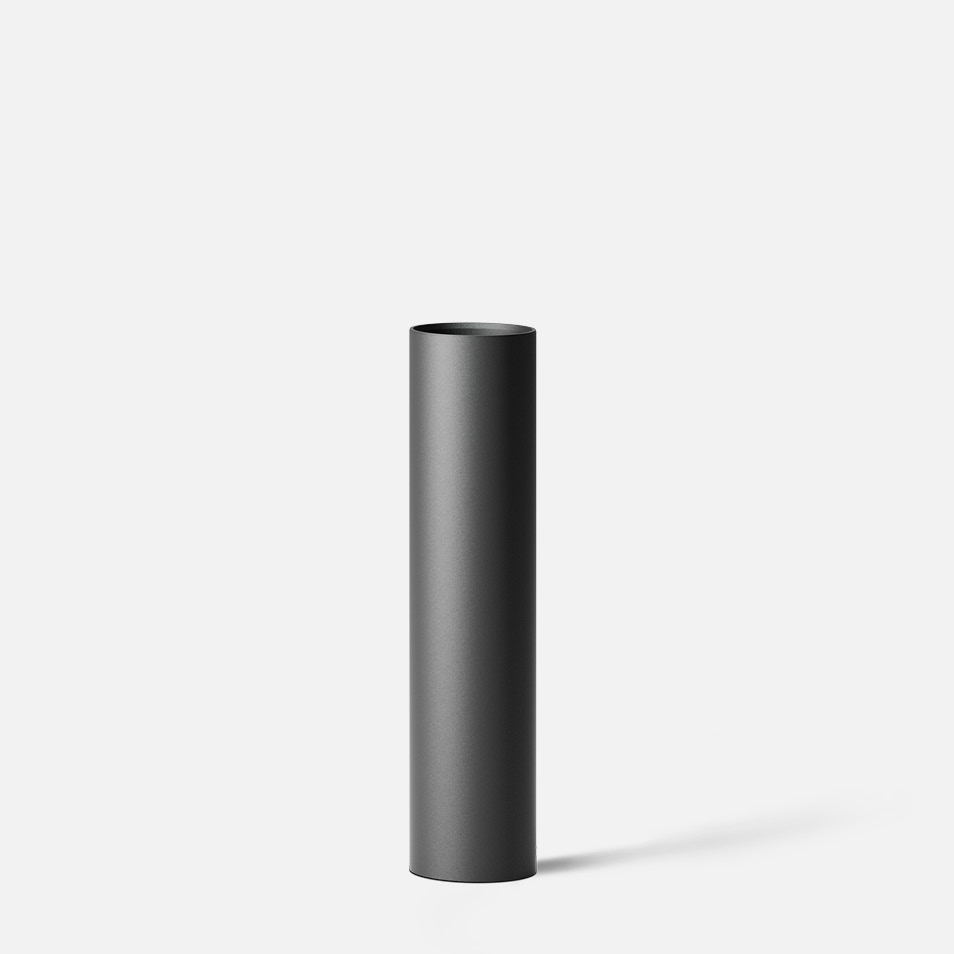

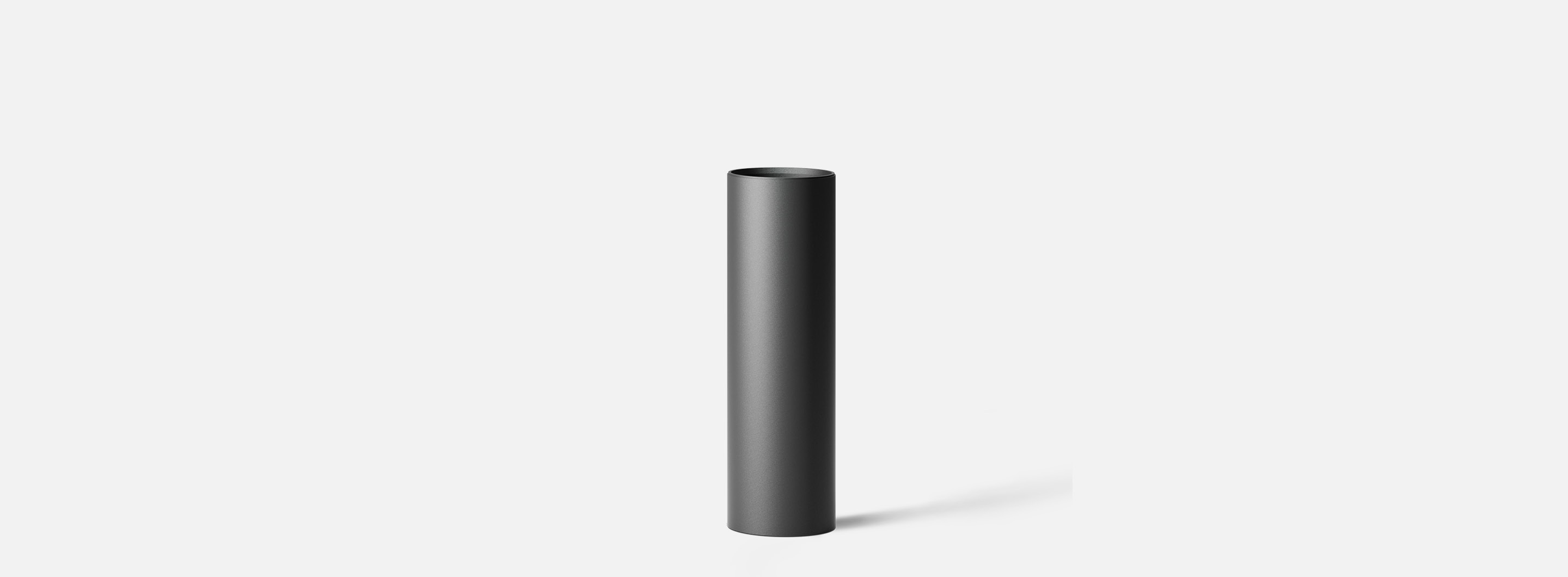

System bollard tube

Drive-through protection

						A	B
84 623						10 ⅜	34 ⅜

Options

MGU - Marine grade undercoat
RAL - RAL finish
CUS - Custom finish

Included (available for pre-shipment)

B96085 - Direct burial anchorage

Downloads

Spec sheet
Submittal drawing (DXF)
Submittal drawing (PDF)
Revit BIM model
Installation instructions
Estimated Lead-Time

Technical Specs

System bollard tube
Drive-through protection

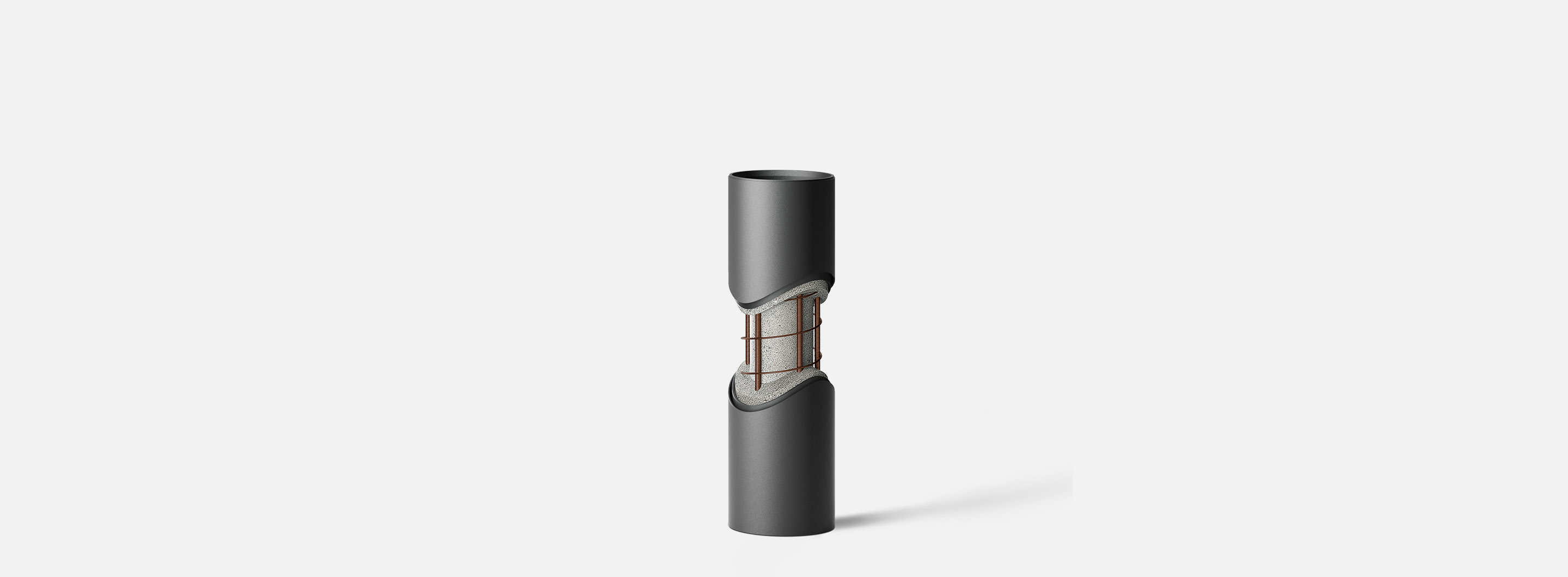

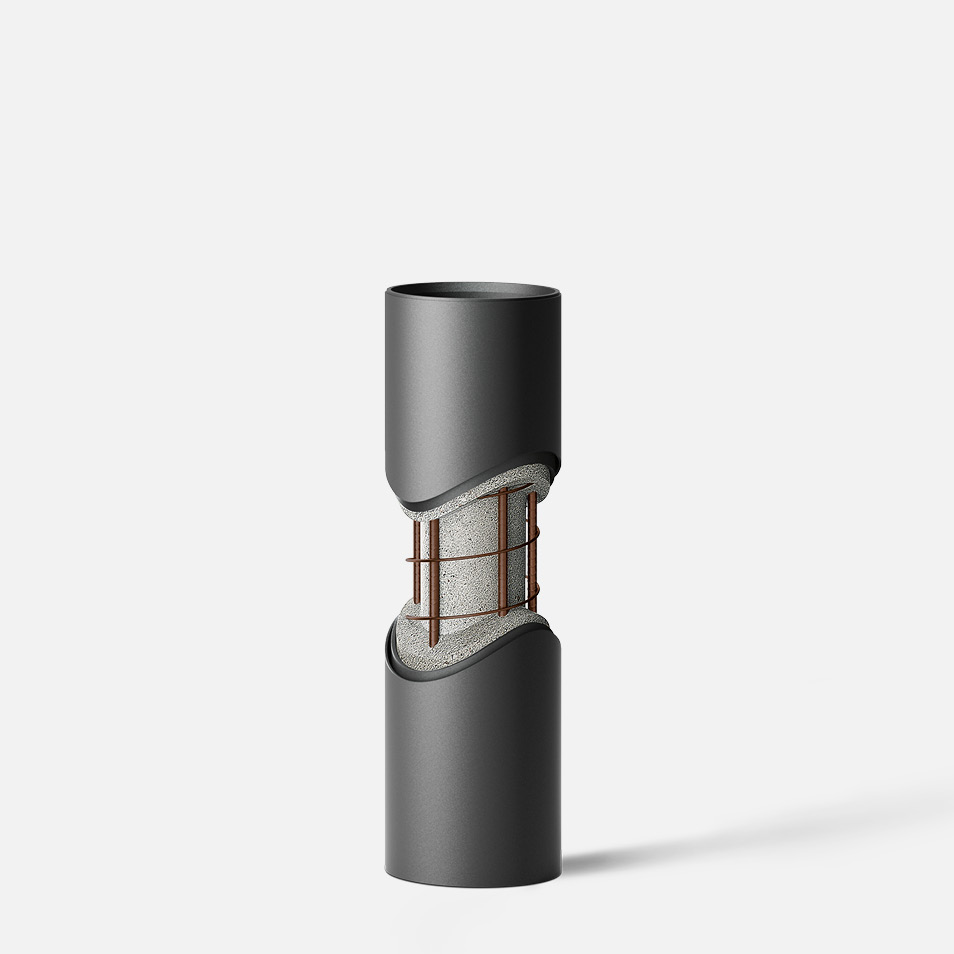

BEGA system bollard luminaire impact tube for vehicular drive-through protection. BEGA system bollard tubes are designed for easy attachment to system bollard heads using an interlocking mechanism. An accompanying bollard head must be selected for proper installation. The bollard tube and anchorage are designed for three different impact ratings depending on the corresponding foundation detail: Up to 1.5 metric tons at 6 mph, up to 1.5 metric tons a t 30 mph, or up to 7.5 metric tons at 30 mph (meets K4 requirements). Full scale concrete and rebar structural construction documents provided. Statics calculation and design based on PA68: 2013 British Standard and Europe IWA 14-1: 2013.

All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL and custom color finishes provided in either polyester powder or liquid paint.

NRTL listed to North American Standards, suitable for wet locations

IP 65
