Pole cap for multiple floodlights

for use with yoke mounted floodlights

2 floodlights

  A B
70 762 lm
22 ¼
7 ¾

3 floodlights

  A B
70 763 lm
69 ½
7 ¾

4 floodlights

  A B
70 764 lm
45
7 ¾

6 floodlights

  A B
70 766 lm
69 ½
7 ¾

Pole cap for multiple floodlights
for use with yoke mounted floodlights

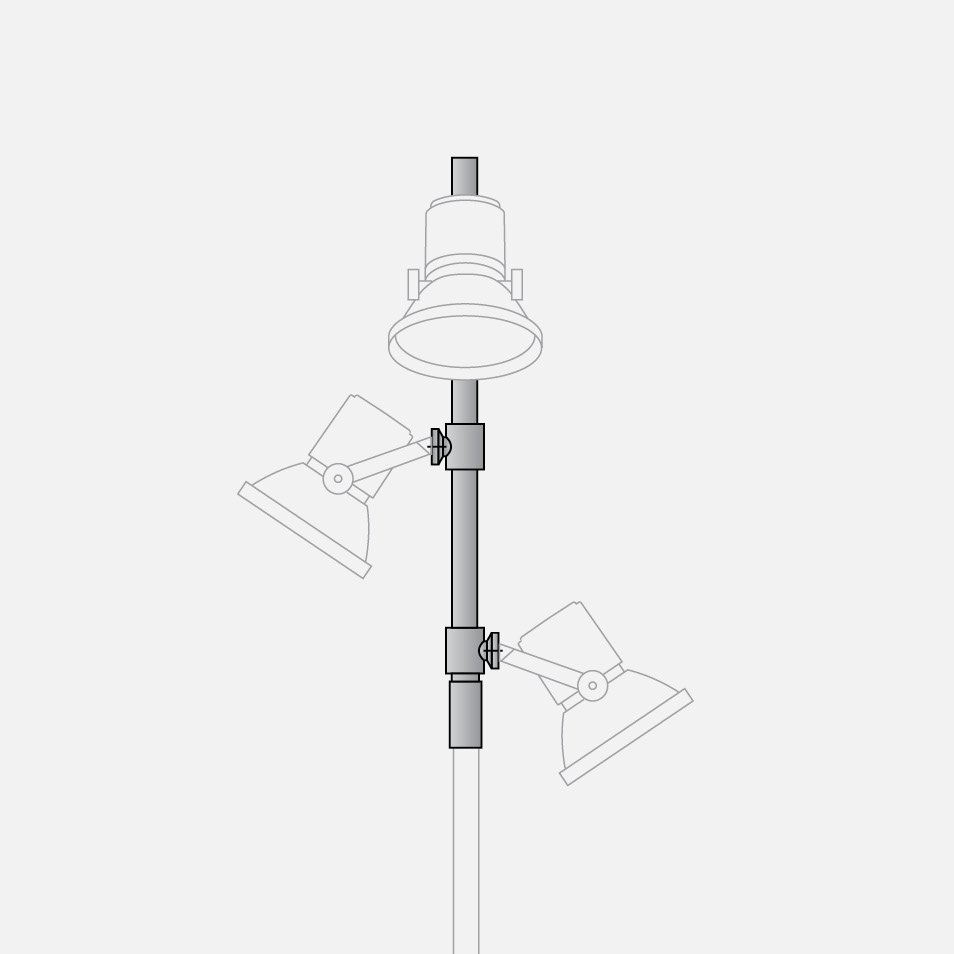

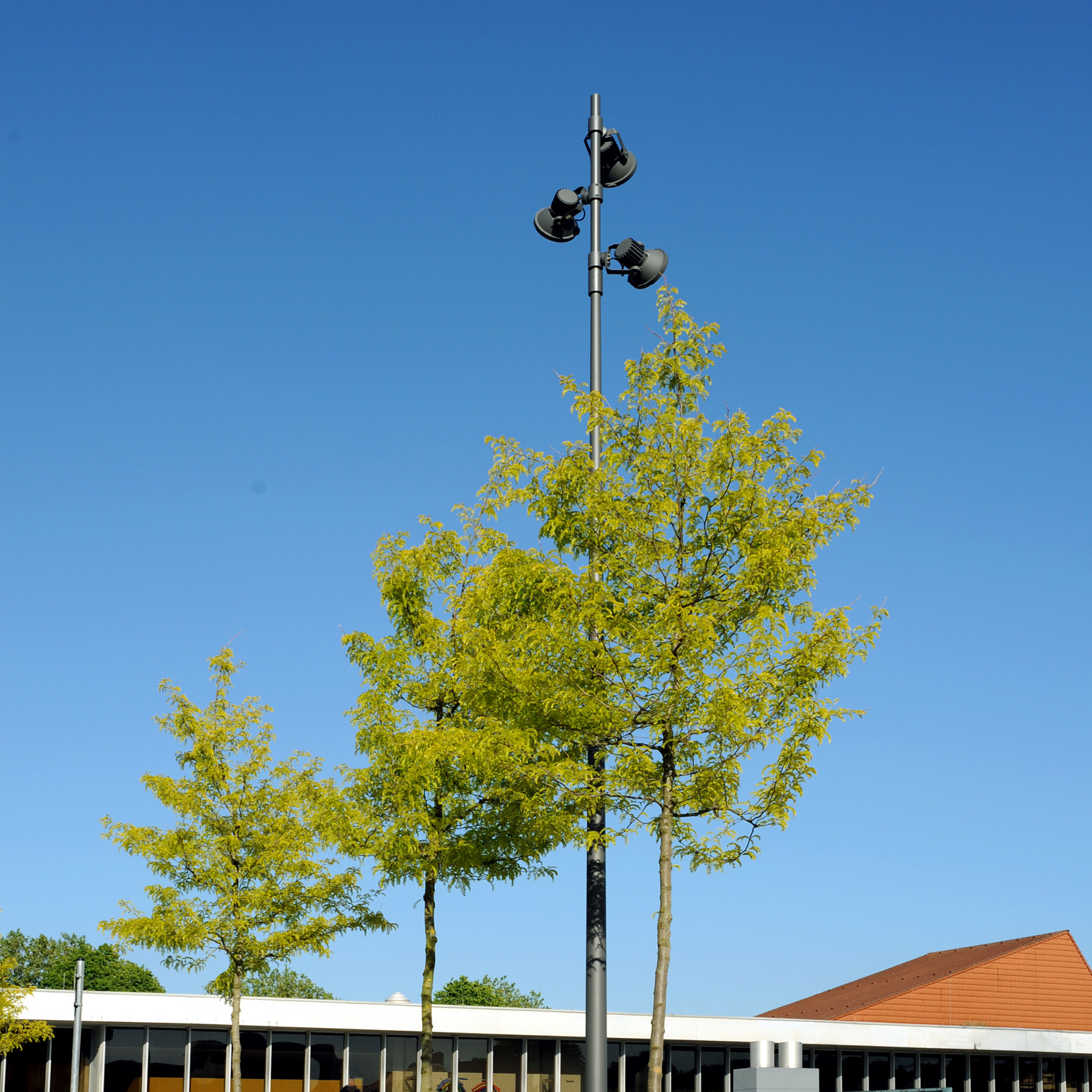

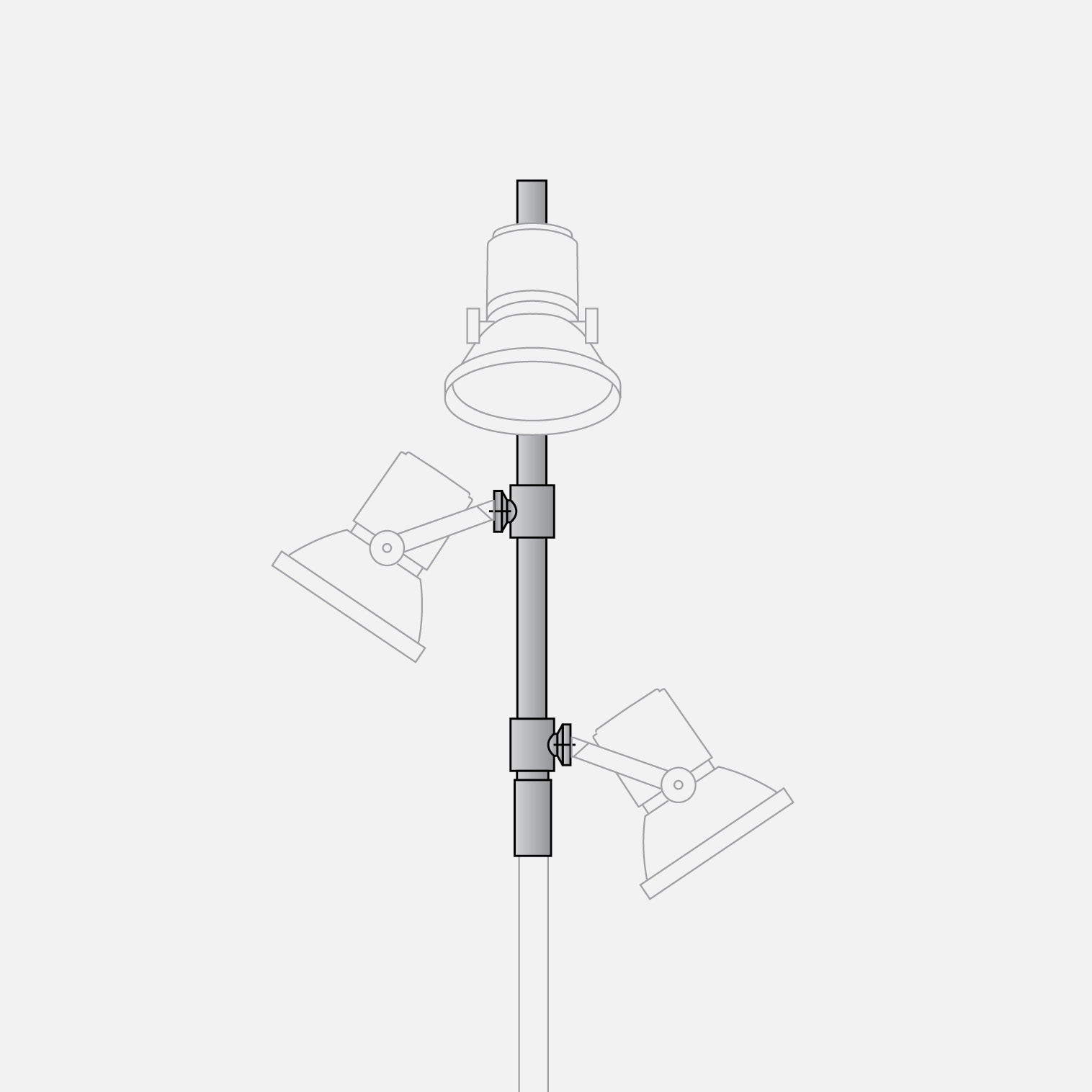

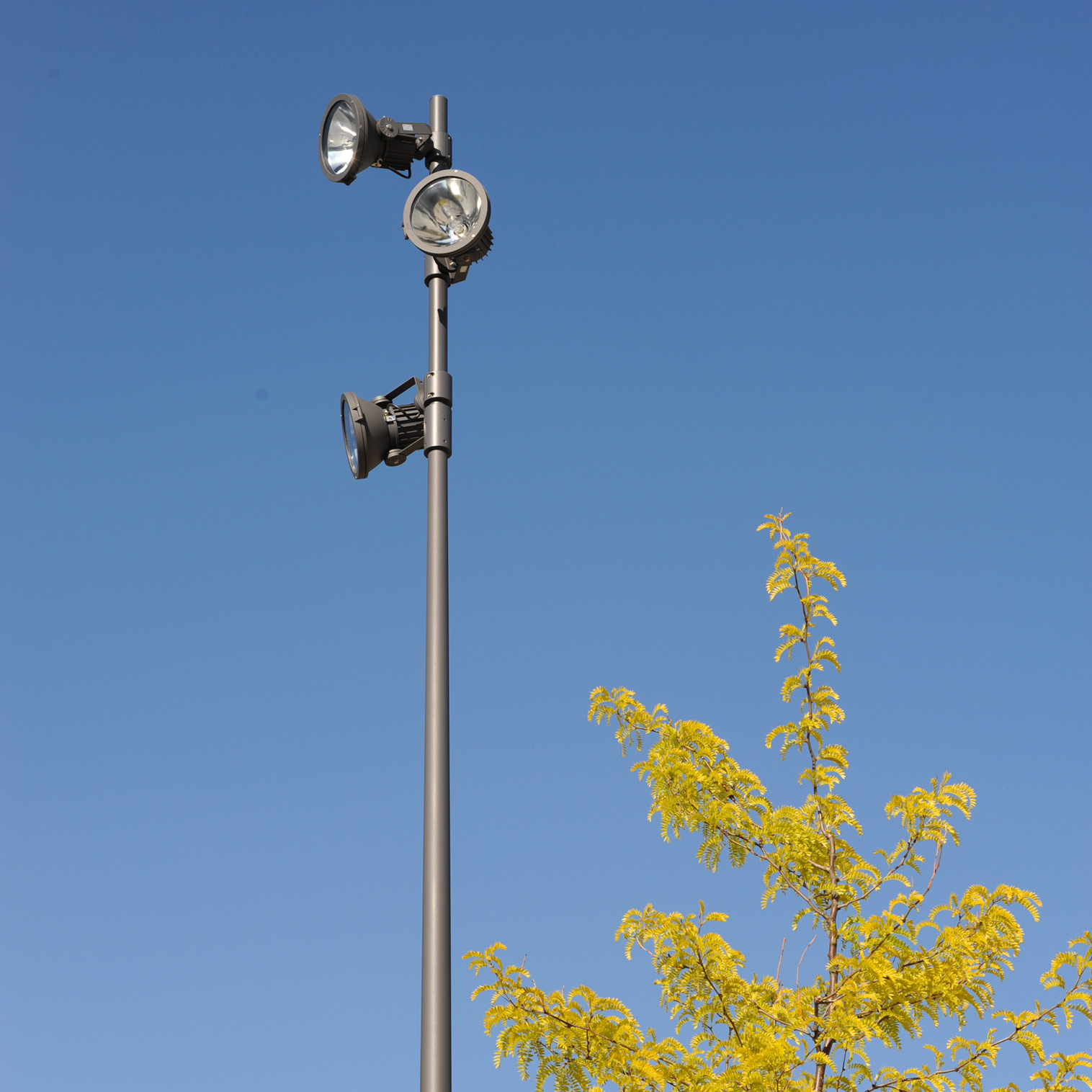

Multiple pole tops ready for installation for 2, 3, 4, or 6 yoke mounted floodlights.

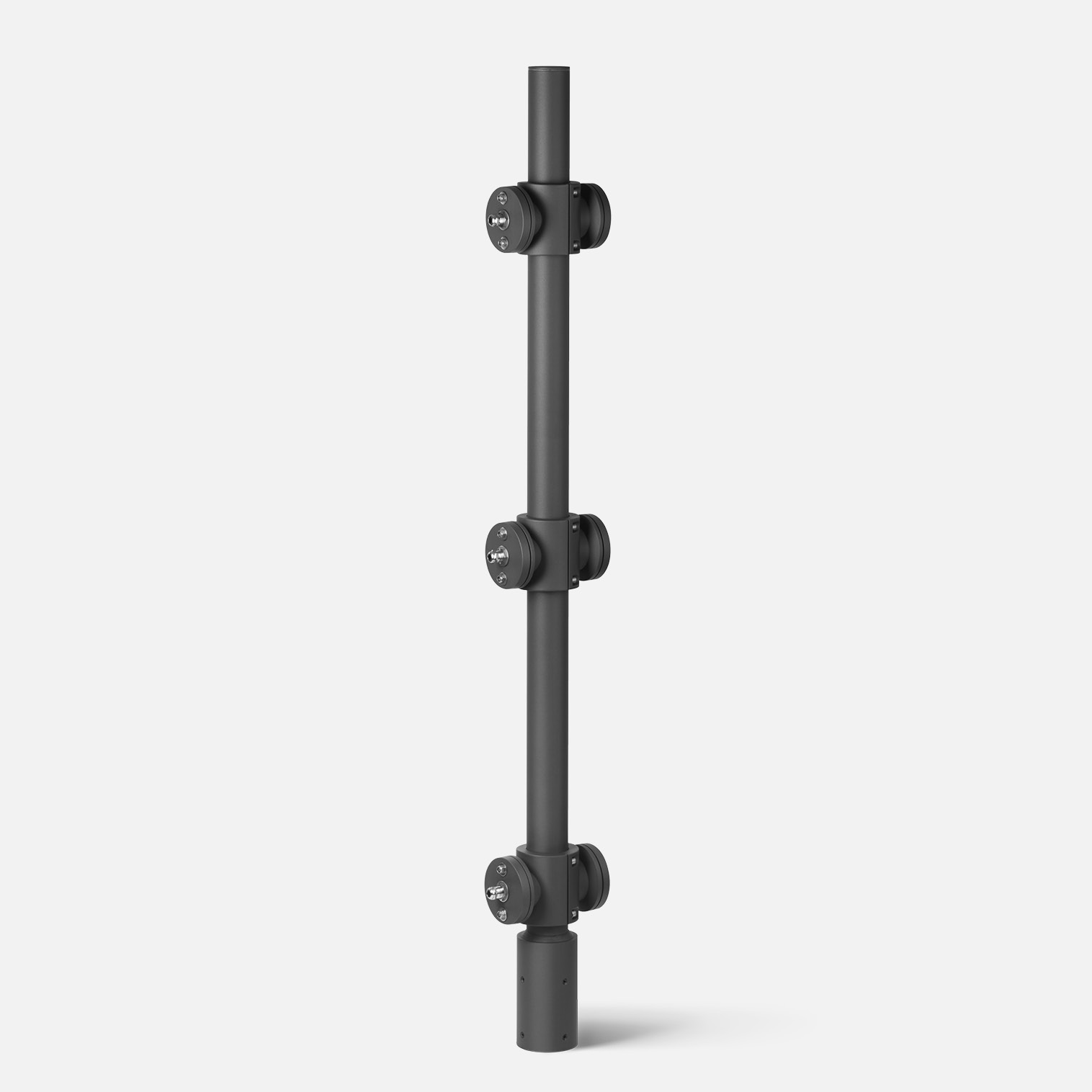

Pole top made of extruded and die cast aluminum. The pole top slip fits a 3" O.D. diameter pole and is secured to the pole by eight (8) stainless steel set screws. Cannot be used on standard BEGA poles with tenons, consult factory for custom pole options. Floodlights are attached to the cross beam with a rotatable, die cast aluminum, clamping plate with two M8 screws for attachment of the floodlight yoke.
Available in four standard BEGA colors: Black (BLK); White (WHT); Bronze (BRZ); Silver (SLV). To specify, add appropriate suffix to catalog number. Custom colors supplied on special order.
(not compatible with 1/2 nipple mount floods)
