Downlight

Symmetric

Narrow beam

  LED EXPRESS   β A B C
24 817 8.3W 1234 lm 21°
5
5
18
24 820 16.8W 2310 lm 21°
5
5
18
24 818 11.5W 1629 lm 16°
6
5
18
24 821 24.5W 3057 lm 16°
6
5
18
24 819 17.3W 2484 lm 20°
8 ½
5
18
24 822 36.0W 4683 lm 20°
8 ½
5
18

Wide beam

  LED EXPRESS   β A B C
24 823 8.3W 1221 lm 38°
5
5
18
24 826 16.8W 2277 lm 38°
5
5
18
24 824 11.5W 1619 lm 29°
6
5
18
24 827 24.5W 3039 lm 29°
6
5
18
24 825 17.3W 2421 lm 32°
8 ½
5
18
24 828 36.0W 4591 lm 32°
8 ½
5
18

Very wide beam

  LED   β A B C
24 829 8.3W 1155 lm 59°
5
5
18
24 832 16.8W 2168 lm 59°
5
5
18
24 830 11.5W 1647 lm 56°
6
5
18
24 833 24.5W 3050 lm 56°
6
5
18
24 831 17.3W 2646 lm 56°
8 ½
5
18
24 834 36.0W 4882 lm 56°
8 ½
5
18

Downlight
Symmetric

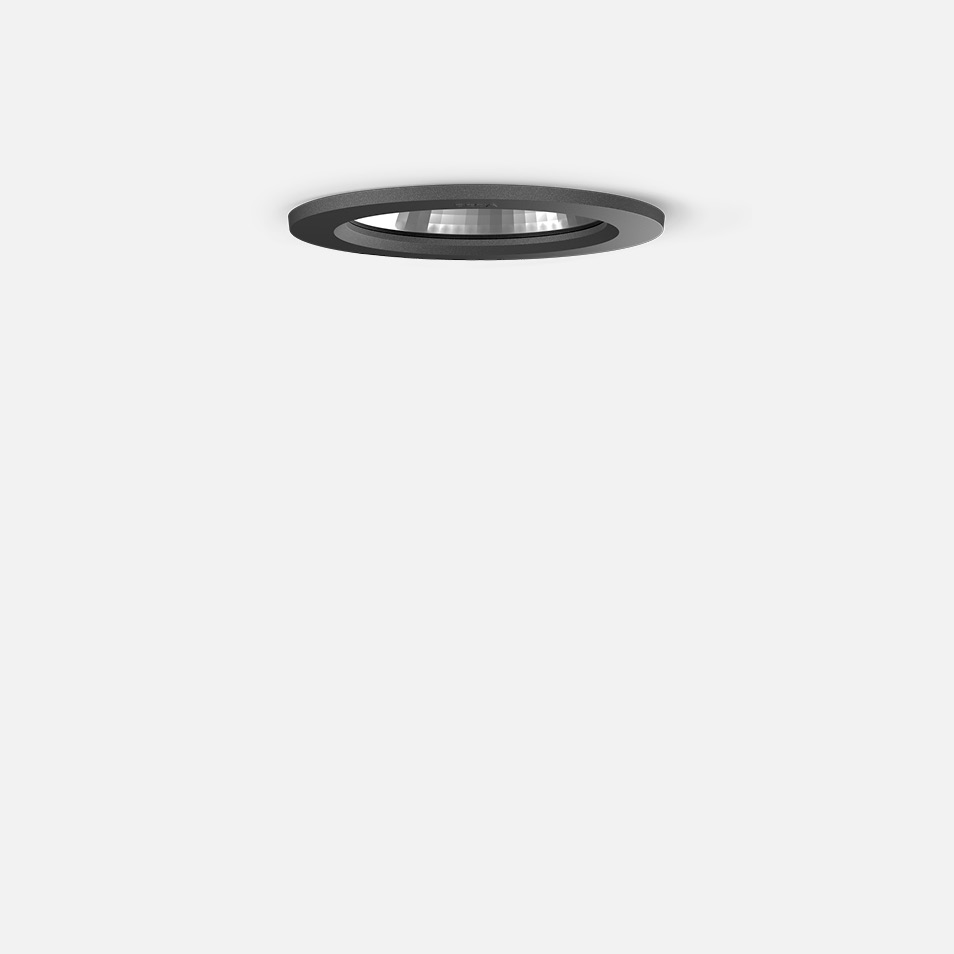

A new series of LED recessed ceiling mounted downlights available in a variety of housing sizes, light distributions, and light outputs. Interior silicone optic allows for superior light control. These luminaires are designed for down lighting atriums, canopies, passages and other interior and exterior locations featuring symmetrical narrow or wide beam distributions.
Die-cast aluminum housing and trim ring · Clear safety glass · Silicone optical lens · Reflector surface made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish, a fluoropolymer technology, provides superior fade protection in Black, Bronze, and Silver. BEGA standard White, as well as optionally available RAL and custom colors, are a polyester powder.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 65
