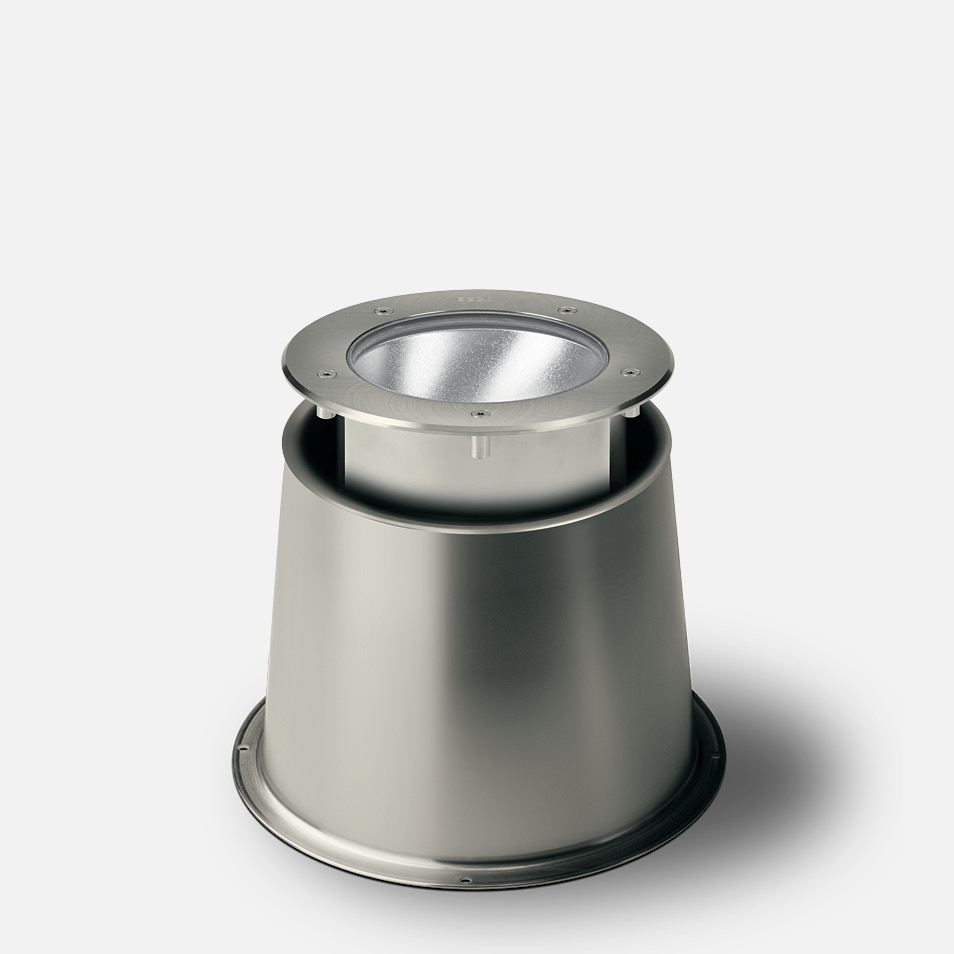

In-grade luminaire

Stainless steel housing

Asymmetric

  LED   β A B C
77 105 3.0W 399 lm 24x24°
5 ¾
10
6
77 106 10.5W 800 lm 28x29°
8
10
7 ½
77 107 13.9W 1915 lm 30x32°
9
12 ¼
8 ¼
77 116 36.2W 3349 lm 30x35°
13
16
10

In-grade luminaire
Stainless steel housing

In-grade floodlights asymmetric light distribution. These luminaires are designed to bear pressure loads up to 4400 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.
Stainless steel housing and faceplate · Clear safety glass · Reflectors made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
Brushed stainless steel. Custom colors are not available.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 68 10 m
