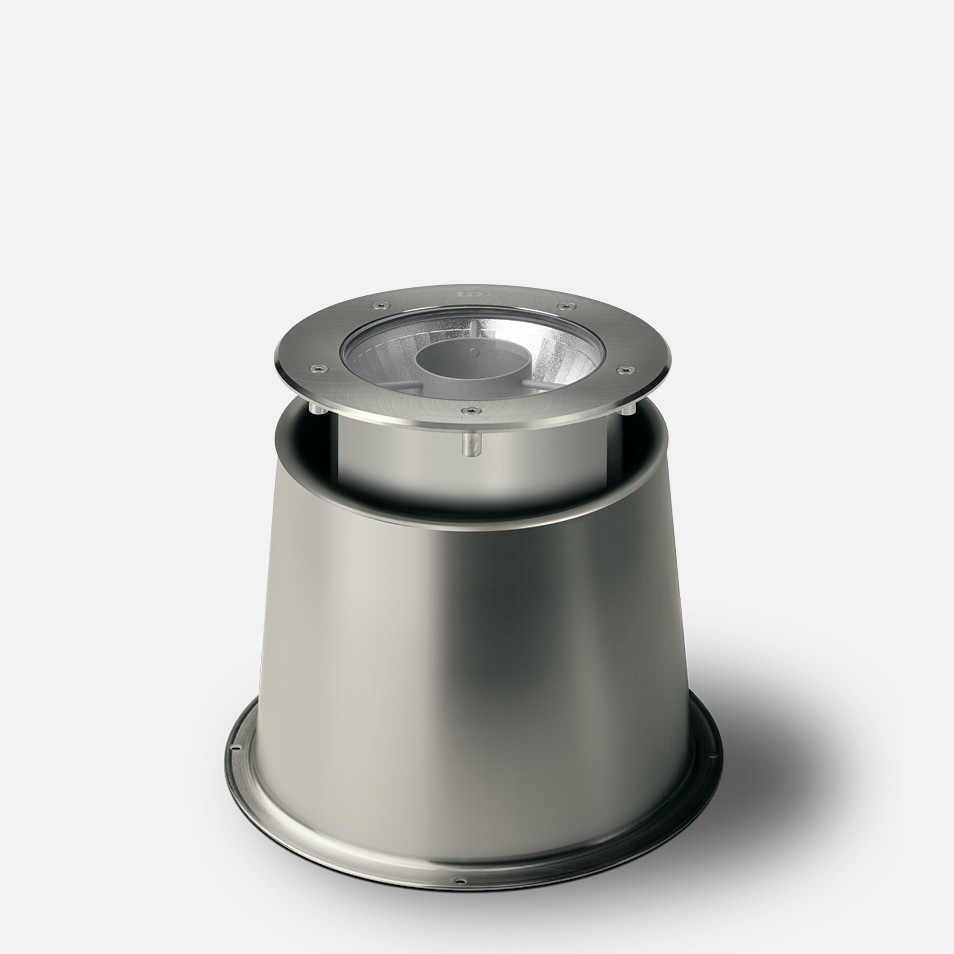

In-grade luminaire

Stainless steel housing

Symmetric

  LED   β A B C
77 006 8.2W 470 lm 17°
8
10
7 ½
77 007 13.9W 970 lm 16°
9
12 ¼
8 ¼
77 040 36.2W 1894 lm 19°
13
16
10

In-grade luminaire
Stainless steel housing

In-grade floodlights with symmetric light distribution. These luminaires are designed to bear pressure loads up to 4400 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.
Stainless steel housing and faceplate · Clear safety glass · Reflectors made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
Brushed stainless steel. Custom colors are not available.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 68 10 m
