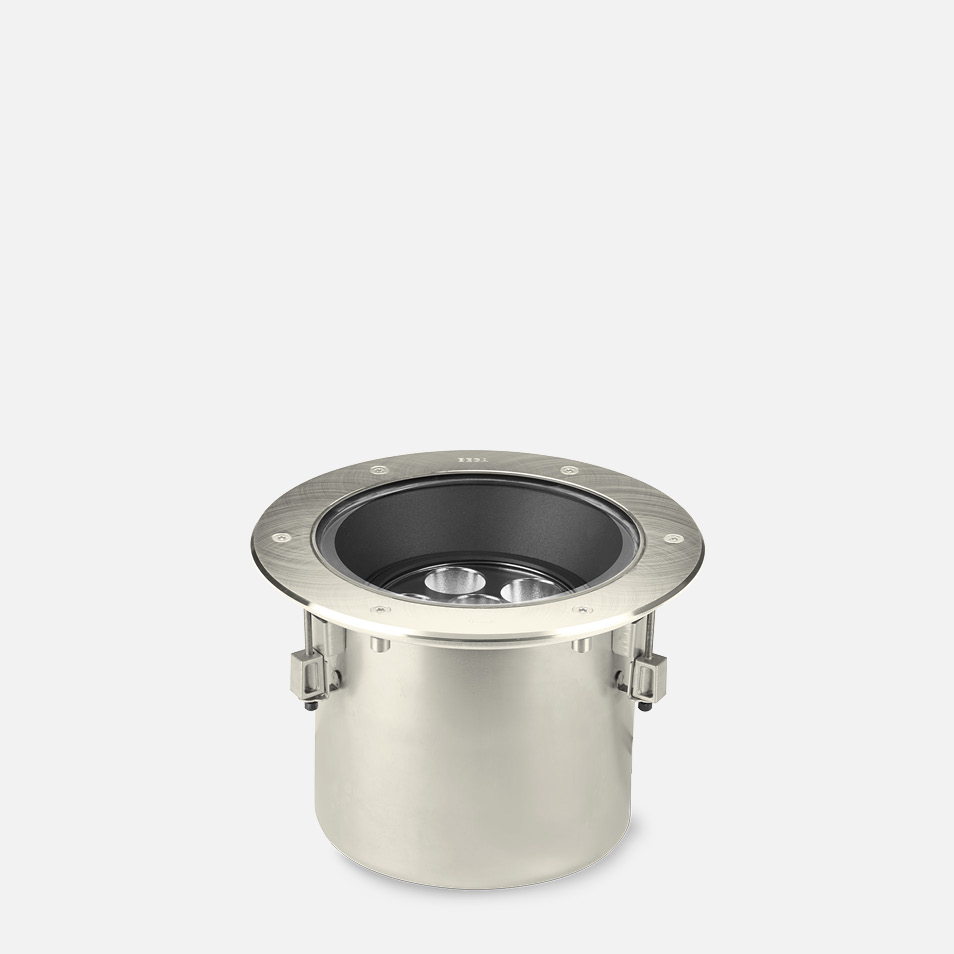

In-grade luminaire

Pre-cored hole

Adjustable

  LED   β A B C
77 066 6.5W 211 lm 33°
6
5 ¾
6
77 125 5.7W 568 lm 16°
8
7
6 ½
84 114 18.5W 1130 lm 9°
11
10
7 ¼
77 129 19.3W 950 lm 15°
11
10
7
77 130 17.2W 1391 lm 15°
12
11
9

In-grade luminaire
Pre-cored hole

In-grade floodlights with adjustable light distribution. The patented mounting system allows for installation in pre-cored holes such as stone, tile or decks. These luminaires are designed to bear pressure loads up to 4400 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.
Stainless steel housing and faceplate · Clear safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700K, 3000K, 3500K, 4000K
Brushed stainless steel. Custom colors are not available.
NRTL listed to North American standards - Suitable for wet locations - Protection class IP 68 10 m
